3. Tap the Help icon on the menu title for more information on these settings.
4. Tap outside the menu to close the menu.

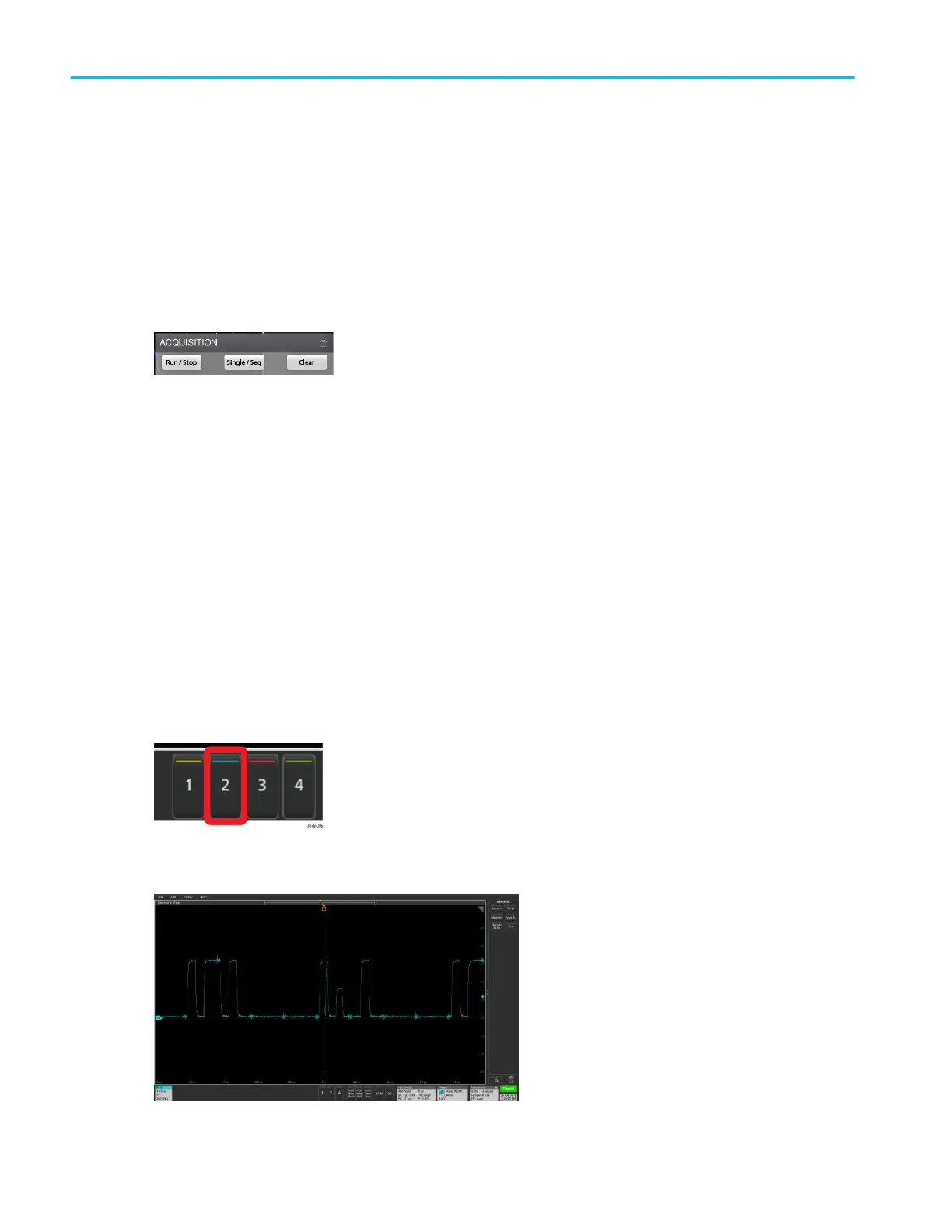

Start and stop an acquisition
Acquisition controls the start and stop of waveform acquisition.
1. To start an acquisition, double-tap the Acquisition badge and tap Run/Stop in the Acquisition configuration menu. You can
also push the Run/Stop button on the front panel.
2. To stop an acquisition, tap Run/Stop again or push the Run/Stop button.
3. To take a single acquisition, double-tap the Acquisition badge and tap Single/Seq in the Acquisition configuration menu, or
push the Single/Seq button on the front panel.
4. The color of the Run/Stop and Single/Seq buttons on the front panel indicate the acquisition status (green = acquiring, red
= stopped). The Trigger
5. To clear the current acquisition data from waveform memory, double-tap the Acquisition badge and tap Clear in the
Acquisition configuration menu, or push the Clear button on the front panel.
Add a channel waveform to the display
Use this procedure to add a channel signal to the Waveform View.
1. Connect signal(s) to the channel input(s).
2. Tap an Inactive Channel button (in the Settings bar) of a connected channel.
The selected channel is added to the Waveform View and a Channel badge is added to the Settings bar.
Analog channel operating basics
88 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
