If, Rel[k] < 0 & Im[k] > 0 Phase[k] = Phase[k] + π
■

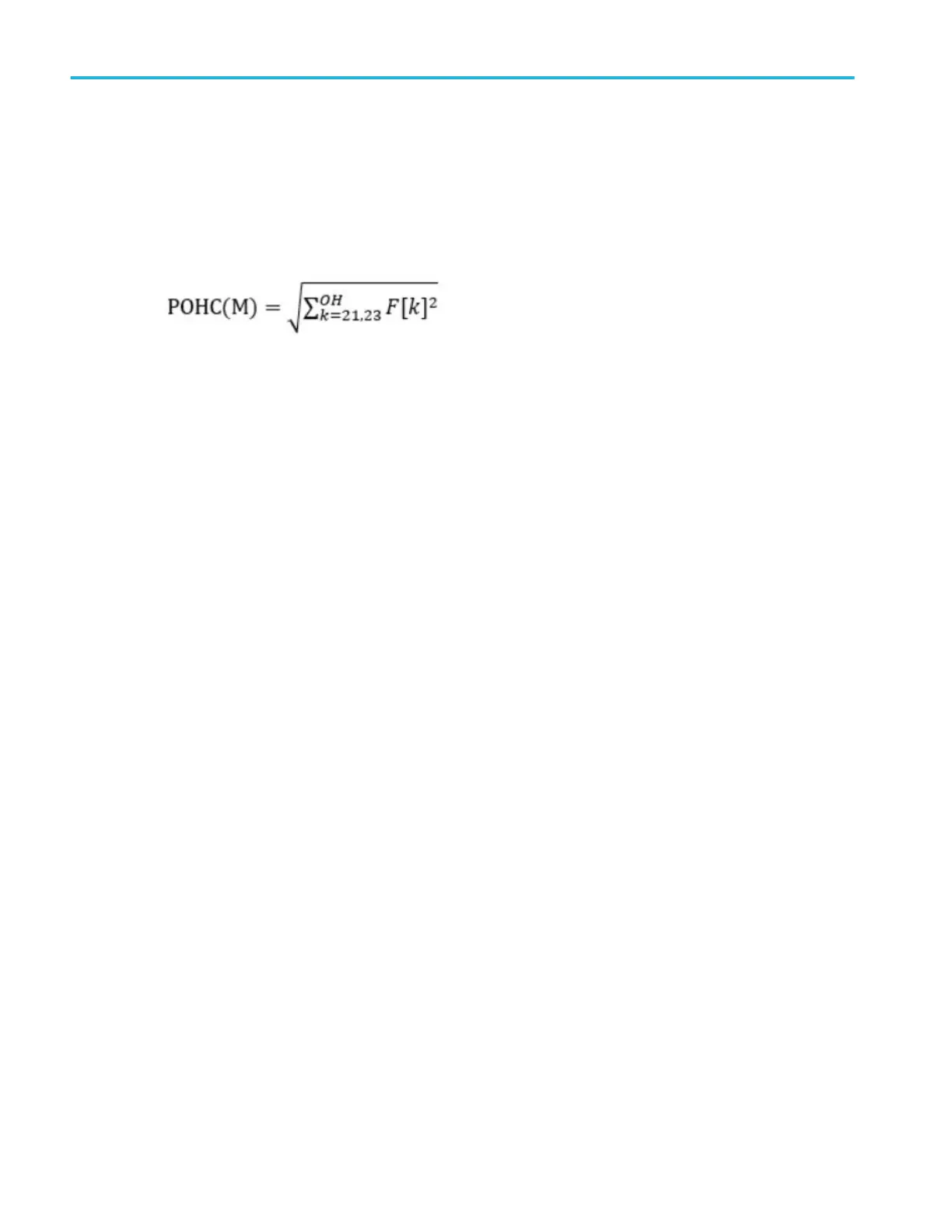

Partial Odd Harmonics Current (POHC(M)):
For the 21st standard higher odd order harmonics, the average values obtained for each individual odd harmonic over the
full observation period, are calculated from the acquired waveform. The measured partial odd harmonic current does not
exceed the partial odd harmonic current which can be calculated from the applicable limits.
Where:
M is the measured value.
POHC(S) and POHC(L) is the (S) is pass and fail status based on (L) limits.
Input Capacitance algorithm. Input capacitance measures the input capacitance of a DUT using the input voltage and current
signals. Supports annotation where you can navigate between Previous and Next regions from the Results badge.
The equation for input capacitance is c = q/v. where:
■
c - capacitance in farads
■
q - accumulated charge, which is the integration of the current waveform
■
v - peak-peak voltage
Inrush Current algorithm. Inrush Current measures the peak value of the inrush current of the DUT. It is a single source current
measurement. Supports annotation where you can navigate between Previous and Next regions from the Results badge.
Amplitude analysis measurement algorithms
Cycle Base measurement algorithm. Cycle Base is calculated using the selected Base Top method. Cycle Base is the most
common data value below the midpoint of the waveform, when the default Base Top method Histogram Mode is selected. This
measurement is made across each cycle in the record.
Cycle Maximum measurement algorithm. Cycle Maximum is the maximum data point. Typically the most positive peak
voltage.
Measurements are calculated on each cycle within the record.
Cycle Minimum measurement algorithm. Cycle Minimum is the minimum data point. Typically the most negative peak voltage.
Measurements are calculated on each cycle within the record.
Cycle Pea-to-Peak measurement algorithm. Cycle Peak to peak is the difference between Cycle Maximum and Cycle
Minimum calculated for each cycle.
PeaktoPeak = Max – Min
Measurements are calculated on each cycle within the record.
Cycle Top measurement algorithm. Cycle Top is calculated using the selected Base Top method. Cycle Top is the most
common data value above the midpoint of the waveform, when the default Base Top method Histogram Mode is selected. This
measurement is made across each cycle in the record.
Cycle Amplitude measurement algorithm. Cycle Amplitude is the difference between the Top value and the Base value. This
is applicable for each cycle.
Cycle Amplitude = Top - Base
Measurement algorithms
466 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
