File operations and Microsoft Windows 10 Operating System SSD. Instruments with Windows 10 SSD will display the
standard Windows file tools to navigate to and select files and folders.
The Windows operating system assigns the first available drive letter (typically E:) to the first USB device attached to the
oscilloscope, regardless of which port the USB device is plugged into. The next plugged-in USB device is assigned the next
available drive letter (such as F:) and so on for other installed devices. This is different from standard instruments (without
Windows 10 installed), which assign a non-changing drive letter to each USB port.
Recall file configuration menu (SOA mask file).

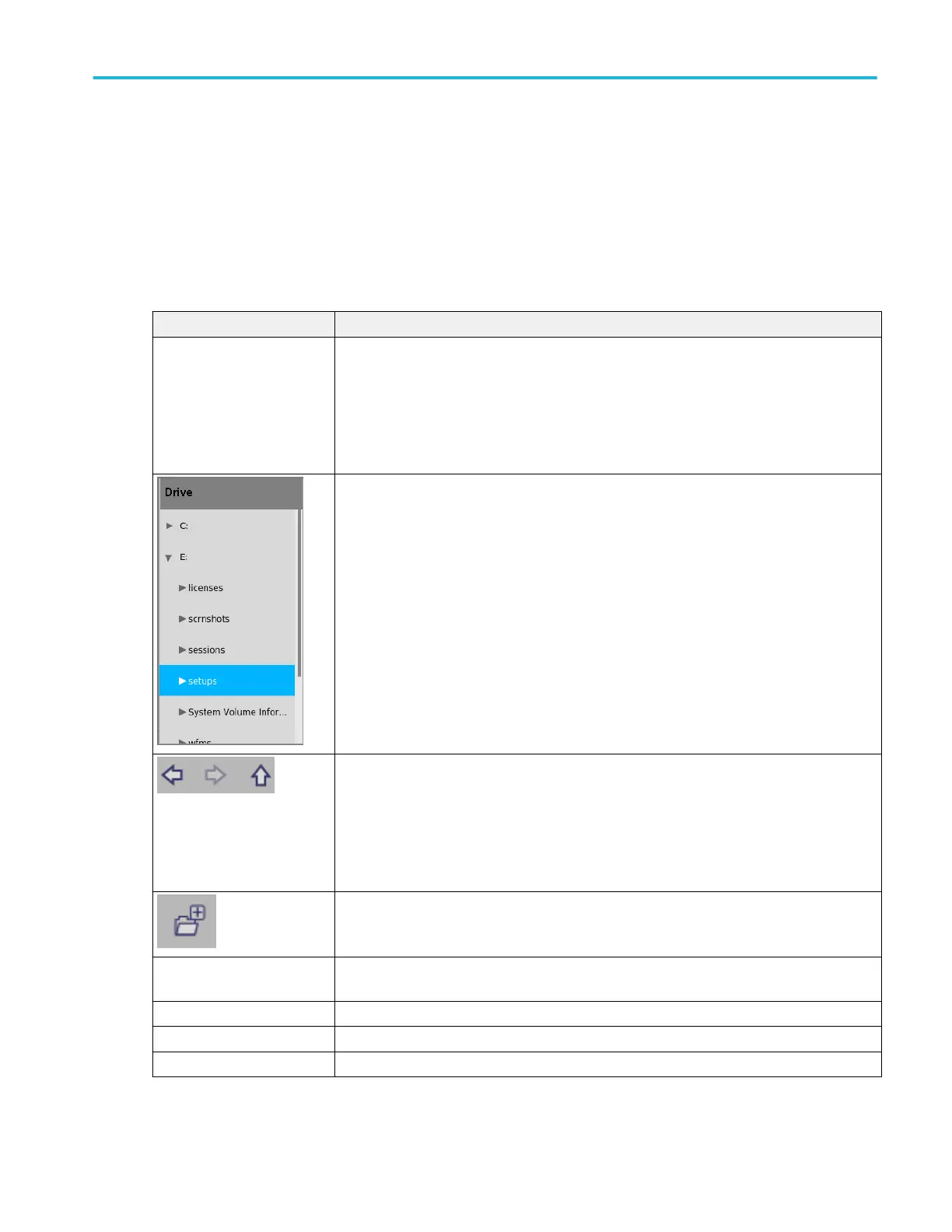

Field or control Description
Look in: Shows the current directory path to the location of a file.
Tap on the file path and use a keyboard to enter a new save location. Or double-tap on the file
name to open the virtual keyboard and enter a path.
Tap the down arrow icon on the right end of the field to open a list of recent file save locations,
up to a maximum of 20 locations.
The Drive column lists the directory structure, opening at the root (/) level. Use to quickly
navigate to a location.
Tap to list the contents of the directory in the Name pane.
Double-tap an item to display the directory and any subdirectories under it. Double-tap again to
close that directory structure.
Drag the list up and down to show more entries.
Use the arrow buttons to navigate the file directory.
The left arrow navigates back to the previously visited folder.
The Right arrow navigates forward to the previously visited folder.
The Up arrow navigates up one level from the current folder.
Use to create a new directory (folder) at the current location. Opens the new directory after it is
created.
File name Lists the selected file name to recall. Tap on the file name in the Name column to add it to this
field.
Files of type The SOA mask file type (.pwrmsk) cannot be changed.
Cancel Cancels the file recall action and closes the menu.
Recall Recalls the selected SOA mask file and plots it on the SOA Plot view.
