The Min' and Max' navigation buttons center the waveform in the display at the minimum or maximum value for that
measurement in the current acquisition.
The prime symbol (') shown on measurement readings and Min/Max buttons indicates that the value shown (or moved to in the
case of Min/Max buttons and waveforms) is from the current acquisition. Lack of a prime symbol means the value is from all
acquisitions.
Measurement badges are listed in the order created, starting at the top of the Results bar. Deleting a Measurement badge does
not change the order or names of the remaining badges.
You can drag Measurement badges to change their position in the Results bar, or drag them into the Trash Can icon to delete
them.
Search badges

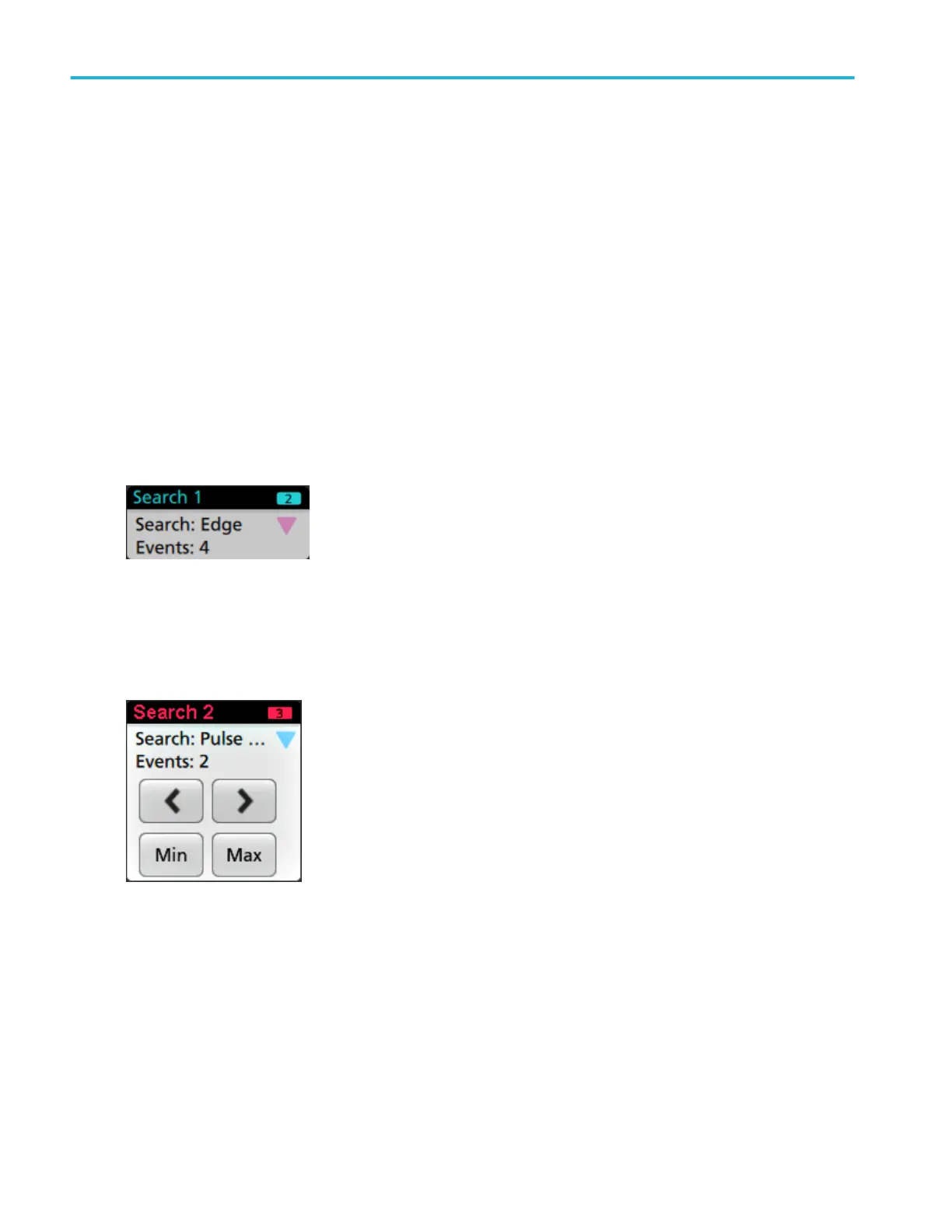

Search badges are also shown in the Results Bar, below the Measurement badges. A search badge lists the search source,
search type, and the number of search event occurrences in the current acquisition. The instrument marks the waveform where
those events occur with small down-pointing triangles along the top of the waveform graticule. Double-tap a search badge to
open its configuration menu to change or refine search settings.
Search badges are created by tapping the Add New... Search button. Use the displayed configuration menu to set the search
criteria.
Search badges have < (Previous) and > (Next) Navigation buttons that open the Zoom mode and center the waveform in the
display at the position of the previous or next search mark in the waveform record. Search badge Navigation buttons are only
usable when the oscilloscope is in single acquisition mode. Single-tap a badge to close the Navigation buttons.
Some searches also provide Min and Max navigation buttons that open the Zoom mode and center the waveform in the display
at the minimum or maximum value for that search event in the current acquisition.
Search badges are listed in the order created. Deleting a Search badge does not change the order or names of the remaining
badges.
You can drag Search badges to change their position in the Results bar, or drag them into the Trash Can icon to delete them.
Getting acquainted with your instrument
54 MSO54, MSO56, MSO58, MSO58LP, MSO64 Help
