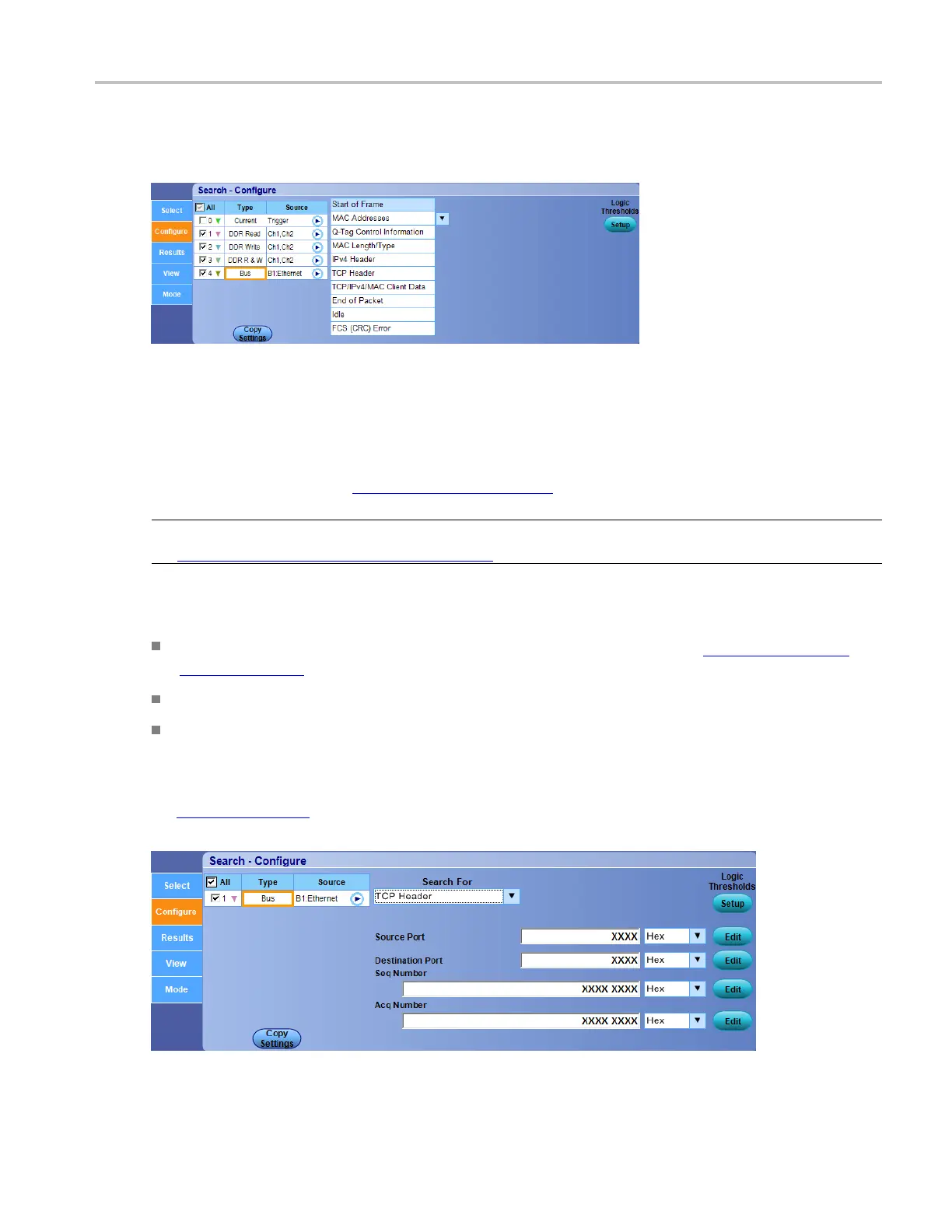

Analyzing waveforms Set up Ethernet s earch parameters
To use
For information o n the controls, click the buttons.
Behavior
Clicking an entry in the Type column activates the individual search controls, similar to the one shown
above. These controls vary depending on the search Type. Setting the search conditions is similar to
setting the parameters for an Event Trigger
(see page 386).
NOTE. No information will be displayed in this window until you specify at least one search Type in
the Search Select Control Window
(see page 300).
To use
Click the Source box and select the bus number or name from the window. Bus Search Selection
List (see page 98)
Select the type of bus cycle o r activity to search for from the Search For drop-down list.
For some Search For selections, you must set additional fields to define other parameters such as
for Command Word.
In this example, you need to enter a Source Port, Destination Port, Seq Number, and Acq Number (click
the Edit
(see page 939) button). Optionally, you can a lso set the component threshold levels through the
Logic Thresholds Setup button.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 361
