Tektronix MSO70000C/DX User Manual

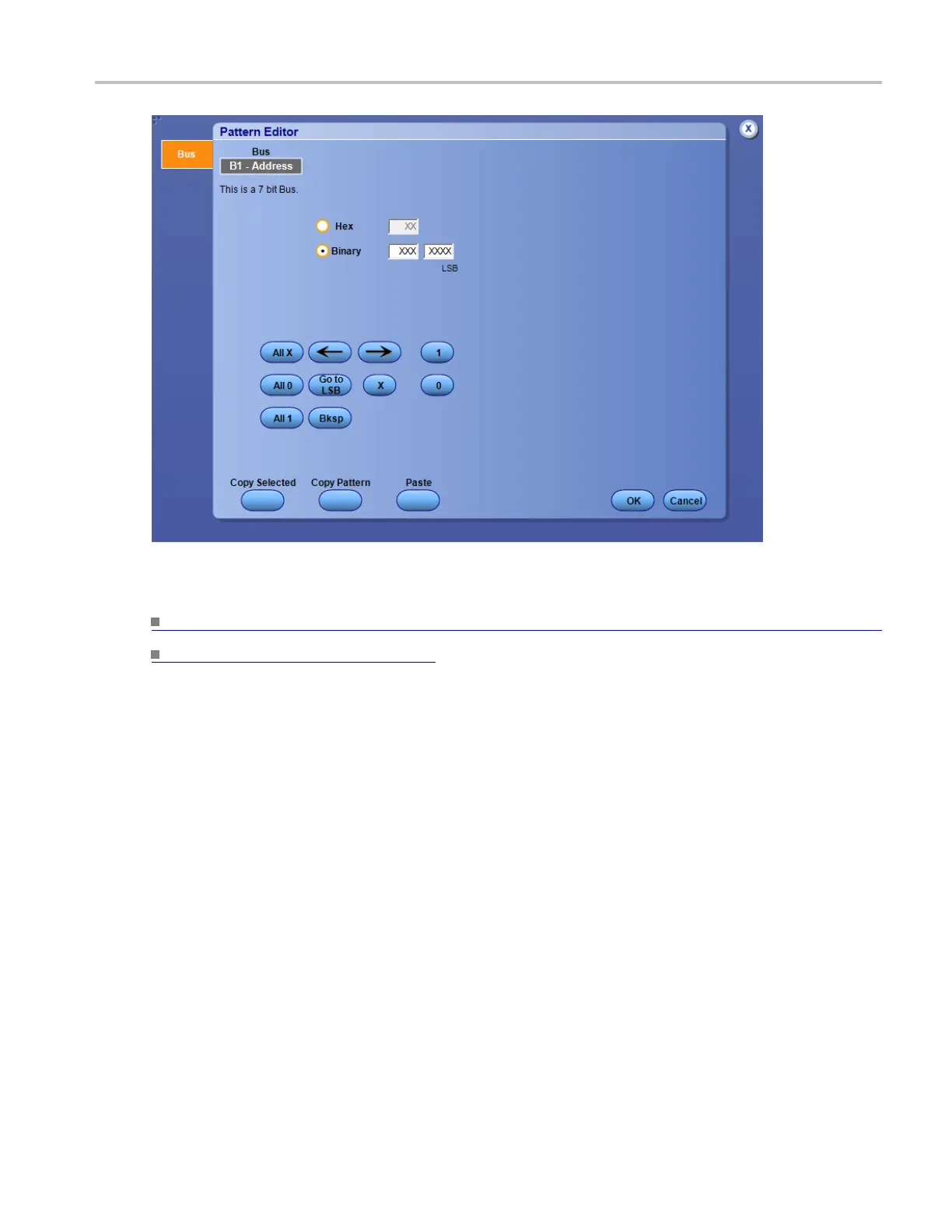

Oscilloscope Reference Bus Pattern Editor (Bus tab)
What do you want to do next?
Learn how to set the voltage threshold level for logic waveforms and to define a pattern. (see page 944)
Learn about bus setups. (see page 95)
Bus Pa
ttern Editor (Bus tab)
Use t
he Pattern Editor controls to set up the bus trigger pattern for the instrument as follows:
