Oscilloscope Reference Set the logic thresholds
Set the logic thresholds
NOTE. The Logic Threshold Setup option is available only on MSO5000 and MSO70000C Series
instruments
and DPO5000 Series instruments with option MSOE installed.

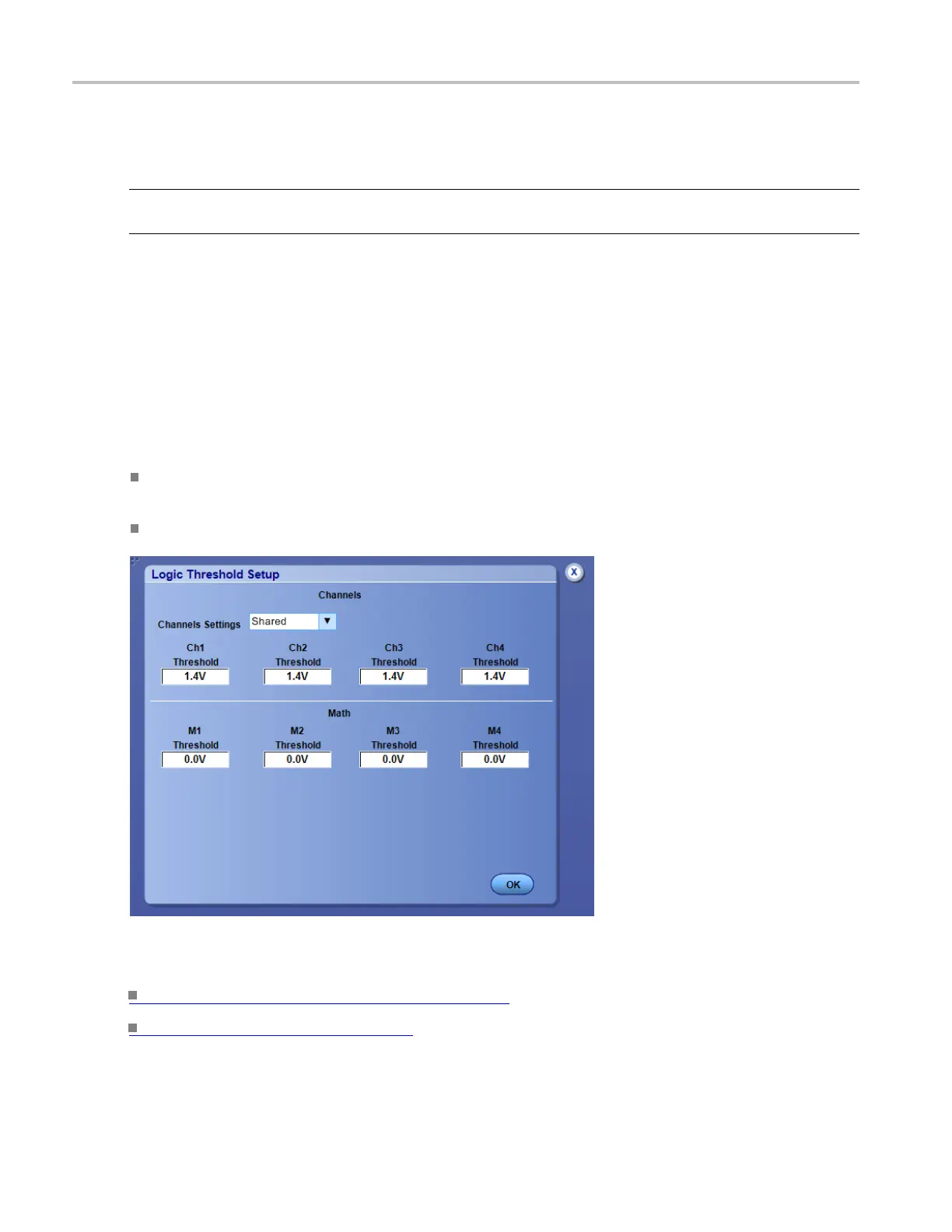

Select the Vertical Setup or the Math Setup menu, and then click the Logic Properties button.
Overview
Use this control window to specify the voltage threshold level of the Ch1-Ch4 (live) and the M1-M4
(math) ch
annels to use as logic waveforms and to include in a bus.
To use
Click the Threshold entry box for the desired channel and use the keypad to enter a value or use
the multipurpose knobs to select a voltage level.
Click the OK button.
What do you want to do next?
Learn about the digital channel setup. (see page 87)
Learn about bus setups. (see page 95)
808 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
