HD3G7 HD 3 Gb/s SDI Video Generator module
HD3G7 module
AUDIO (EMBEDDED)
submenu
Use this menu to
select the audio group. For HD-SDI and 3G Level A mapping,
you may select audio group 1, 2, 3, or 4. For 3G Level B mapping, you may
select audio group 1, 2, 3, or 4 for both Link A and Link B. Press the left (◄)or
right (►) arrow button to make the selection. When the desired audio group and
Link are displayed, press the Enter button to access the menu for that group.
In each group you can enable or disable the embedded audio, select a specific
channel, and set the sampling mode. Use the up (▲)ordown(▼) arrow button
to change the menu items. Press the ENTER button to select a specific channel.
While in th
e Audio Channel submenu, you can set the embedded audio frequency,
amplitude, and click rate for the channel. The following figure shows the AUDIO

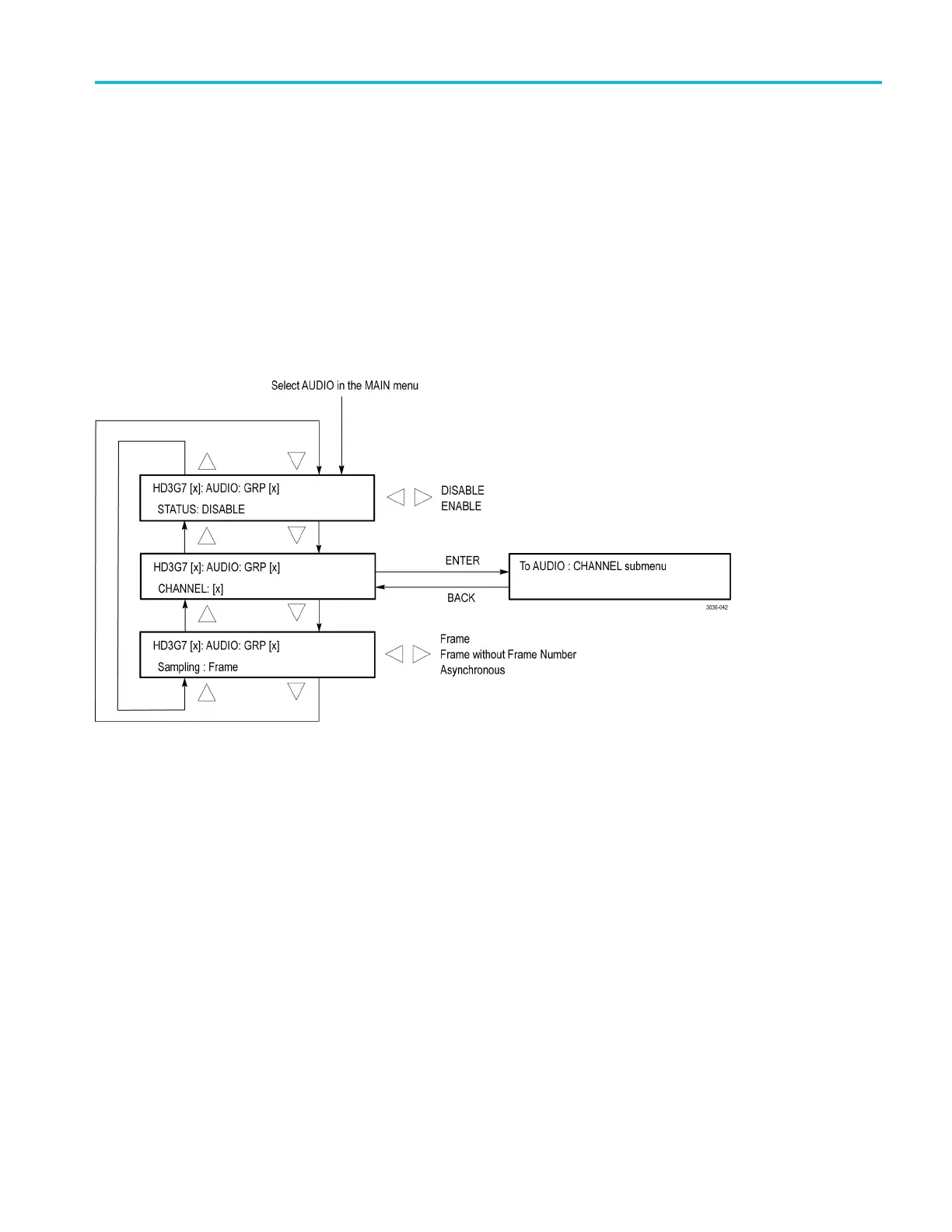

(EMBEDDED) Audio Group submenu. (See Figure 3-88.)
Fig
ure 3-88: HD3G7 module AUDIO (EMBEDDED) submenu
TG8000 Multiformat Test Signal Generator User Manual 3–193
To Next Page
