Appendix C: Probe Compensation and Compatible Maximum Voltages

11. Select Continu

e and instrument will respond that the compensation is

complete and the compensation sig nal will be removed. Automatic DC

compensation is only possible for 10:1 voltage probes.

NOTE. During compensation you should not touch the probe.

12. Select Close.

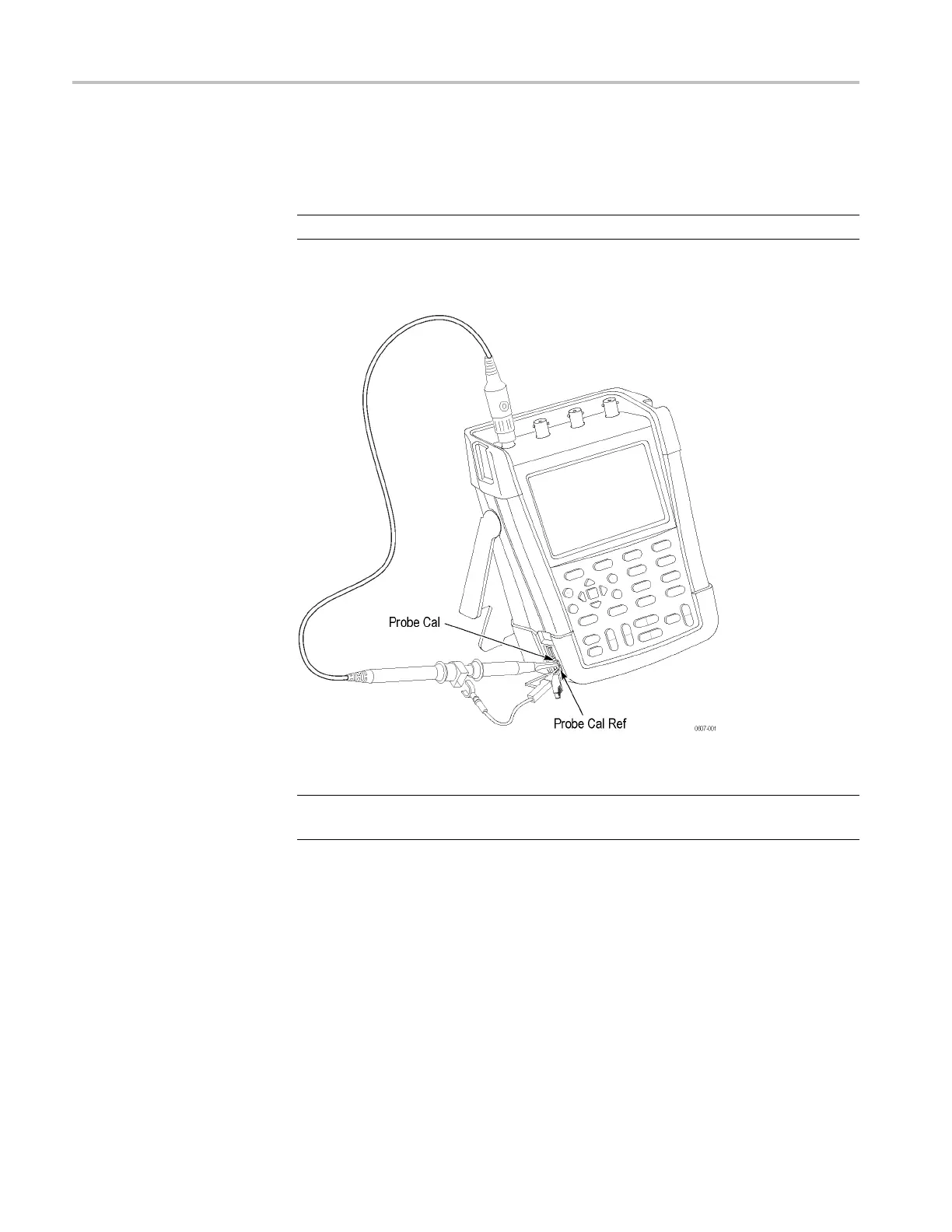

Figure 40: Compensating voltage probes

NOTE. When using 100:1 voltage probes, choose 100:1 attenuation to perform

an a

djustment.

104 THS3000 Series Oscilloscopes User Manual
