Operating Basics
Choose a Frequency
Measurement for Channel
1
To choose a freq
uency measurement for channel 1, do the following:
1. Press the Ch 1 button to turn the input on.
2. Press the Acquire button to view the menu.
3. Select MEASURE.
4. Use the function button under MEASURE A B C D to select the measure
to be displayed. For example, you can select A.
5. Use the arrow keys to select on Ch 1 to assign the measurement to that
channel and select the measurement parameters. Select Hz for frequency.

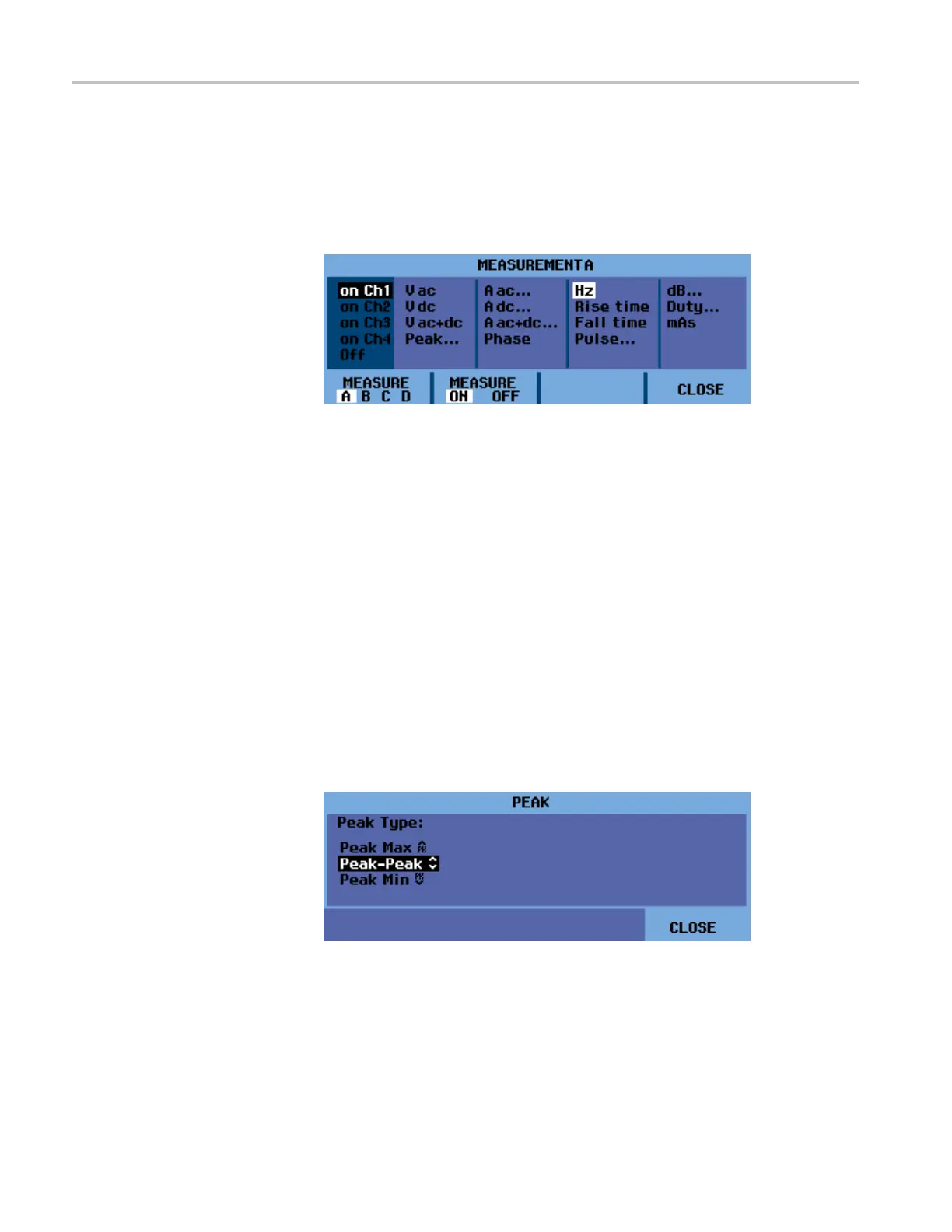

View a Hz and V Peak-Peak
Measurement
To choose also a Peak-Peak measurement for channel 2 as a second reading, do
the following after finishing the previous procedure:
1. Press the Ch 2 button to turn the input on.
2. Press the Acquire button and select ME ASURE
3. Press the function button to select MEASURE B.
4. Select on Ch2 using the arrow keys and then press the Enter button.
5. Select Peak using the arrow keys and then press the Enter button.
6. Select Peak-Peak.
32 THS3000 Series Oscilloscopes User Manual
