Recorder Functions
Use Single Sweep Mode
You can use the r
ecorder Single Sweep mode to automatically stop recording
when the deep memory is full. To activate single sweep mode, do the following:
1. Set up the instrument as in the previous procedure. (See page 49, Start Scope
Roll Mode.)

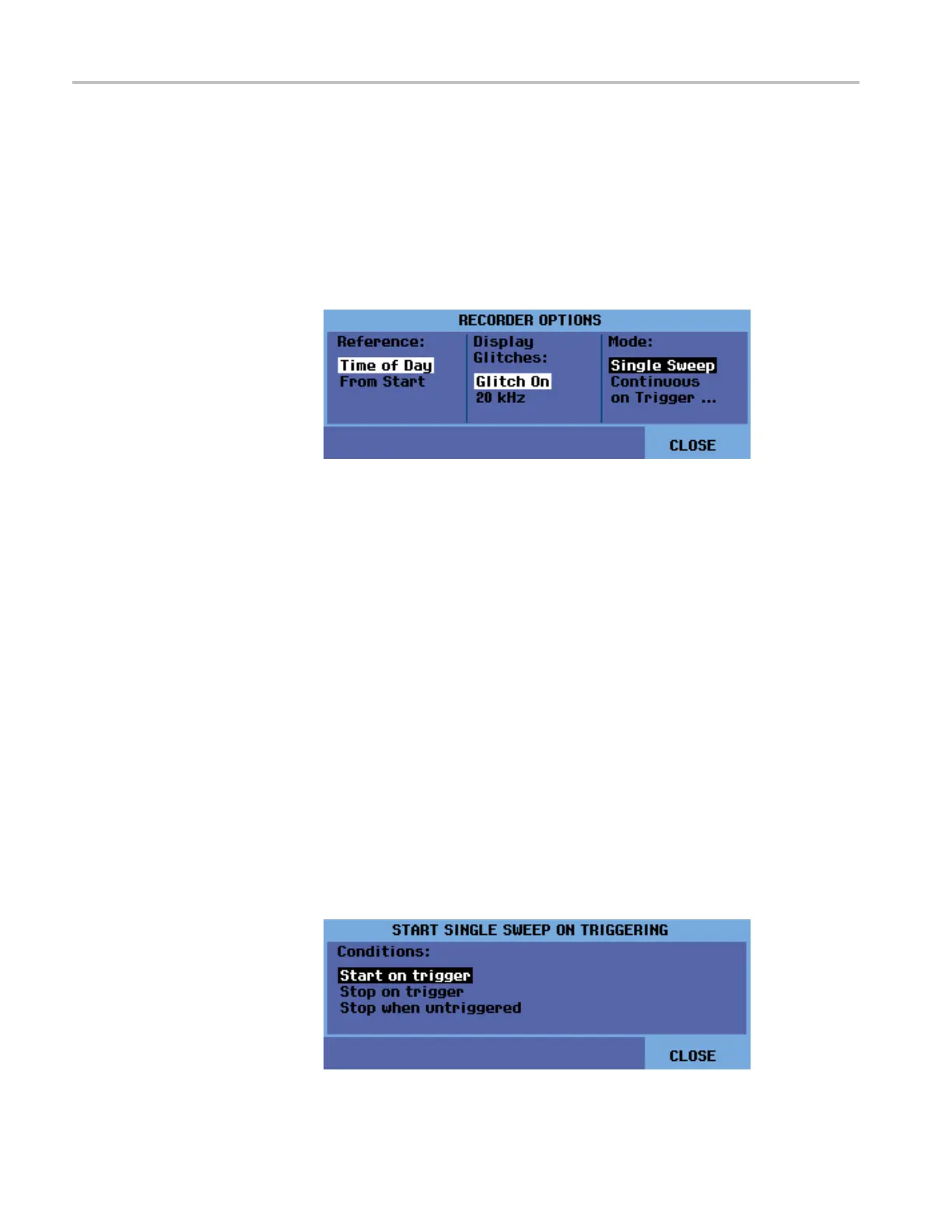

2. Select OPTIONS from the SCOPEROLLMODEmenu.
3. Use the right arrow to highlight Single Sweep mode and press the Enter
button.
4. Press the function button under the RECORDER menu item and select RUN
to begin recording in single sweep mode.
UseTriggeringtoStartor
Stop Scope Roll Mode
To record an e lectric al event that causes a fault, it might be useful to start or stop
recording on a trigger signal:
Start on trigger to start recording; recording stops when the deep memory is full.
Stop on trigger to stop recording.
Stop when untriggered to continue recording if a next trigger comes within
1 division in vi
ew all mode.
To set up the instrument to start or stop recording on a trigger signal, do the
following:
1. Set up the instrument as in the Start Scope Roll Mode procedure. (See
page 49.)
2. Select OPTIONS from the SCOPEROLLMODEmenu.
3. Use the right arrow to highlight on Trigger mode and press the Enter button.
4. Select on of the conditions from the STARTSINGLESWEEPON
TRIGGERING menu.
50 THS3000 Series Oscilloscopes User Manual
