IM-LYOQUEST-EN-2101 9 / 58
4.3. Electrical connection
a) Ensure that the power supply is the correct one for the unit.
b) Ensure that the connection to the power supply suits the freeze-dryer's power.
c) Connect the electrical cable of the unit to the power supply.
WARNING
Before switching the Freeze-Dryer on, check that the supply voltage is the same as the
one mentioned on the specification plate. It should be connected to a suitable socket base
with a grounded plug.
Whenever there is a power cut or the supply fails for a long period of time, stop the
freeze-dryer.
Installation in the place where the Freeze-Dryer is connected to must meet the safety
regulations in force and be according to the local regulations of the country or customer
facilities.
Connect the cable of the vacuum pump to the unit.

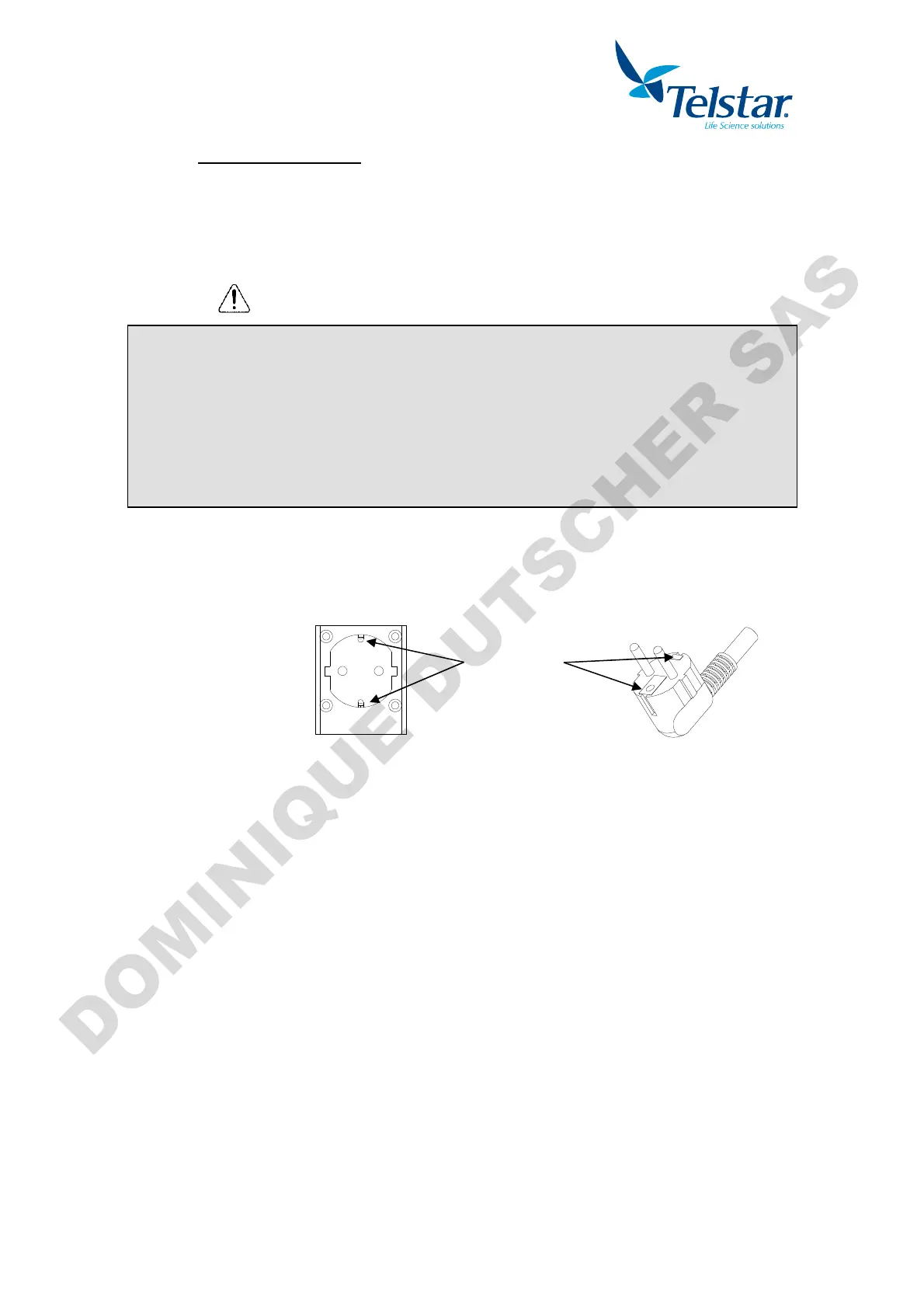

Connect the electrical cable of the basic unit to the power supply (example for plug wire
supplied with a European plug).
Electrical supply: 230V monophase + PE, 50 Hz
230V monophase + PE, 60 Hz
Installed power (*): LyoQuest –55: 2.5 kW
LyoQuest –85: 3.5 kW
LyoQuest Arctic –85: 3.5 kW
Consumption (*): LyoQuest –55: 8.6A (11A max)
LyoQuest –85: 10.6A (15A max)
LyoQuest Arctic –85: 10.6A (15A max)
* 230V 50 Hz
EARTH
