Telstar LyoQuest - Semiautomatic Cycle

IM-LYOQUEST-EN-2101 25 / 58

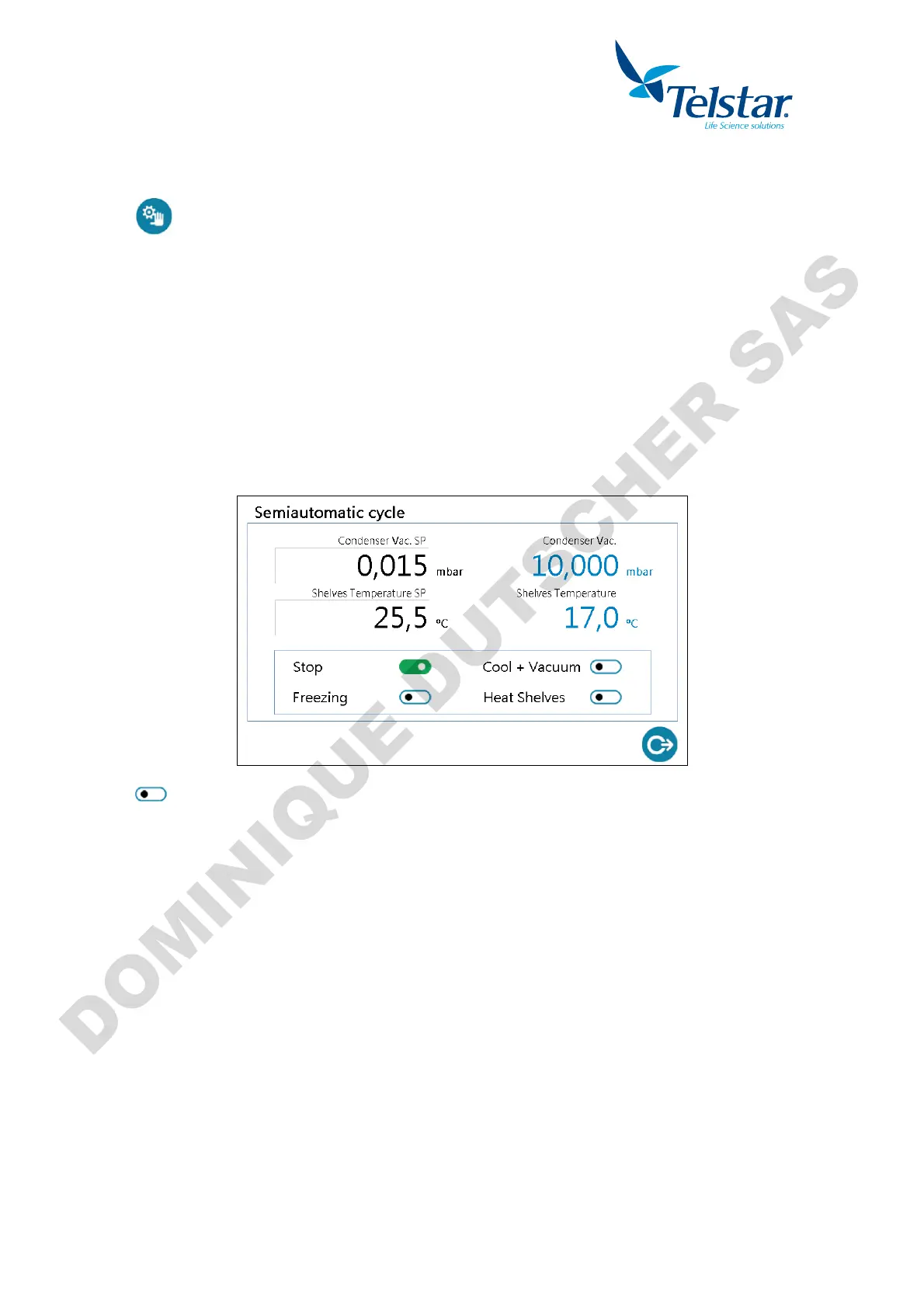

10.2.3. Semiautomatic cycle
When
pr
essing
th
is
button, placed
at the
Fre
eze
-
drying
window
, user
can access
the
Semiautomatic cycle window.
The user can select the chosen process by pressing on the corresponding process box.
It consists of:
- Set point and real time values of the shelf temperature and the condenser vacuum,
shown in the upper part:
Condenser Vac. SP: Condenser vacuum set point.
Condenser Vac: Current condenser vacuum value.
Shelves temperature SP: Temperature set point.
Shelves temperature: Shelves temperature value in real time.
- The processes selectable by the user (see chapter 8.4), shown in the lower part.
Process selection button. White if not selected. Green if selected or under execution.
