IM-LYOQUEST-EN-2101 53 / 58

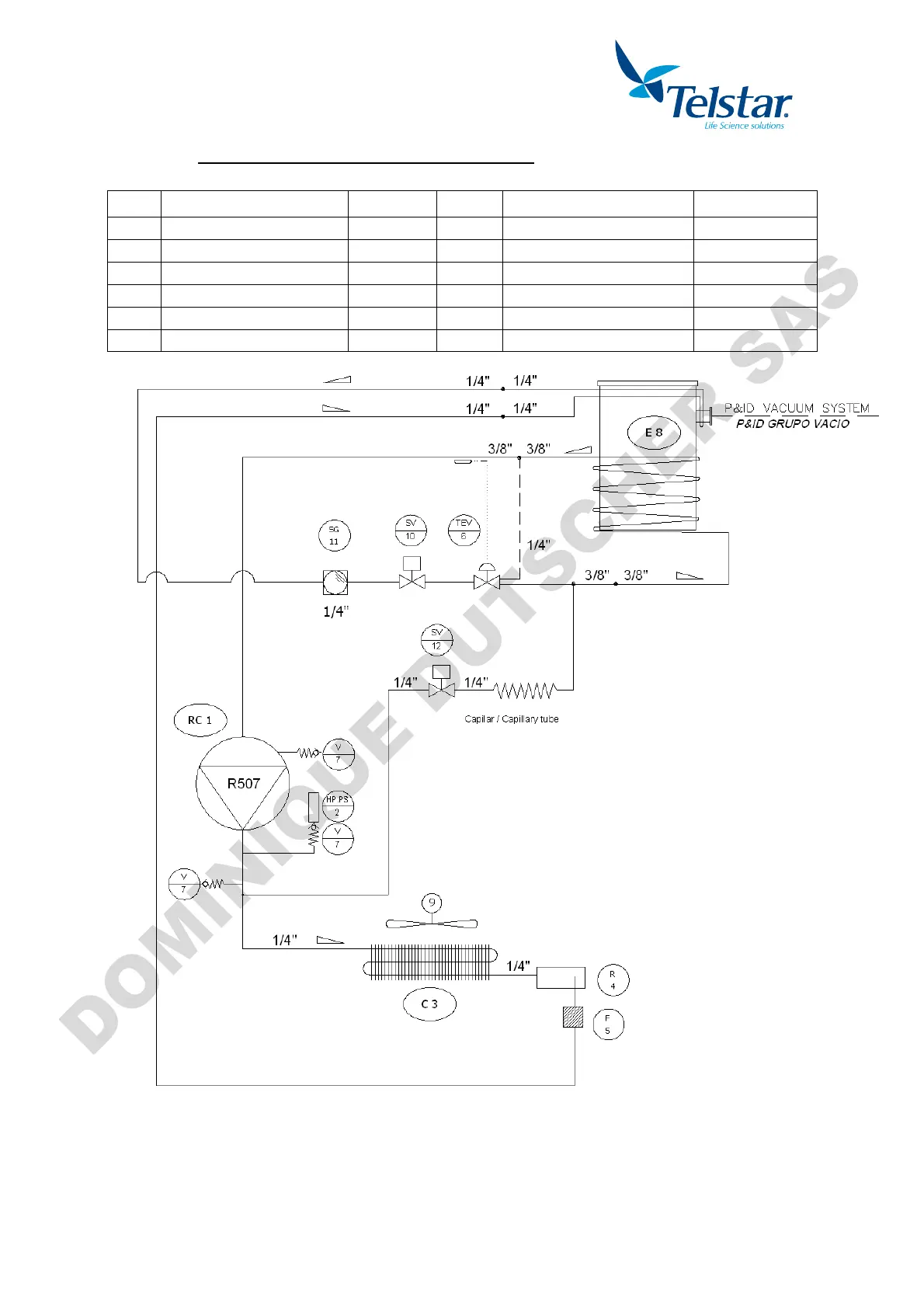

13.5. Refrigerating system P&ID (LyoQuest -55)
No. DESCRIPTION CODE No. DESCRIPTION CODE
RC1 Compressor R-507 58411 TEV6 Expansion valve R-507 3485
2 High-pressure switch 57311 V7 Access valve 3023
C3 Air condenser 37223 E8 Evaporator 55190
R4 Liquid receiver 1740404 9 Fan motor 57208
F5 Dryer filter 19813 SV10 Solenoid valve 3551+3549
SG11
Sight glass 20661 SV12 Solenoid valve 3551+3549
