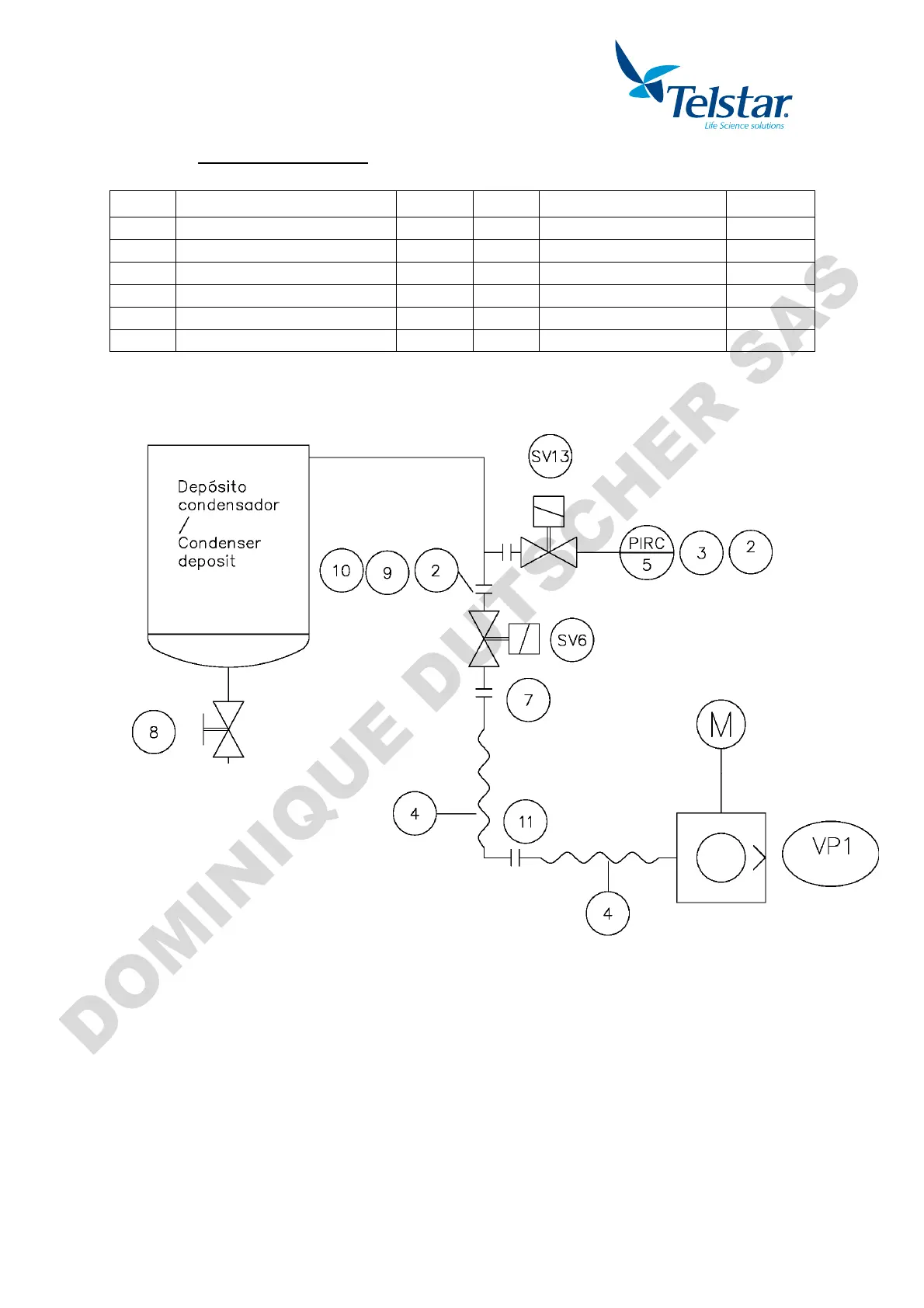

13.8. Vacuum system P&ID
No. DESCRIPTION CODE No. DESCRIPTION CODE
VP1 Vacuum pump --- 7 KF DN16-tube nozzle 4557
2 KF DN16/10 centering ring 7761 8 Manual valve 58649
3 KF DN16/10 collar 7791 9 ¼” – DN16 adaptor 8622
4 Armovin tube Ø12/18 22329 10 ¼” G - ¼” NPT adaptor 21119
PIRC 5
VSP62 Vacuum transducer 57403 11 Connection flange 17933
SV6 Solenoid valve 6066 SV13 Solenoid valve 6066
