9.2. Manifolds

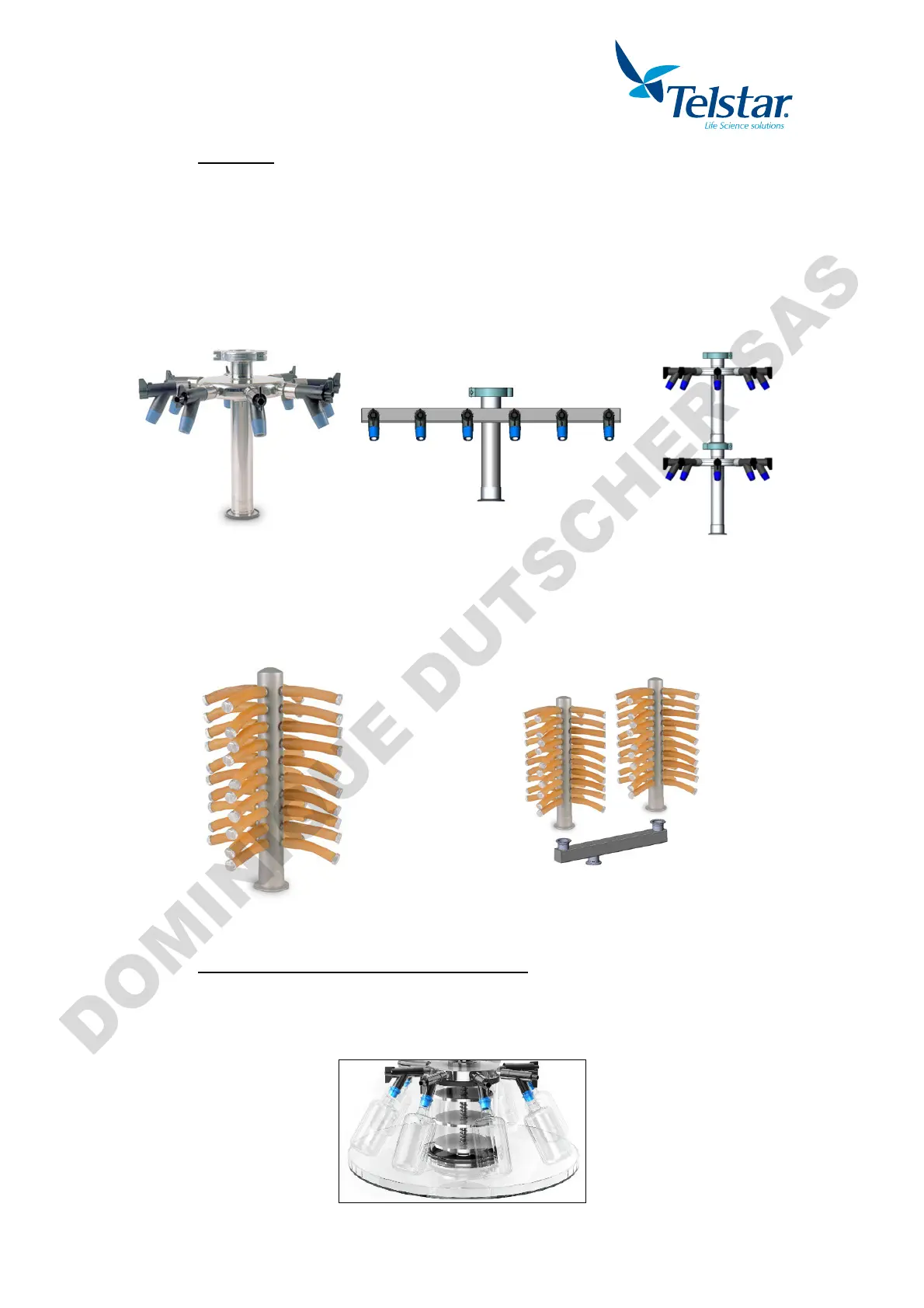

Manifolds with 8-12-16 inlets
Horizontal manifold. Each one of the manifold inlets is provided with a 3-way valve which
allows isolating and restoring the pressure in each one of the flasks independently. The
valves allow the junction to grinding flasks by means of the conical adapter that they
incorporate (external diameter: 29-32 mm; internal diameter 18 mm). By removing this
adapter, tubes or flasks can be inserted directly in the valve.
Circular manifold with 8 inlets (fig C) and straight one with 12 inlets (fig D).
By joining together two 8 inlets manifolds it is possible to get 16 inlets (fig E).
Fig. C Fig. D Fig. E
Manifolds with 40-80 inlets
Manifold with 40 inlets for 13mm diameter pipes (fig F). By means of a distributor it is
possible to get 80 inlets (fig G).
Fig. F Fig. G
9.3. Flasks condensations collector (Drip tray)
Cover to collect the condensations generated on the outer part of the flasks of the manifold
(Fig. H).
Fig. H
