24-Port Managed Gigabit Switch

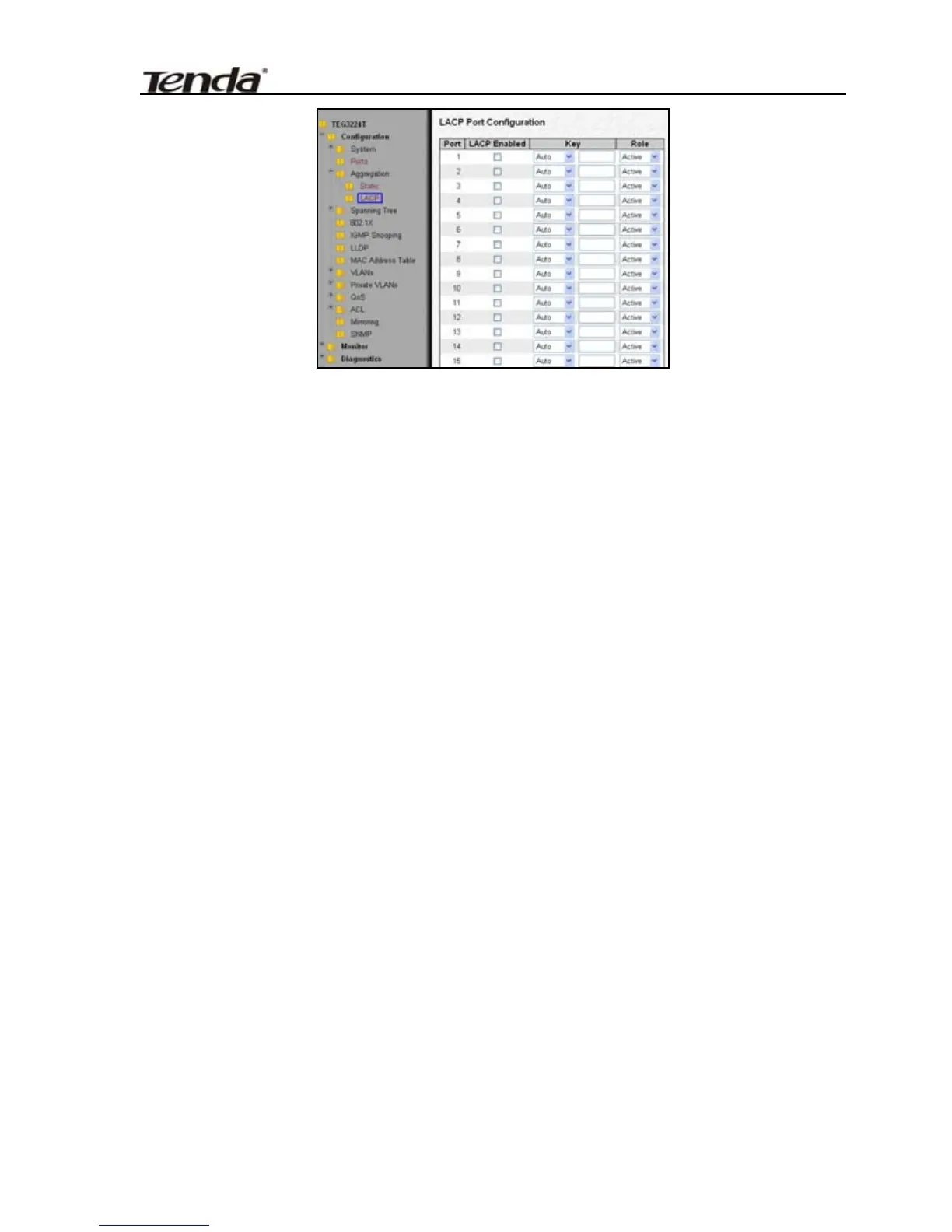

This page allows the user to inspect the current LACP port
configurations, and possibly change them as well.
Port
The switch port number.
LACP Enabled
Whether LACP is enabled on this switch port. LACP will form
an aggregation when 2 or more ports are connected to the
same partner. LACP can form max 12 LLAG's per switch.
Key
The Key value incurred by the port, range 1-65535. The Auto
setting will set the key as appropriate by the physical link speed,
10Mb = 1, 100Mb = 2, 1Gb = 3. Using the Specific setting, a
user-defined value can be entered. Ports with the same Key
value can participate in the same aggregation group, while
ports with different keys can not.
Role
The Role shows the LACP activity status. The Active will
transmit LACP packets each second; while Passive will wait
for a LACP packet from a partner (speak if spoken to).
29
