24-Port Managed Gigabit Switch

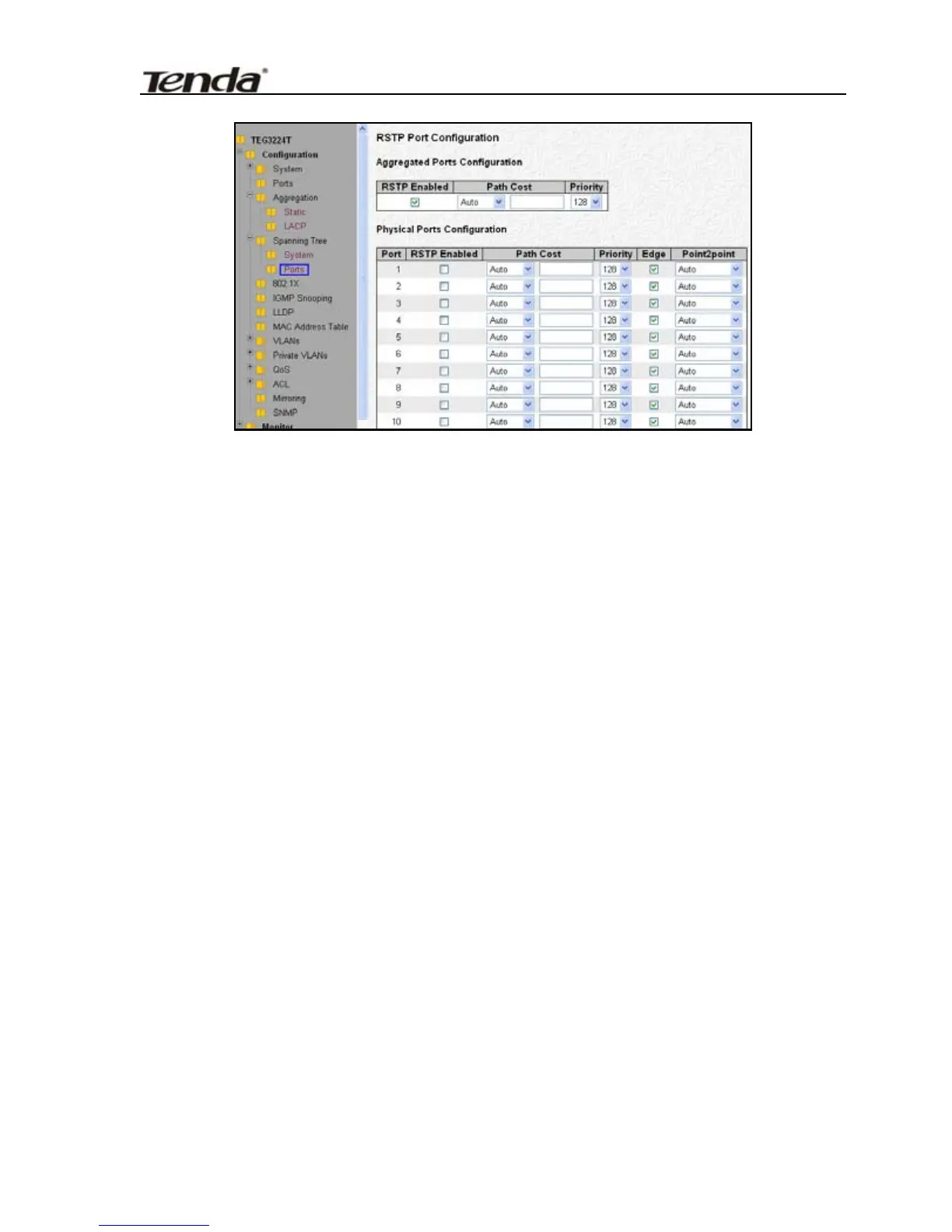

This page allows the user to inspect the current RSTP port
configurations, and possibly change them as well. The page
contains settings for aggregations and physical ports.
Port
The switch port number of the logical RSTP port.
RSTP Enabled
Whether RSTP is enabled on this switch port.
Path Cost
The Path Cost incurred by the port. The Auto setting will set the
path cost as appropriate by the physical link speed, using the
802.1D recommended values. Using the Specific setting, a
user-defined value can be entered. The Path Cost is used to
establish the active topology of the network, i.e. which ports to
have forwarding and which to block. Usually 100M port’s cost
value is 200000; 1000M port’s cost value is 20000. Valid
values are in the range 1 to 200000000.
37
