HYDRAULICS
8D-13
Rotating Group

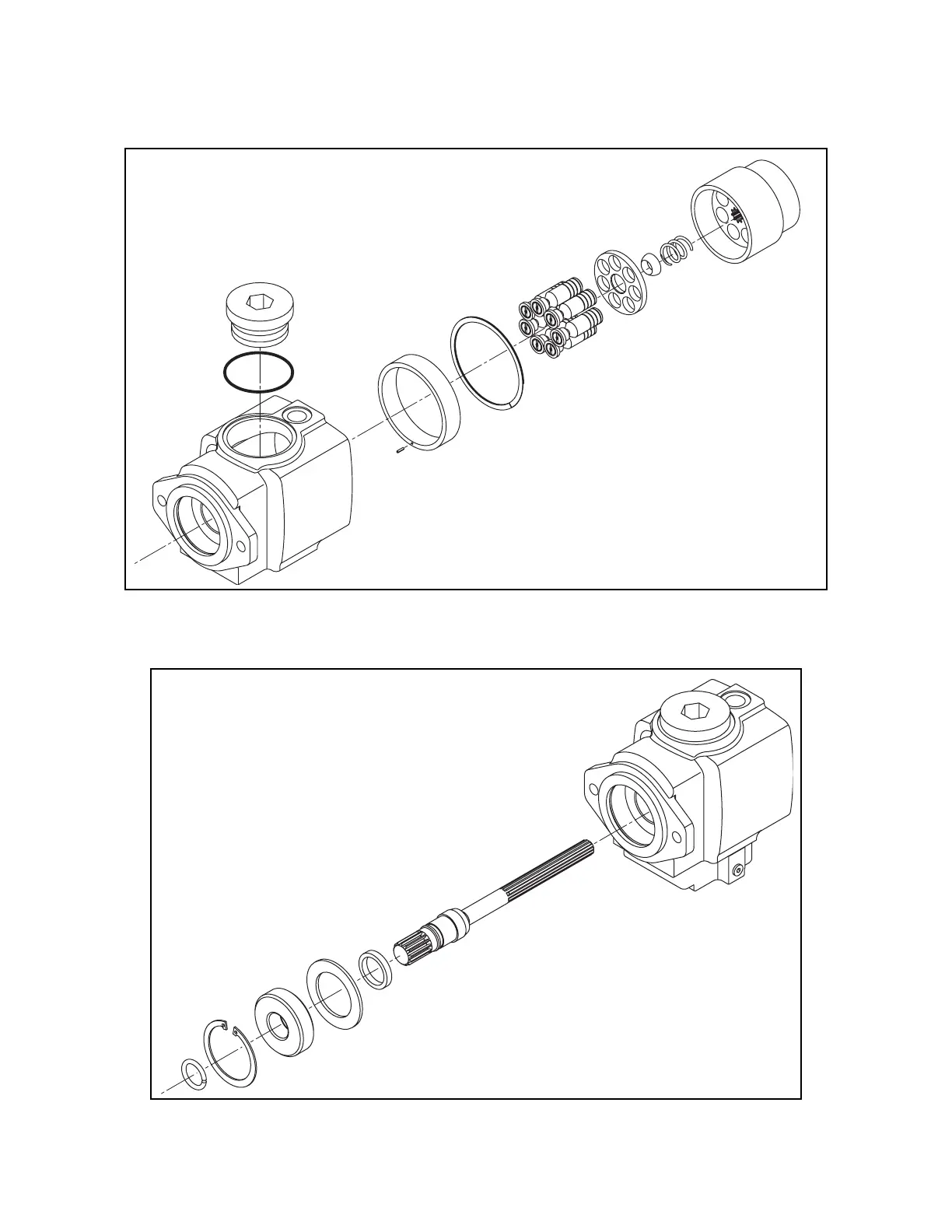

Figure 8D-5. Rotating Group Disassembly
Drive Shaft Group
Figure 8D-6. Drive Shaft Group Disassembly
Cylinder
Barrel
Shoe
Retainer
Spring
Ball
Fulcrum
Shoe
Retainer
Pistons
Retaining
Ring
Hydrodynamic
Bearing
O-Ring
