ELECTRICAL SYSTEM
10G-16
f. Hold ignition switch in the START position.
Connect one test lead to terminal B and one
lead to terminal S.
Continuity should be available between termi-
nals B and S.
NOTE:
If the ignition switch fails any of the above tests,
replace the switch.

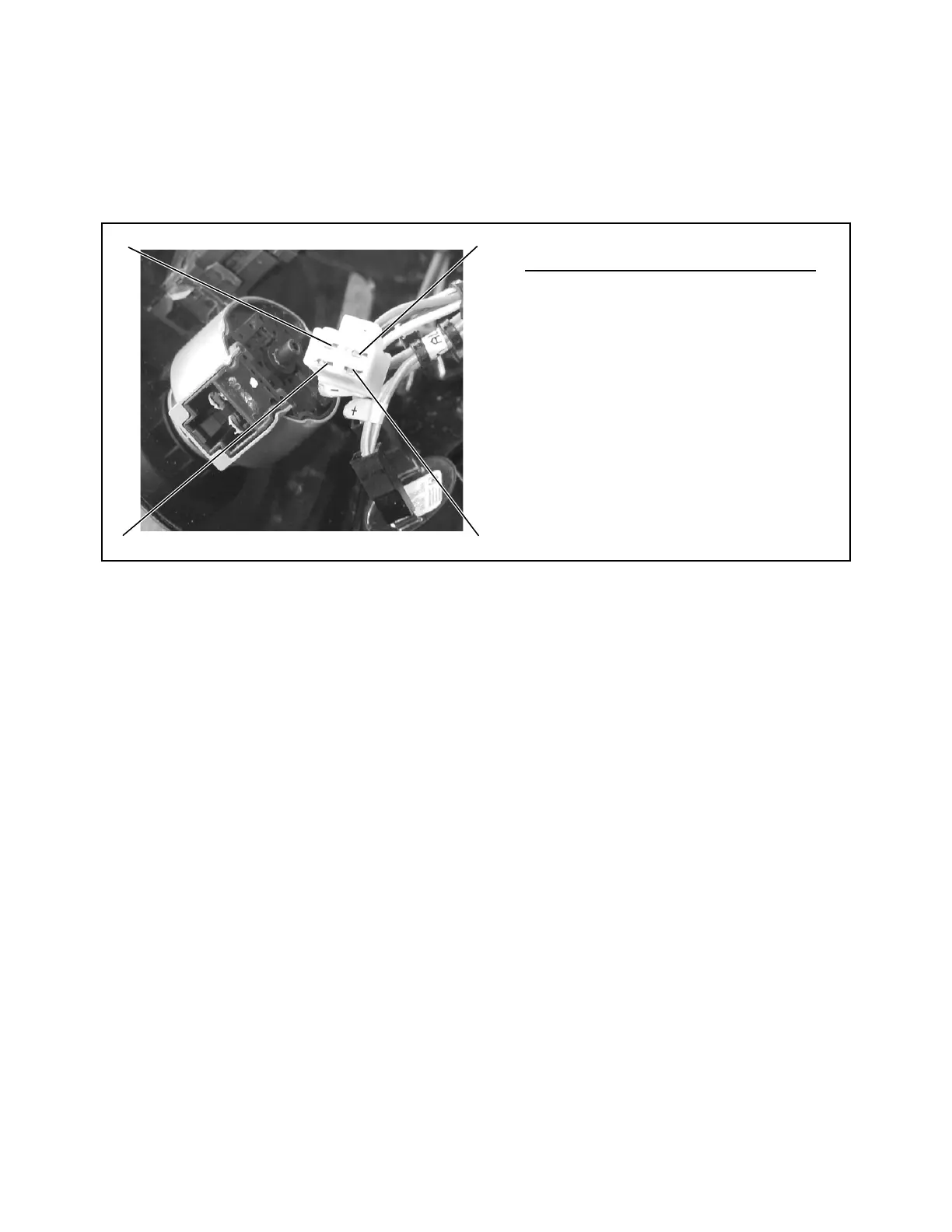

Figure 10G-2. Ignition Switch Test
Position Continuity
OFF None
RUN B & I
GLOW PLUG B & GP
START B, I, &S
If other terminals test with continuity, the
switch should be replaced.
I GP
SB
