OPTIONS
13C-9
6. Remove the groomer mounting bracket and
groomer shaft.

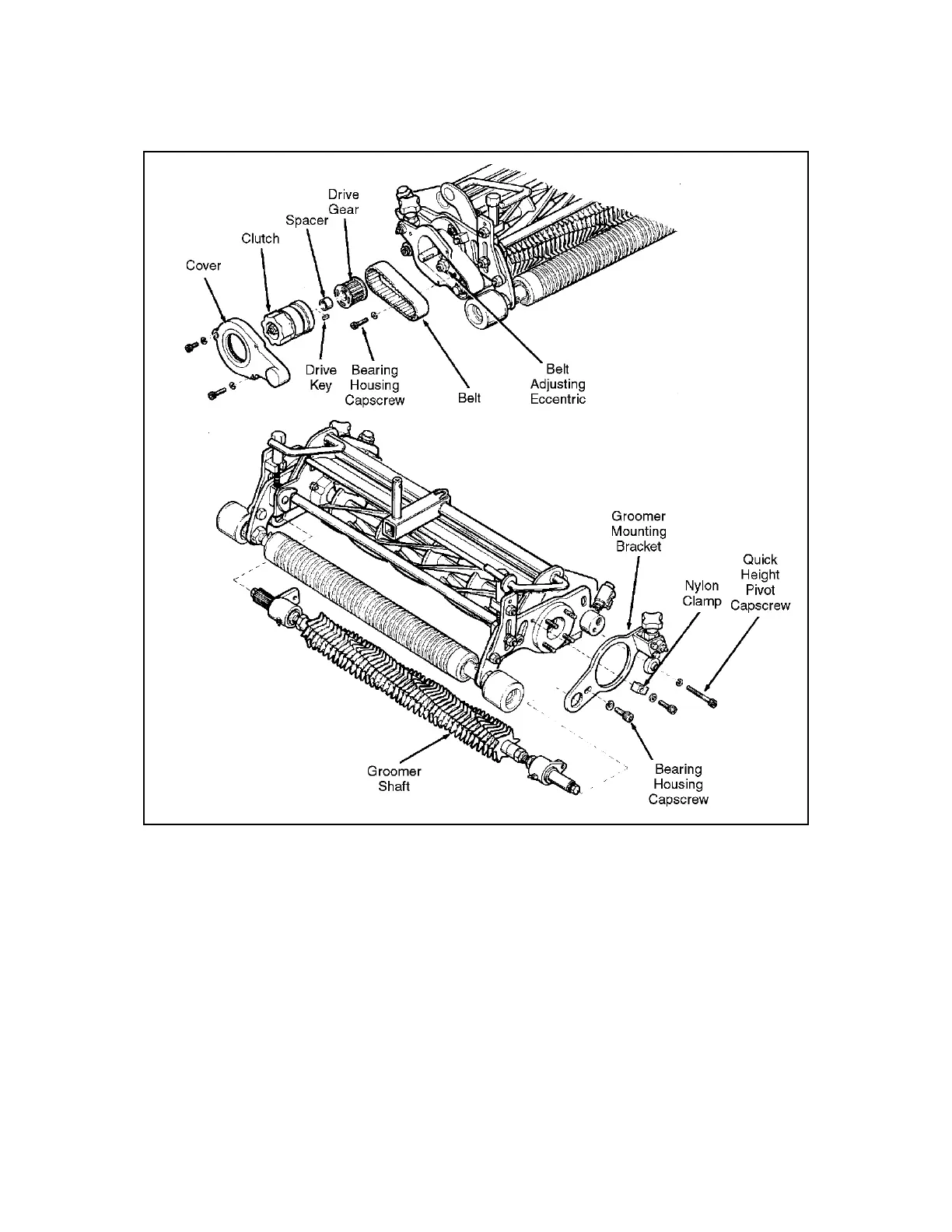

Figure 13C-4. Groomer Shaft Assembly
Bearing Replacement
Disassembly
1. Remove the hardware as shown in Figure 13C-5
from ends of the groomer shaft.
2. Remove the bearing housing.
3. Remove the outer snap ring from the bearing
housing.
4. Remove the seal and inner snap ring.
5. Press the bearing from the bearing housing.
NOTE:
Discard the old seal and bearing.
