ENGINE
3D-9

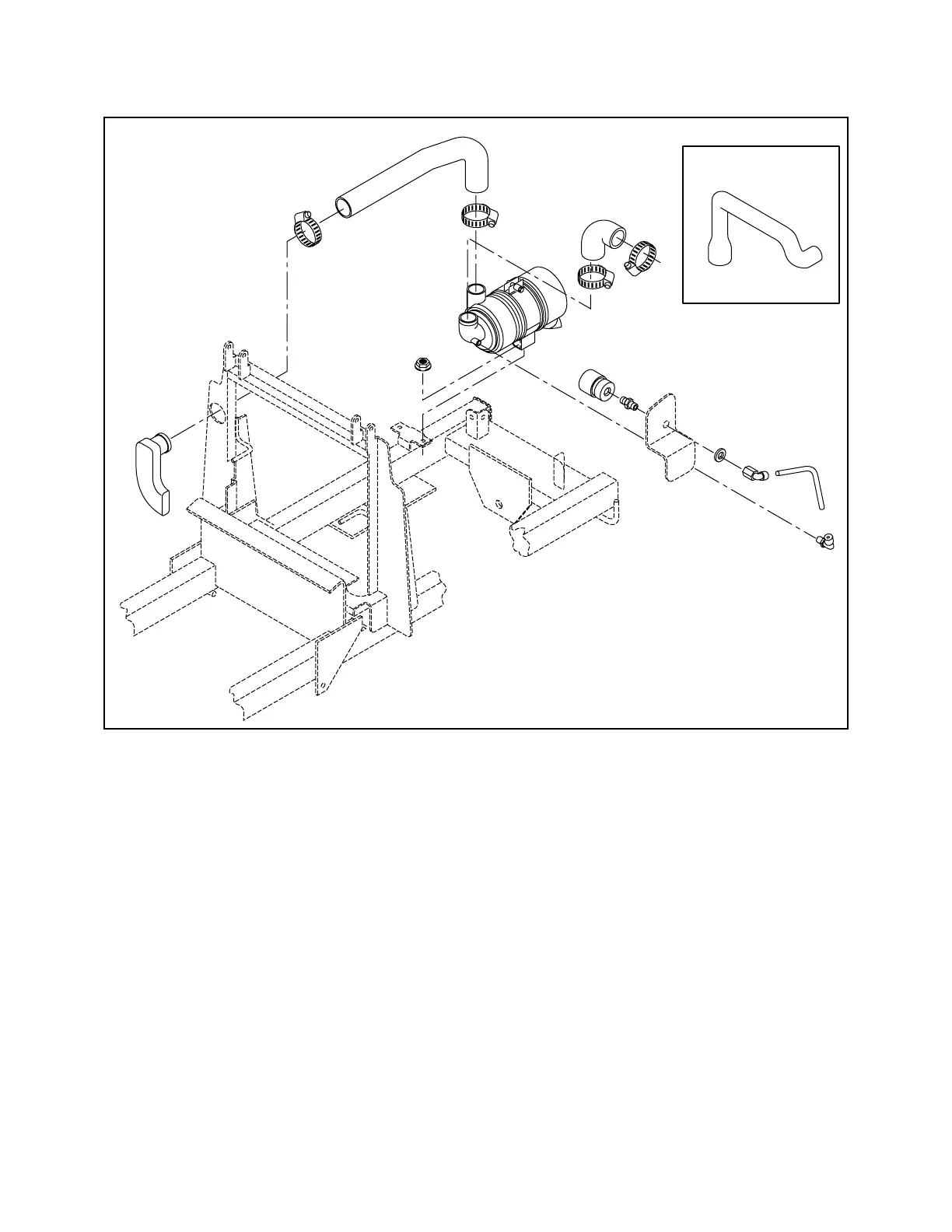

Figure 3D-4. Air Cleaner Assembly Exploded View
1. Release the spring clips and remove the air
cleaner end cover. Using damp lint-free cloths,
thoroughly clean the inside of the end cover
including the dust evacuator (Figure 3D-5).
2. Pull the air filter element free of the housing. Using
damp lint-free cloths, clean the inside of the filter
housing (Figure 3D-5).
3. Inspect the air inlet and intake hoses for wear and
damage, replace all damaged hoses. Ensure the
hose clamps secure the hoses without leaks.
4. Inspect the new filter element. Do not use a dam-
aged element, especially the open-end seal.
5. Install the new filter element, making sure it is
properly seated in the housing.
6. Install the end cover with the dust evacuator
located at the bottom of the assembly. Secure
with spring clips.
Intake Hose
Air Filter Restriction Guage
Turbo Units
Intake
Hose
Inlet
Hose
Air
Cleaner
Plenum
To Next Page
