STEERING
6C-9

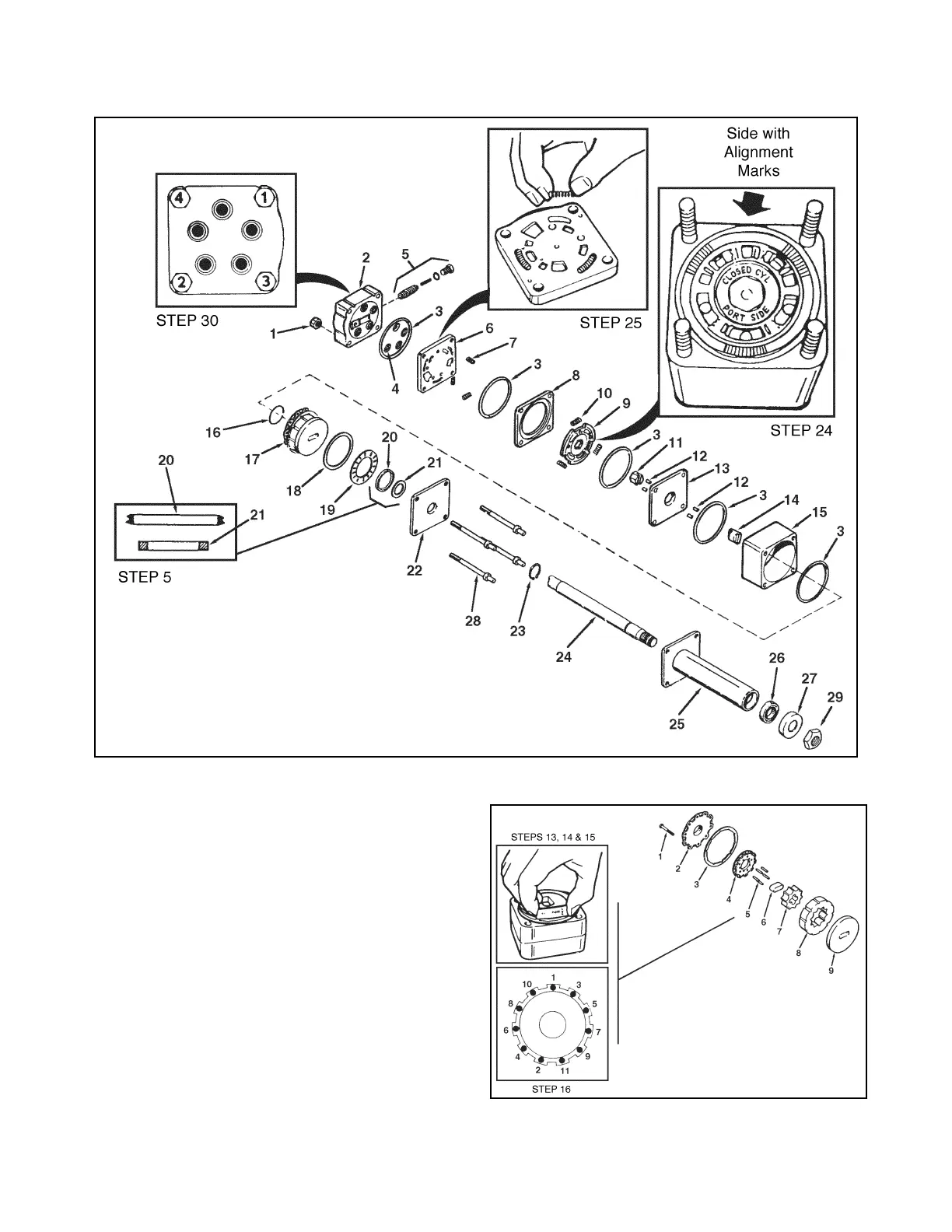

Figure 6C-5. Steering Valve Assembly
24.Install the valve plate (9) as shown (closed cylin-
der up) in the valve ring (8), aligning the spring
slots with the springs. Install the seal ring (3).
25.Place three 0.75 in (19.05 mm) springs (7) in the
port manifold (6) as shown.
26.Carefully place the port manifold (6), springs
down, onto the valve ring (8), see Figure 6C-6.
Figure 6C-6. Metering Package Assembly
