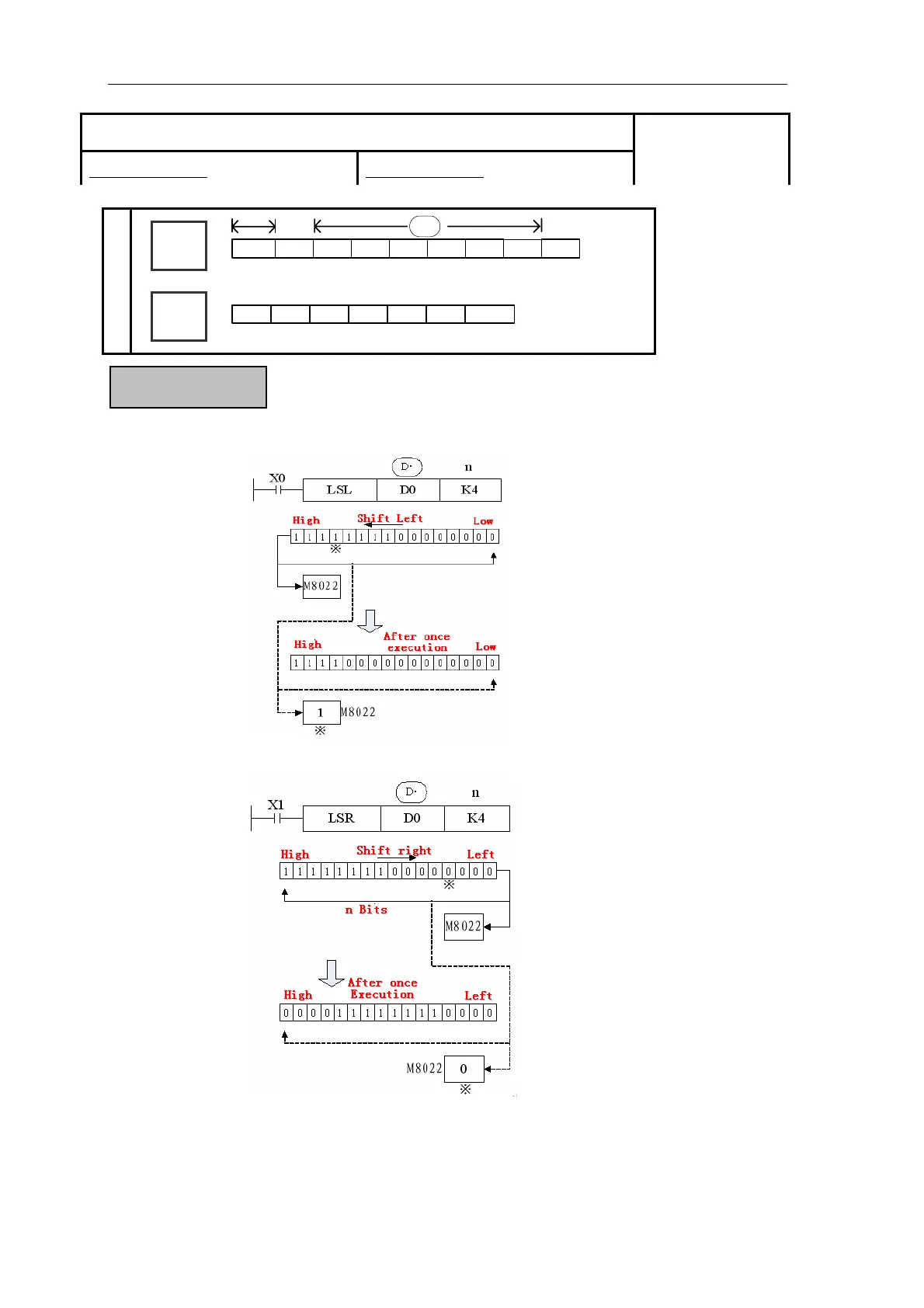

Applied Instructions
《Logic shift left》
《Logic shift right》
Function & Action
z After once execution, the
low bit is filled in 0, the
final bit is stored in carry
flag.
z After once execution, the
high bit is same with the bit
before shifting, the final bit
is stored in carry flag.
NOTE:
z In every scan cycle, loop shift left/right action will be executed
[LSL] & LSR]
16 bits instruction： 32 bits instruction：DLSL、DLSR
Suitable Models：
XC3、XC5
Word
Device
Bit
Device
D
FD
DM
DX
DY
DS
TD
CD
K/H
D·
n
X
Y
M
S
T
C
Dn.m
102
To Next Page
