Applied Instructions

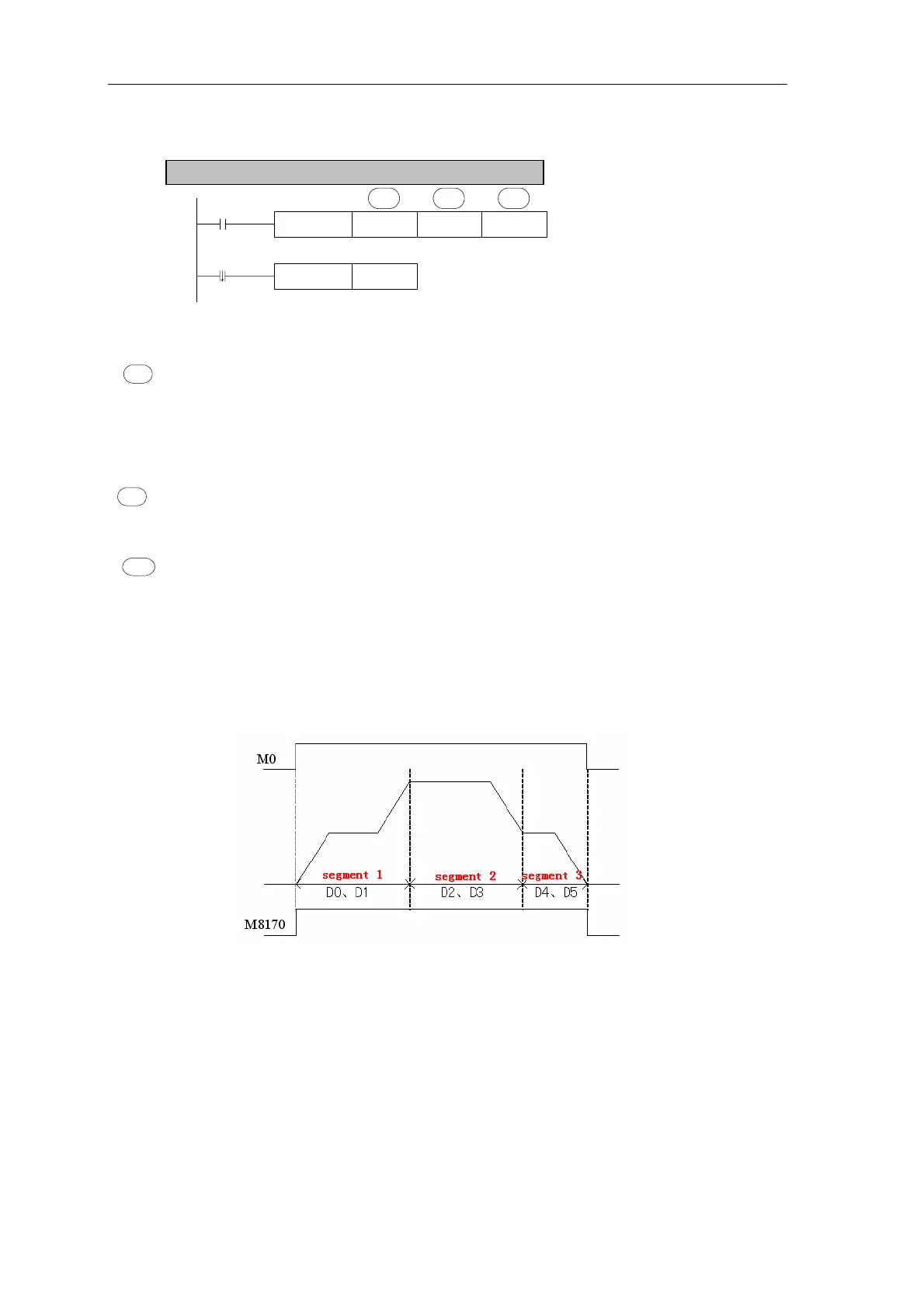

¾ Pulse output of segments and single phase
PLSR D0 D100 Y3
RST M0
M0
M8170
S1·
S2·
D·
z The instruction which generates a certain quantity pulse with the assigned frequency.
An area with Dn or FDn as the start address. In the above example, D0 set the highest
frequency of segment 1 pulse, D1 set the highest frequency of segment 1 pulse, D2 set the
highest frequency of segment 2 pulse, D3 set the highest frequency of segment 2 pulse, ……
if the set value of Dn, Dn+1 are both 0, it means segment finish. You can set at most 24
segments. Operands: D, FD
Speedup/speed-down time. Here the time means the speed time from start to the first
segment’s speedup time, meantime, all segments’ frequency and time slope are defined. So
the following speedup/speed-down speed follows them. Operands: K, TD, CD, D, FD
Assign the Y number of output pulse, can only output at Y000 or Y001
z Support double words output DPLSR, here D0、D1 set the highest frequency of segment
1、D2、D3 set the pulse number of segment 1, D4、D5 set the highest frequency of segment 2、
D6、D7 set the pulse number of segment 2……
S1·
S2·
D·
217
