Applied Instructions

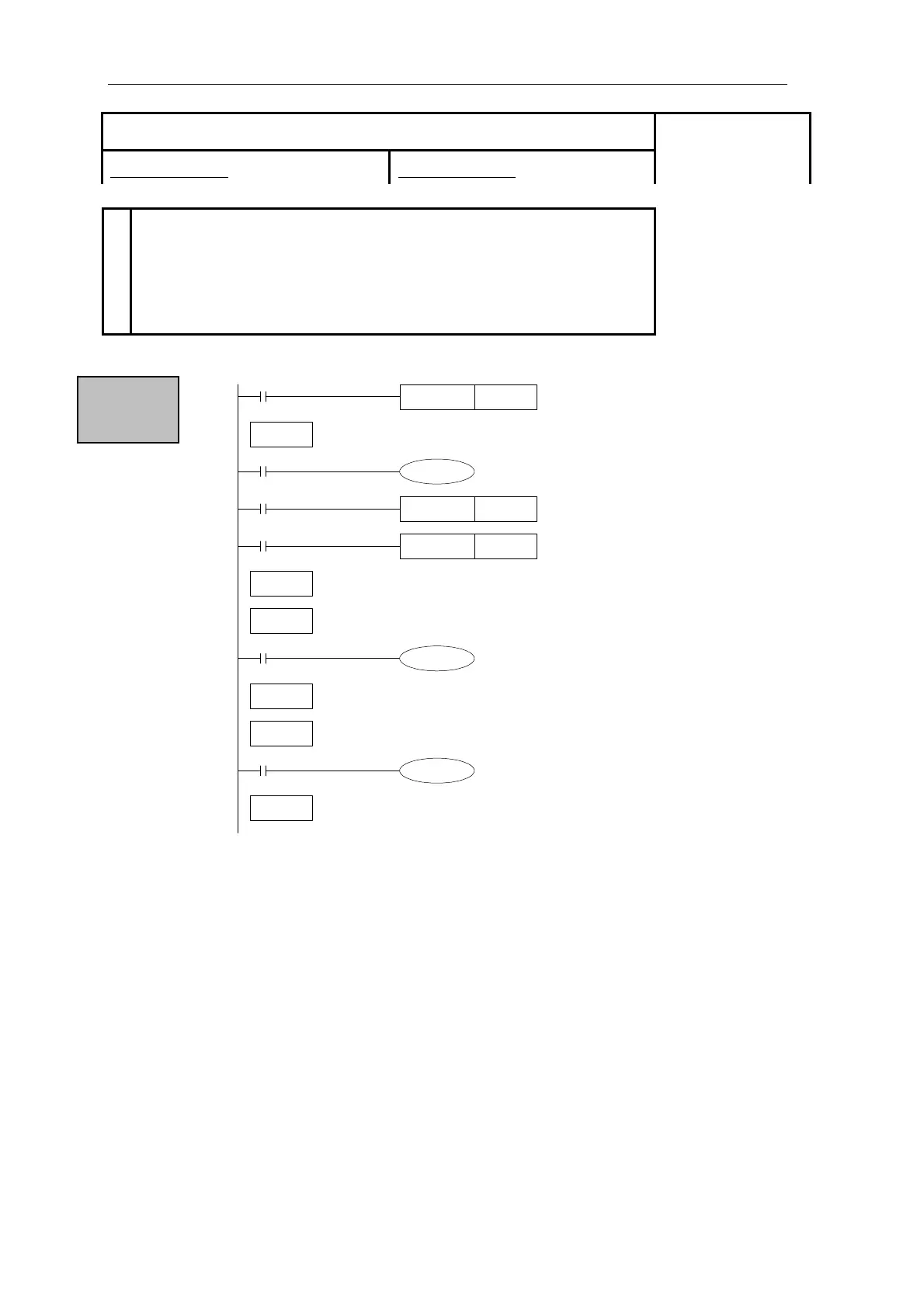

SET S0
STL S0
SET S1
ST S2
STL S1
STLE
STLE
STL S2
STLE
z STL and STLE should be used in pairs. STL means start of a flow, STLE means end of a
flow.
z After executing of SET Sxxx instruction, the flow assigned by these instructions is ON.
z After executing RST Sxxx instruction, the assigned flow is OFF.
z In flow S0, SET S1 close the current flow S0, open flow S1.
z In flow S0, ST S2 open the flow S2, but don’t close flow S0.
z When flow turns from ON to be OFF, OFF or reset OUT、PLS、PLF、not accumulate timer
etc. which belongs to the flow
z struction is usually used when a program needs to run more flows at the same time.
z In a main program, usually use ST instruction to open a flow.
Flow [SET]、[S ]、 [STLE] T] 、[STL
16 bits instruction：SET、ST、STL、STLE 32 bits instruction：-
Suitable Models：
XC1、XC3、XC5
Pointer: S
Soft Unit’s Bound: S0~S
Suitable Device
Function
.
ST in
145
