7-13
7
Removal
1 Move the loader to a level surface. Raise the boom
arms, engage the boom supports, apply the parking brake,
shut off the engine and remove the ignition key.
2 Remove the seat, U- Joint service access panel and
the battery access panel.. (fig. C5648)
6 Shut off the fuel petcock located at the bottom of the
right hand fuel tank, inside the engine compartment. (fig.
C5642)
3 Disconnect the battery cables from the battery termi-
nals. ( fig. C5105, Ground cable first) Remove any wire
ties holding wires to the frame or tubing. Tie up the posi-
tive battery cable to the top of the engine. Unplug the
ROPS harness from the engine harness, remove the wire
clip holding the harness to the rops.
4 Disconnect fuel sender wires from sender. (fig.
C5651)
5 Disconnect engine ground strap from stud on top rear
of right hand transmission box(accessible through battery
access hole). Disconnect ground wires to frame.(fig.
C5652

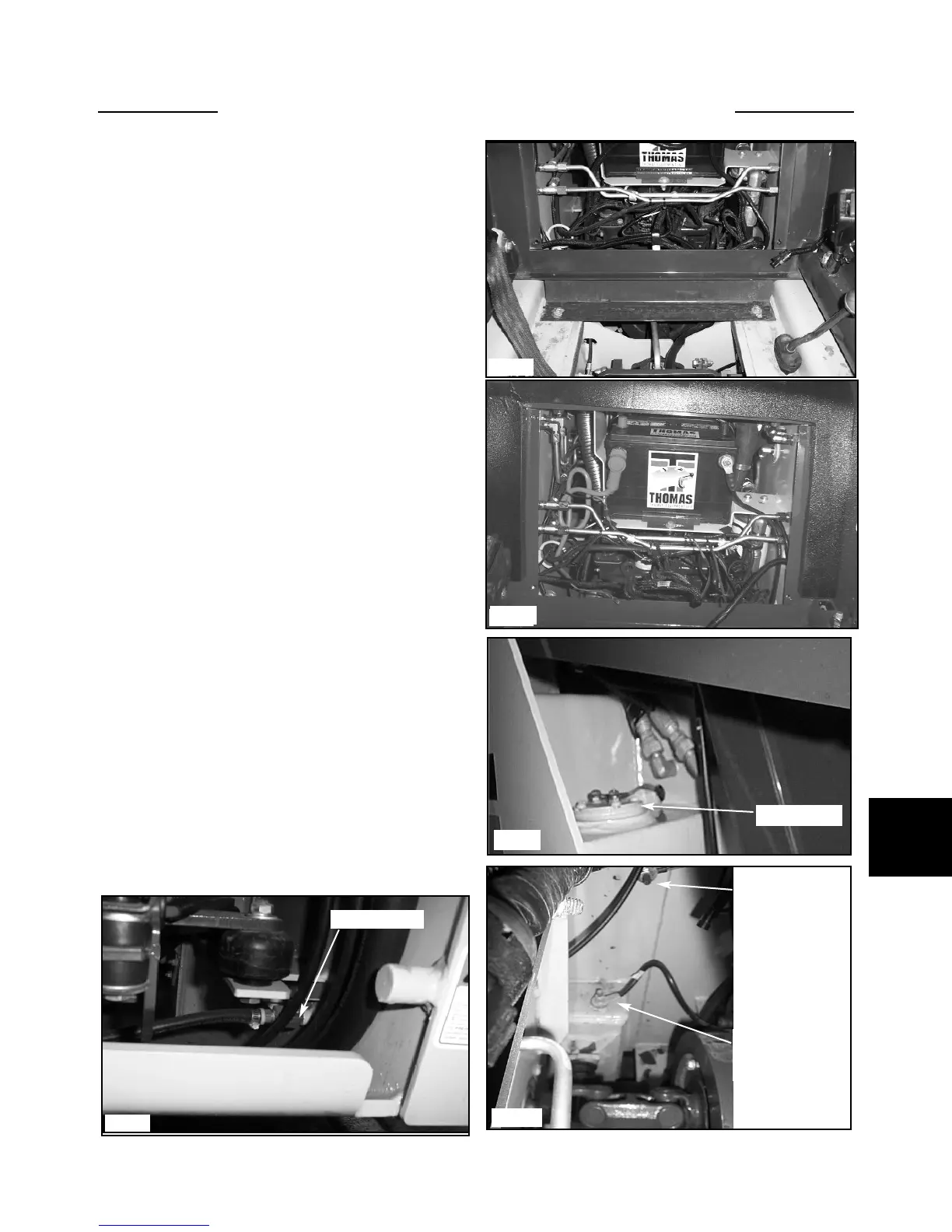

ENGINE REPLACEMENT 7.3
C5648
C5105
C5642
Fuel petcock
C5652
Engine ground
cable
Wire harness to
frame ground
C5651
Fuel sender
