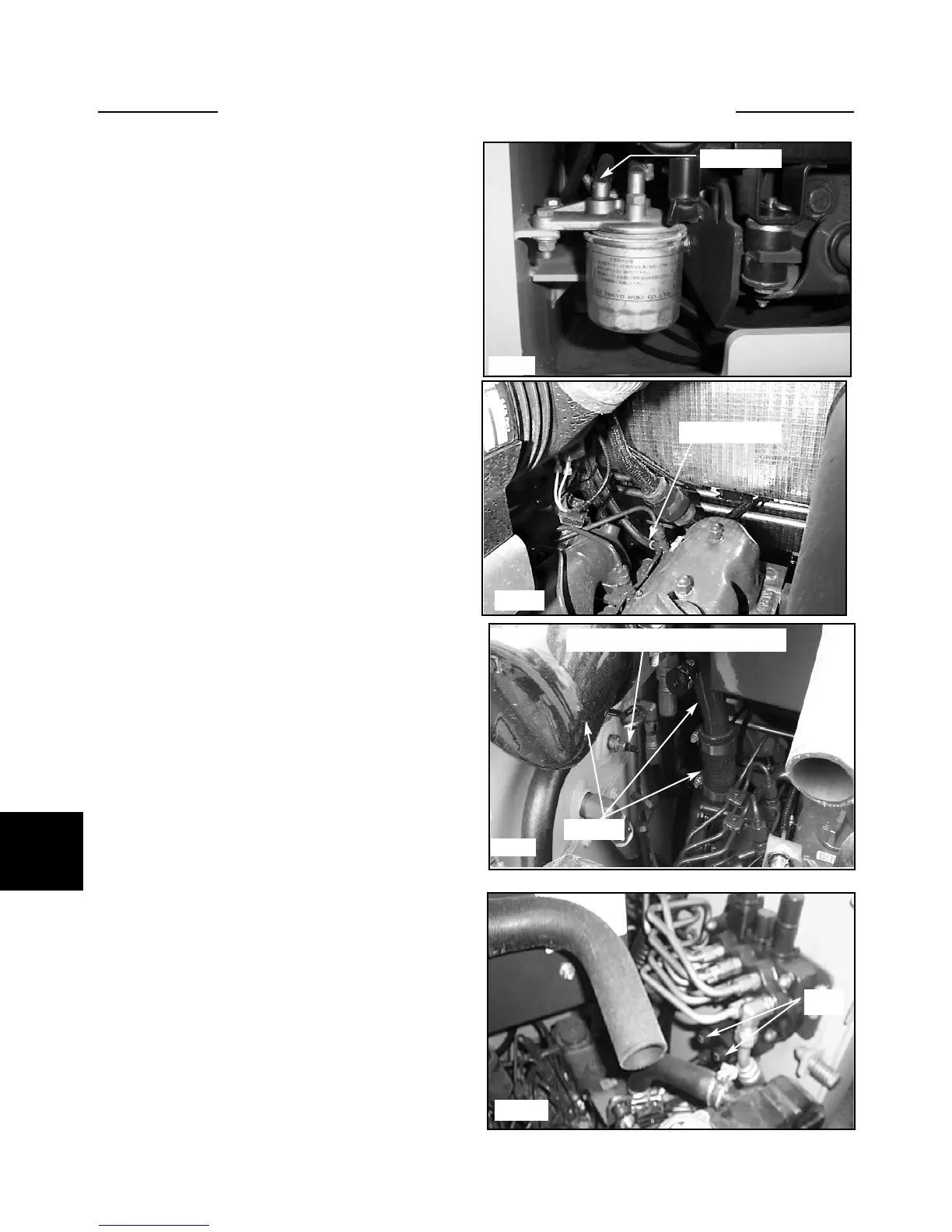

Removal (cont’d)
10 Disconnect the the air filter cannister, tube, hoses and
mount bracket. Plug the intake manifold so that no for-
eign objects can go into the intake. (fig. C5532)
11 Remove the exhaust flange and flex tube from the
loader. Cover or plug any open exhaust ports to the
engine.
12 Discconnect Hydraulic oil temperature sender
wire.(fig. 5532)
13 Disconnect valve solenoid locks wires by remove-
ing solenoid block from valve. Remove nut and o-ring
and slide solenoid block off of valve. (fig. C5653)
ENGINE REPLACEMENT 7.3
C5532
Remove
C5653
Hydraulic oil temperature.sender
C2053
Fuel return line
8 Disconnect the fuel return line from the behind the
rear fuel injector. (fig. C2053)
9 Drain the engine oil and coolant. See Section 7.1
Lubrication system and Cooling System.
C5643
Disconnect
7 At the fuel filter assembly loosen the fuel line clamp
and disconnect the fuel line coming from the tank. Plug
the fuel line. Undo the fuel filter assembly bolts so the
filter can be moved to access engine mount nuts.(fig.
C5643)
Nut
