Removal (cont’d)

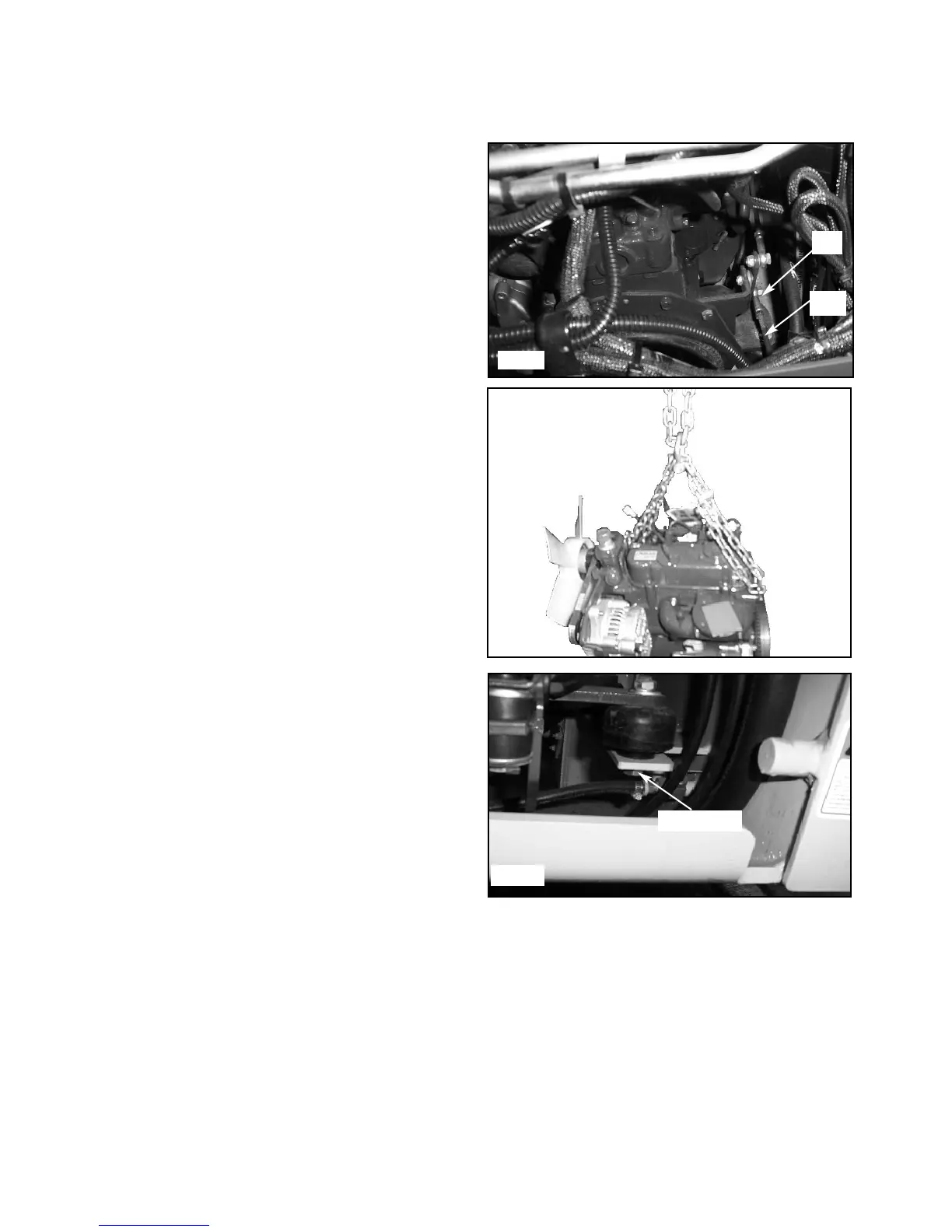

15 Attach a hoist chain to the engine through the lifting
lugs on the engine. Raise the hoist high enough to take
the slack out of the chain. (fig. C5654)
ENGINE REPLACEMENT 7.3
14 Disconnect the throtlle handle rod at the engine
swivel by removing nylok nut and bolt from the swivel
rod end. (fig. C5649) Tie the throttle rod off to one side
so that it will not interfer with engine installation.
Nut
16 Remove nuts and lockwashers from the bottom of
the 4 engine isolators. (fig. C5642)
C5642
Bottom nut
17 Slowly raise the engine until the isolators are clear
of the frame mounts. Carefully pull the engine back out
of the loader frame, the u-joint should slide off of the
pump spline, while checking for any hoses or wires that
may not have been disconnected. Also be careful not to
let the engine swing against the valve, as this could dam-
age valve components.
18 Set the engine down on a appropriate cradle that
will porperly and safely support it while working on it or
stripping the parts off to be used on a replacement.
Rod
C5654
7-15
