Disassembly / Repair 85
(cont’d)

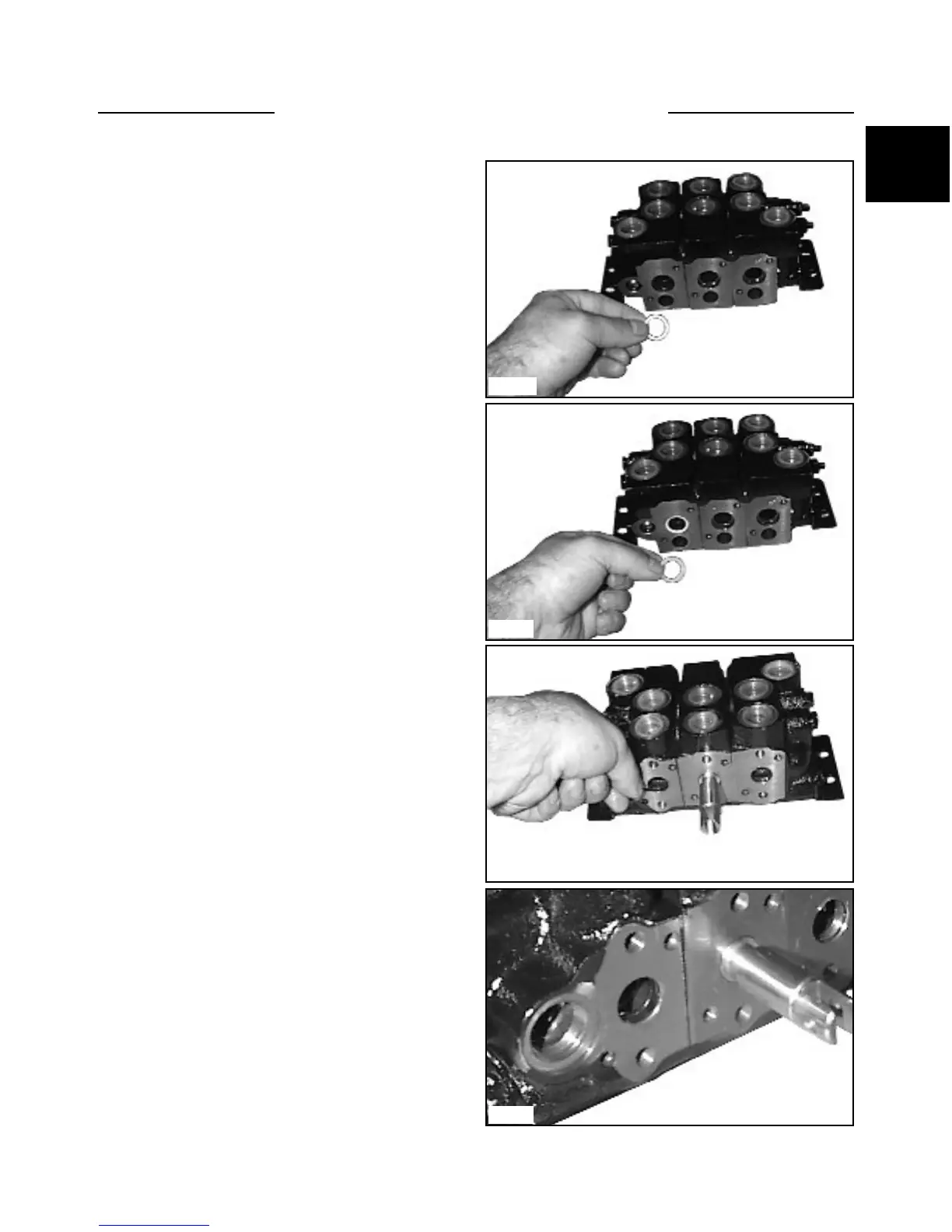

17. Install the O-ring spacer shim to the spool O-ring
seal. (fig. C2384).
CONTROL VALVE 1.3
19. The auxiliary section, section without lock adapter,
has an O-ring seal located in a machined groove in the
section housing. (fig. C2386) Remove the seal using a
pick tool and replace with new. Lubricate the O-ring with
system oil. Figure C2387 shows the seal installed.
18. Install the flat washer over the O-ring spacer. (fig.
C2385) The spring return side of the control valve is now
complete.
C2384
C2385
C2386
C2387
