1
1-20
Disassembly / Repair 85
(cont’d)
CONTROL VALVE 1.3
C2388
C2389
C2390
C2391
Separate sections
Mounting bracket
Flat spacer washer
Loosen section bolts

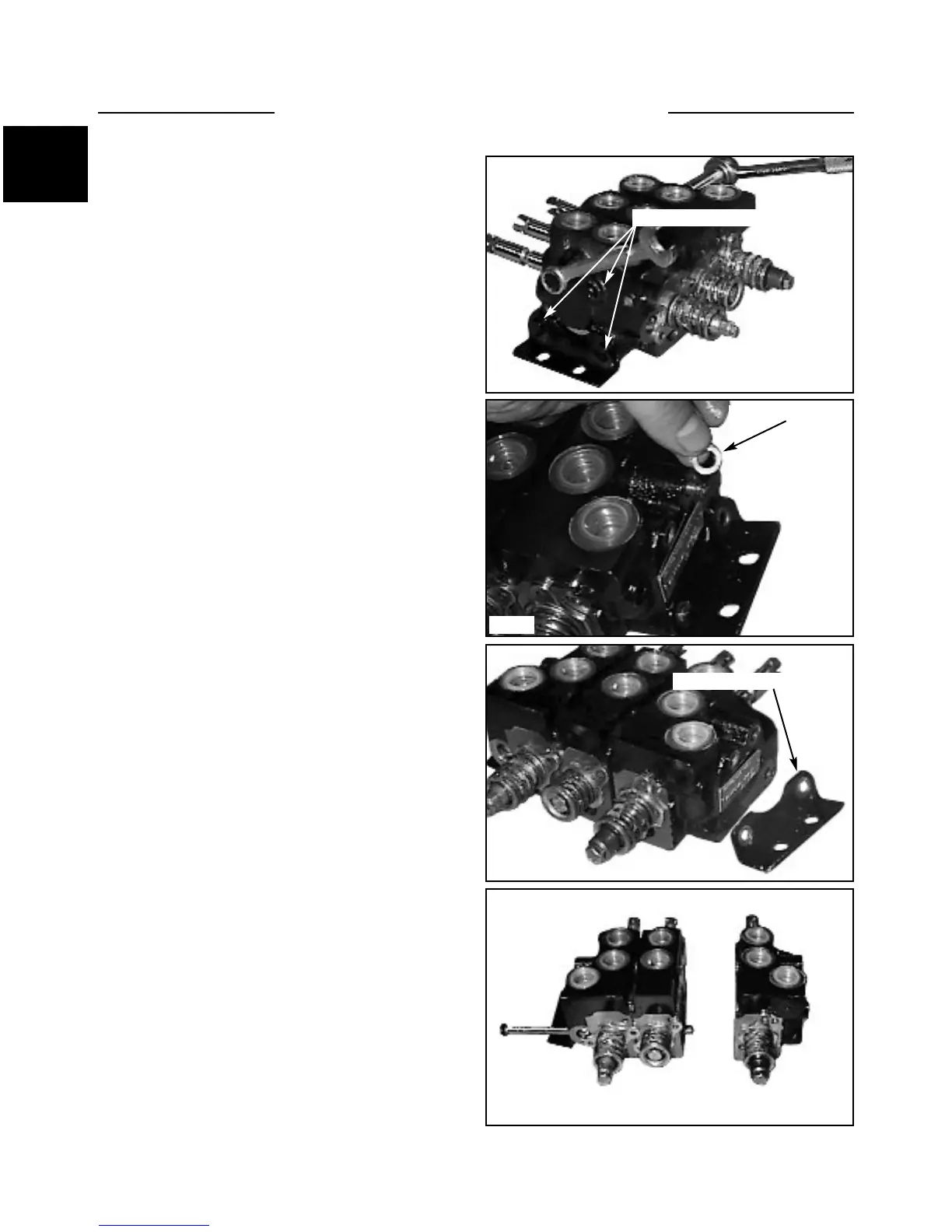

20. Section seals may be replaced without removing
spools and spring return mechanisms. Loosen the bolts
retaining the control valve sections together. (fig. C2388).
Upon assembly follow the torque specifications given
Section 8.
21. Note the flat spacer washers used on the upper bolts.
(fig. C2389)
22. Remove the bolts and mounting brackets. (fig.
C2390)
23. Separate the control valve sections. (fig. C2391)
