1
1-22
CONTROL VALVE 1.3
Disassembly / Repair 85 (con’t)

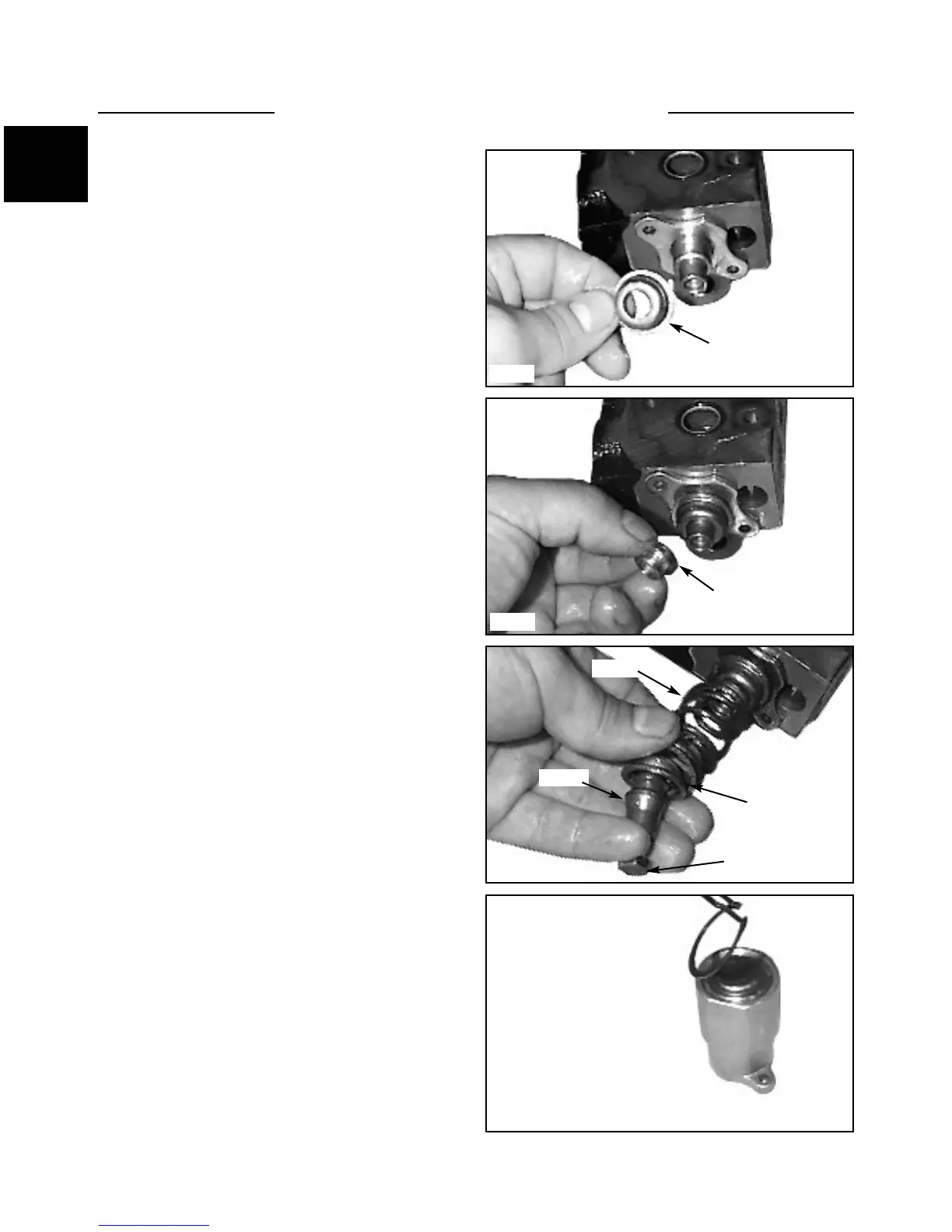

27. Replace the spring and detent mechanism in the
reverse order. (fig. C2396). Install spring bushing.
Lubricate the spring bushings with Castrol Spheerol
grease or equivalent.
28. Install sleeve bushing. (fig. C2397). Lubricate the
bushing with Castrol Spheerol grease or equivalent.
29. Install the spring, spring bushing and detent. (fig.
C2398) Install the bolt. Apply Loctite 242 (blue) to the
threads and tighten to specifications given in section 8.
C2396
C2398
C2397
C2404
30. To service the spring return mechanism in the cover,
remove the circlip retaining the cover(circlip may be
sealed with silicone). (fig. C2404).
Spring bushing
Sleeve bushing
Spring
Detent
Spring bushing
Bolt
Remove circlip
To Next Page
