CONTROL VALVE 1.3
Disassembly / Repair 85 (con’t)

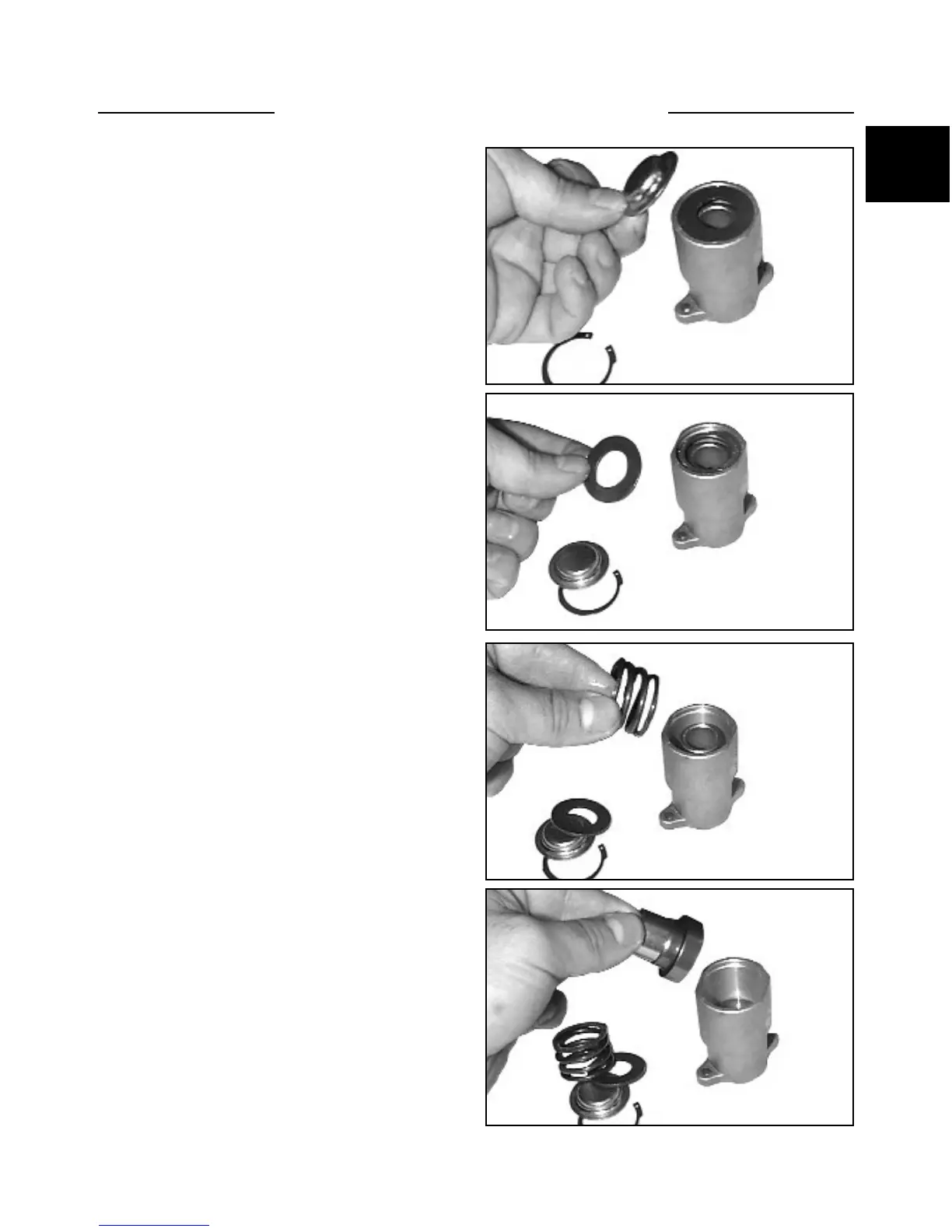

31. Remove the cover. (fig. C2405).
32. Remove the spring washer. (fig. C2406).
33. Remove the spring. (fig. (C2407). Inspect the spring
for broken or sacked coils. Replace the detent spring
return with a new kit if spring damage is apparent.
34. Remove the detent ball sleeve and cup. (fig. C2408).
C2405
C2408
C2407
C2406
Remove cover
Remove washer
Remove spring
Remove sleeve
and cup.
