2-30
2

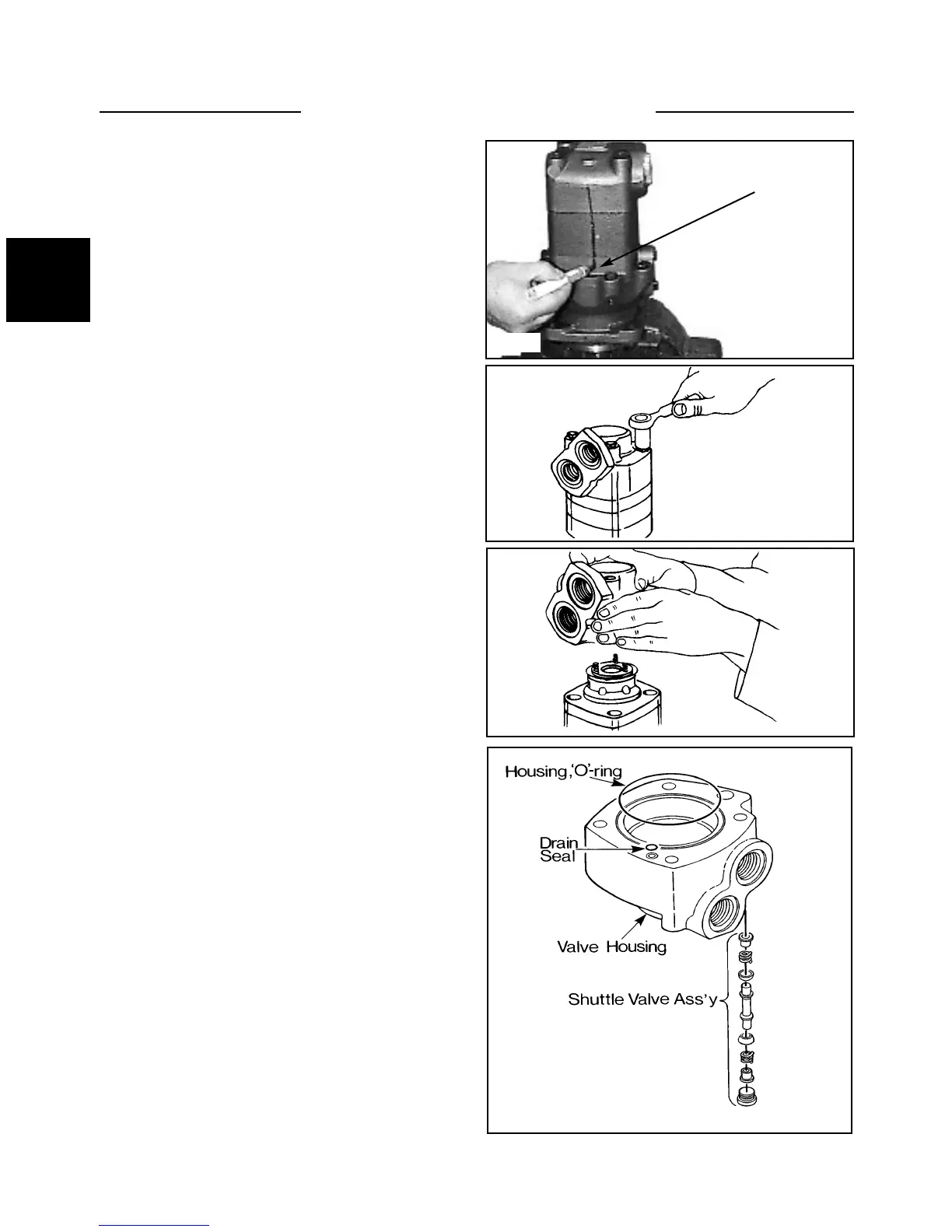

1 Place the drive motor in a vise with the output shaft
facing down. Clamp the motor to the vise, holding it by
the mounting flange area. Do not clamp the motor on the
housing as excessive pressure will cause distortion.
2 Mark a line across the various sections of the drive
motor to assist in reassembly. (fig. C2287)
5 Remove the following from the valve housing assem-
bly: (fig. C254)
1-Housing seal
1-Drain seal
1-Shuttle Valve Assembly
DRIVE MOTOR 2.12
Disassembly
4 Carefully remove valve housing straight up.. (fig.
C253)
3 Remove the four bolts from the valve housing.( fig.
C252)
C2287
C252
C253
C254
Mark sections
