DRIVE MOTOR 2.12

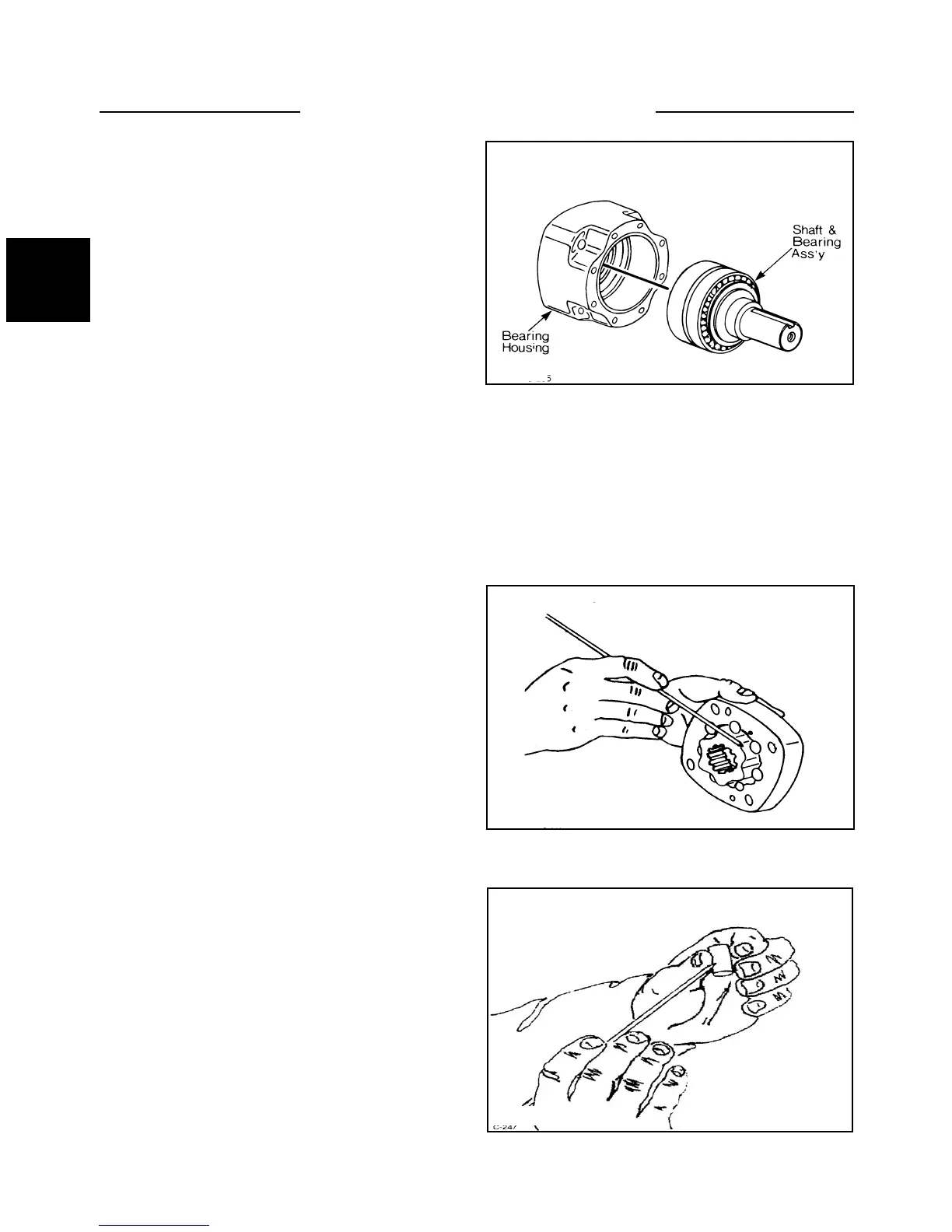

13 Remove the shaft and bearing assembly from the
housing (fig. C265). The shaft may have to be pressed
out.
Remove the shaft face seal from the bore of the bearing
housing. Be careful not to damage the bore of the bear-
ing housing.
Disassembly (cont’d)
Clean all parts in a suitable solvent and blow dry with air.
(Do not wipe dry.) Use caution when using compressed
air to dry parts.
DO NOT use emery cloth or sand paper or attempt to file
or grind motor parts. Replace any parts that are scratched
or have burrs that could cause leakage.
Inspection
C265
C248
C247
1 Inspect the geroler star (fig. C248) for wear or dam-
age.
2 Inspect the geroler rollers (fig. C247) for wear or
damage.
