CYLINDER BLOCK
CRANKCASE COVER/CRANKSHAFT/
PISTON DISASSEMBLY/ASSEMBLY
CRANKCASE COVER/CRANKSHAFT
DISASSEMBLY
Remove the following parts:
– Engine assembly (page 13-4)
– Cylinder head (page 14-22)
– Oil filter (page 3-6)
– Thermostat (page 11-5)
– ECM bracket (page 10-5)
– Power tilt relay case (page 10-6)
– Alternator (page 7-5)
– Flywheel (page 15-4)
– EOP switch (High pressure side) (page 5-103)
– EOP switch (Low pressure side) (page 5-104)
– EBT sensor (page 5-105)
– Knock sensor (page 5-104)
– Oil filler extension (page 12-5)
– Oil level gauge cover (page 12-5)
– Neutral switch (page 9-6)
– Shift link bracket (page 20-7)
– Shift arm (page 20-9)

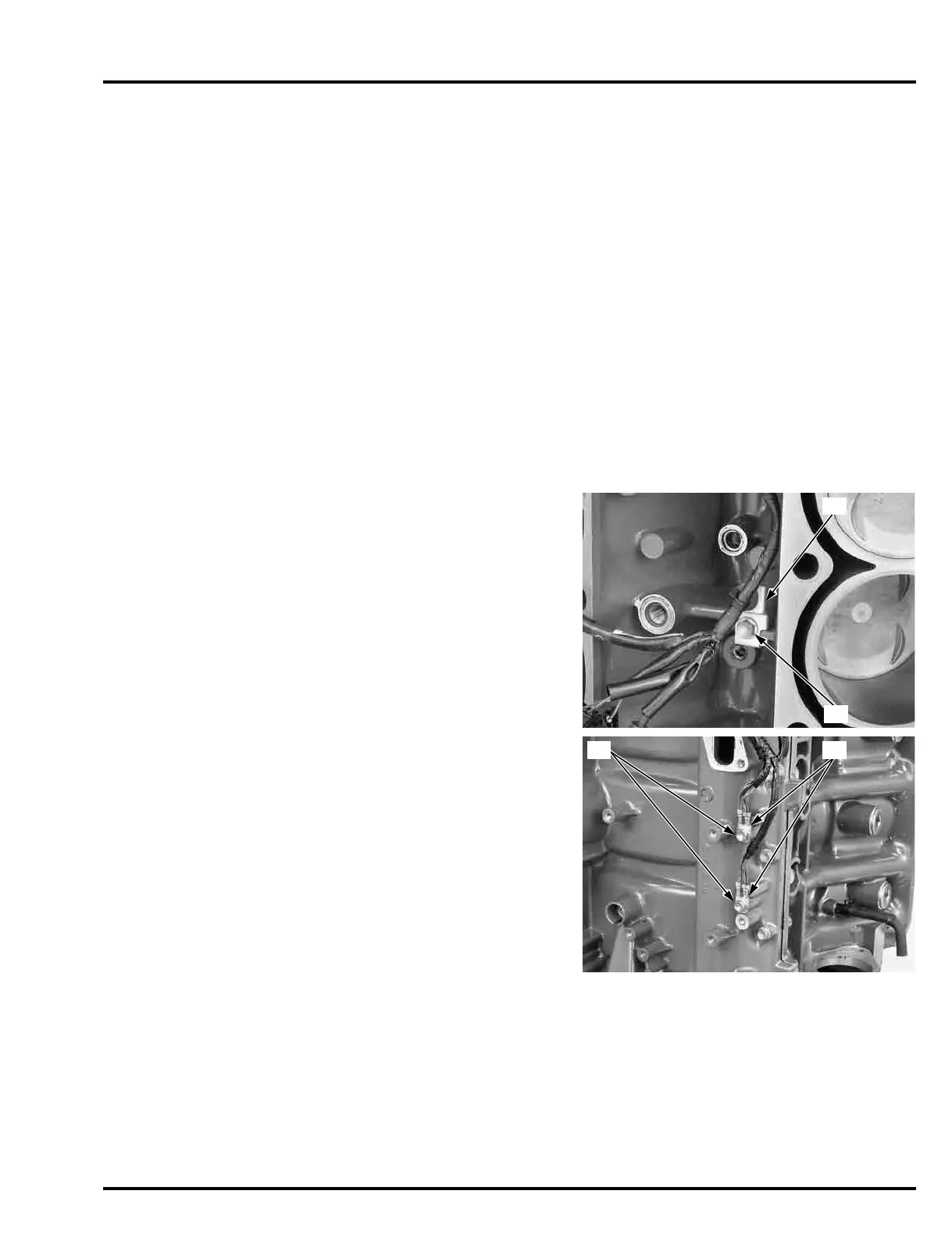

Remove the bolt (6 x 14 mm) [1] and harness clamp [2].
Remove the two bolts (6 x 12 mm) [1] and two main
wire harness ground terminals [2].
