Surveying with the Receiver
P/N 7010-0681
3-11
8. Click the Positioning tab and set the Elevation mask parameter to
15 (Figure 3-7), then click Apply.

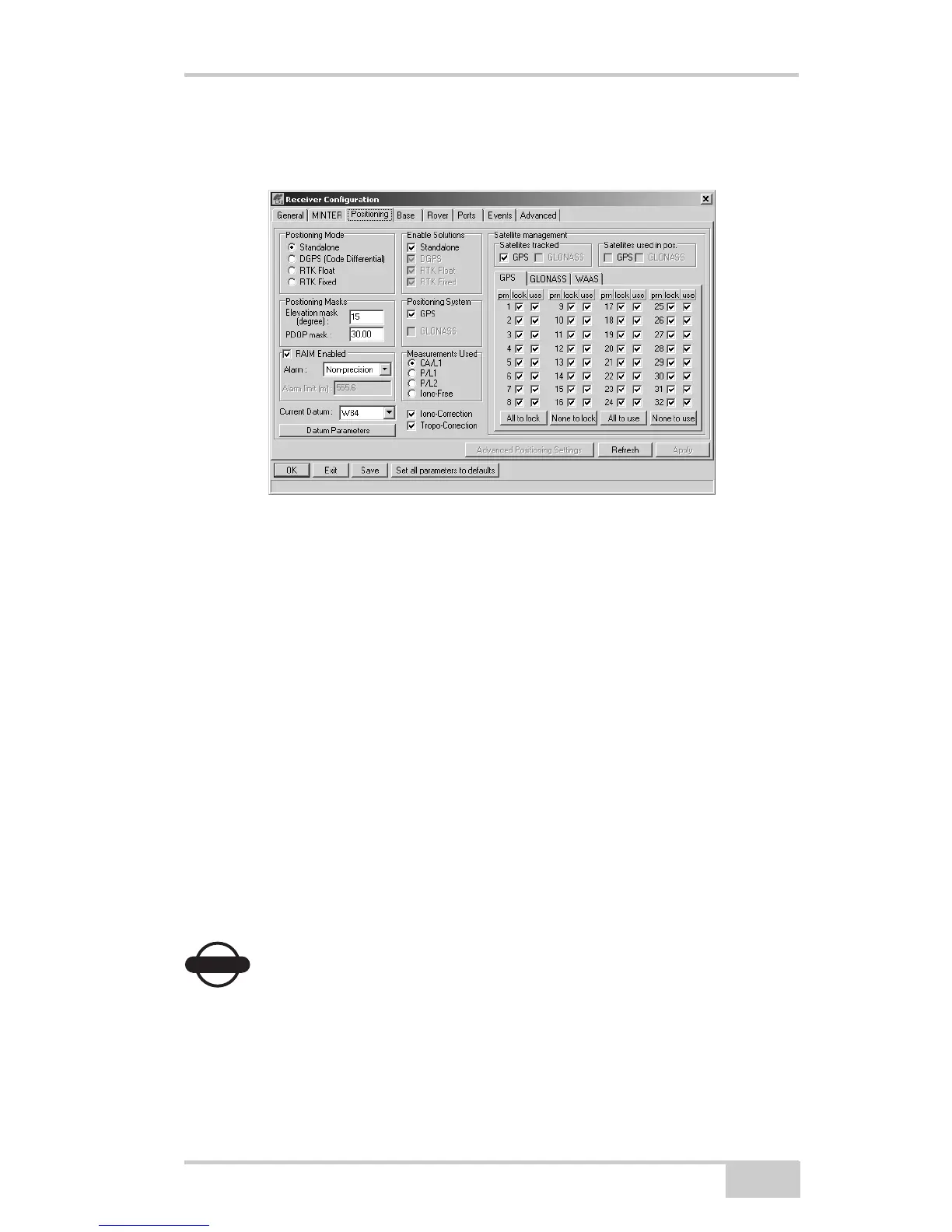

Figure 3-7. Configure Receiver Positioning – Elevation Mask
9. Select the Base tab, set the following parameters (Figure 3-8 on
page 3-12), and click Apply:
• GPS/GLO at one time – enable
• Antenna position – enter Lat, Lon, and Alt values. Do one of
the following:
– If known, type in the values.
– Enable Averaged and enter the Averaged Span in
seconds, then click Apply. Click ToolsReset receiver
and wait until the specified interval (span) completes.
Examine the Base coordinates on the Base tab, they
should correspond to the coordinates obtained from the
average. Click Refresh if the coordinates are zeros.
– Click Get from receiver.
NOTICE
NOTICE
The reference geodetic coordinates specified on this tab
relate to the antenna L1 phase center.
