Topcon MR-2 User Manual

Configure the Receiver
28
P/N: 1011907-01
Configuration

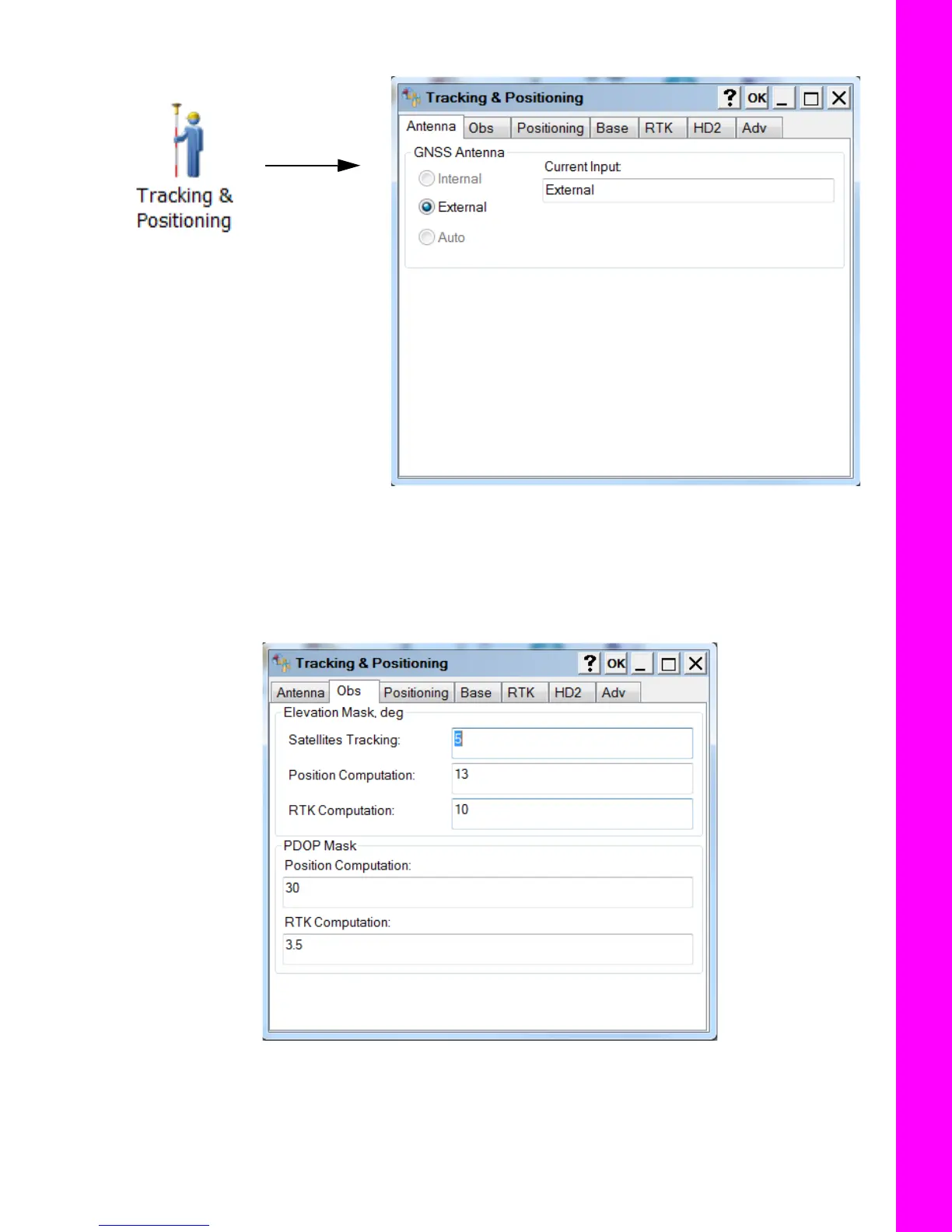

Figure 27: Set Antenna Usage
4. Click the Obs tab, and set the following parameters (Figure 28):
• Elevation Mask, deg : Set Satellites Tracking to 5 degrees.
• Elevation Mask, deg : Set Position Computation to 13 degrees.
• PDOP Mask : Set Position Computation to 30 degrees.
Figure 28: Configure Receiver Positioning – Elevation Mask
