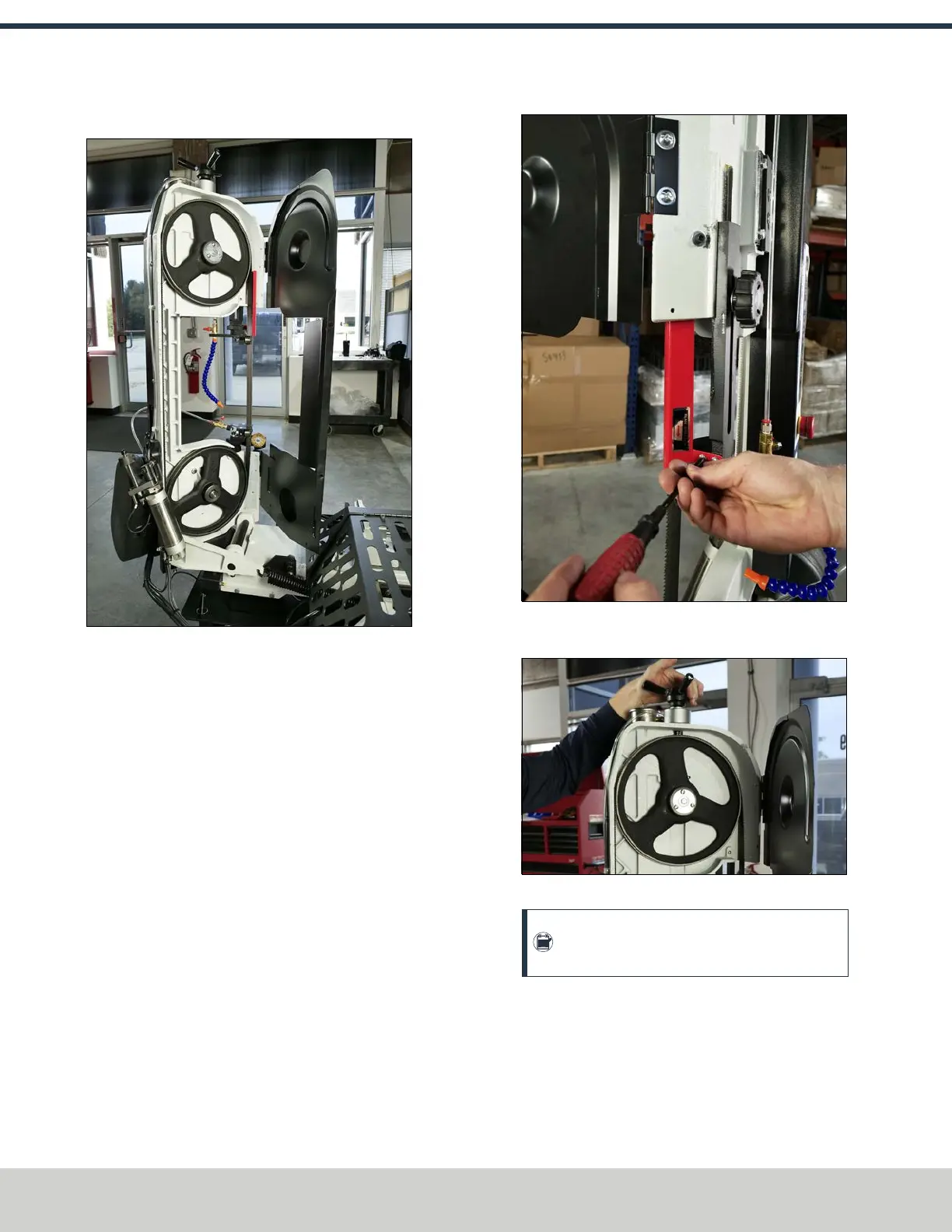

10. Open the blade cover, as shown in the following image.
Figure 6-7: Blade cover opened.
11. Remove the two screws securing the blade guard with a
Phillips screwdriver. Set the screws and the guard aside.
Figure 6-8: Removing the blade guard.
12. Identify the tensioner on the top of the saw head.
Figure 6-9: Tensioner on top of the saw head.
Note: Only use the inner circle on the tensioner
for 3/4"blades.
©Tormach® 2024
Specifications subject to change without notice.
Page 32 UM10825: AF50+ Autofeed Bandsaw Operator's Manual (Version 0324A)
For the most recent version, see tormach.com/support
6: BASIC OPERATIONS
