TestingtheLiftCircuit–LiftCylinderInternalLeakage

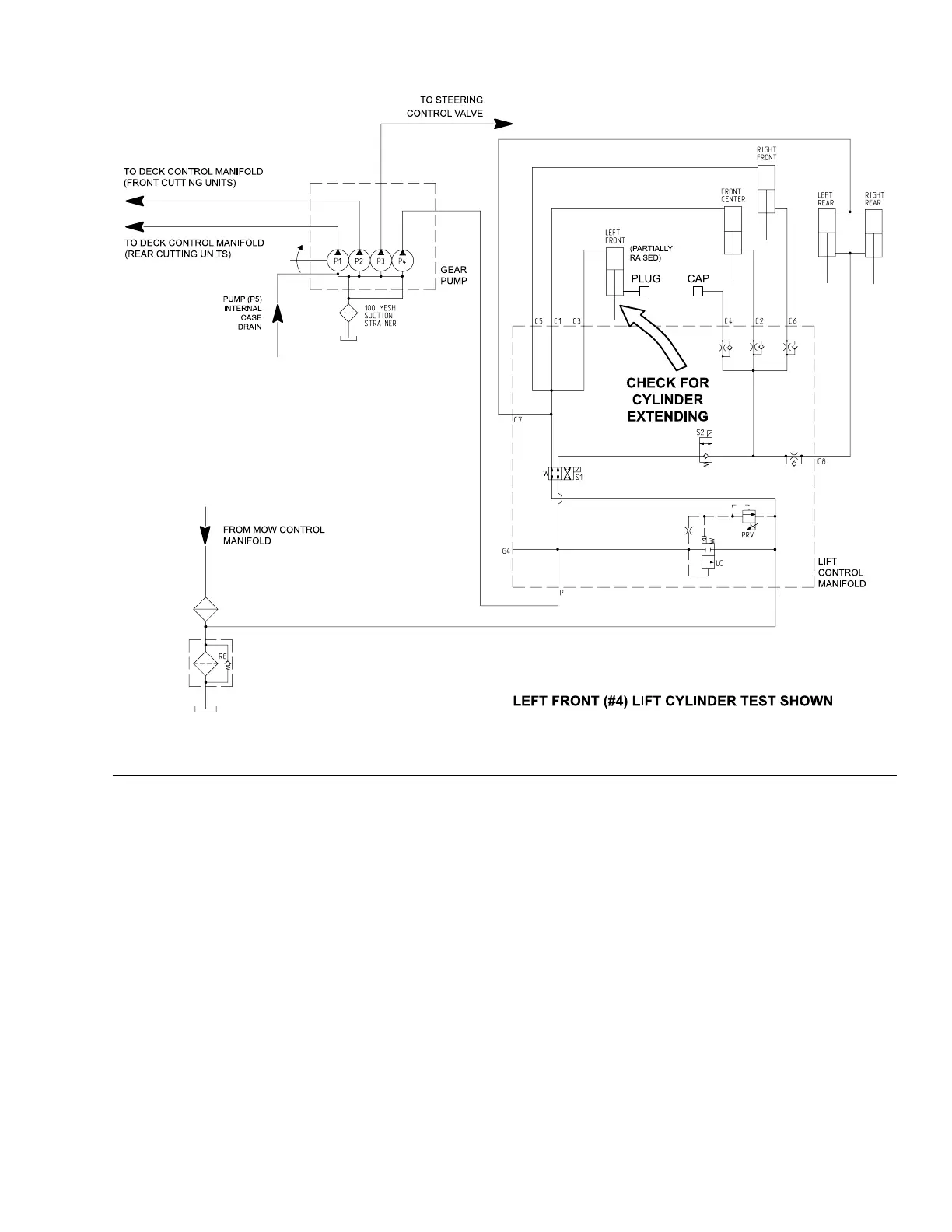

Figure75
Performaliftcylinderinternalleakagetestifyouidentifyacuttingdeckraiseand
lowerproblem.Thistestdeterminesiftheliftcylinderbeingtestedisdamaged.
Theliftcylindersmustbetestedindividually.
Note:Theraise/lowercircuitoperationcanbeaffectedbytheliftcylinder
binding,extraweightonthecuttingdeck,and/orbindingoftheliftcomponents.
Ensurethattheseitemsarecheckedbeforecontinuingwiththeliftcylinder
internalleakagetest.
Groundsmaster
®
4300-D
Page4–81
HydraulicSystem:TestingtheHydraulicSystem
16226SLRevC
