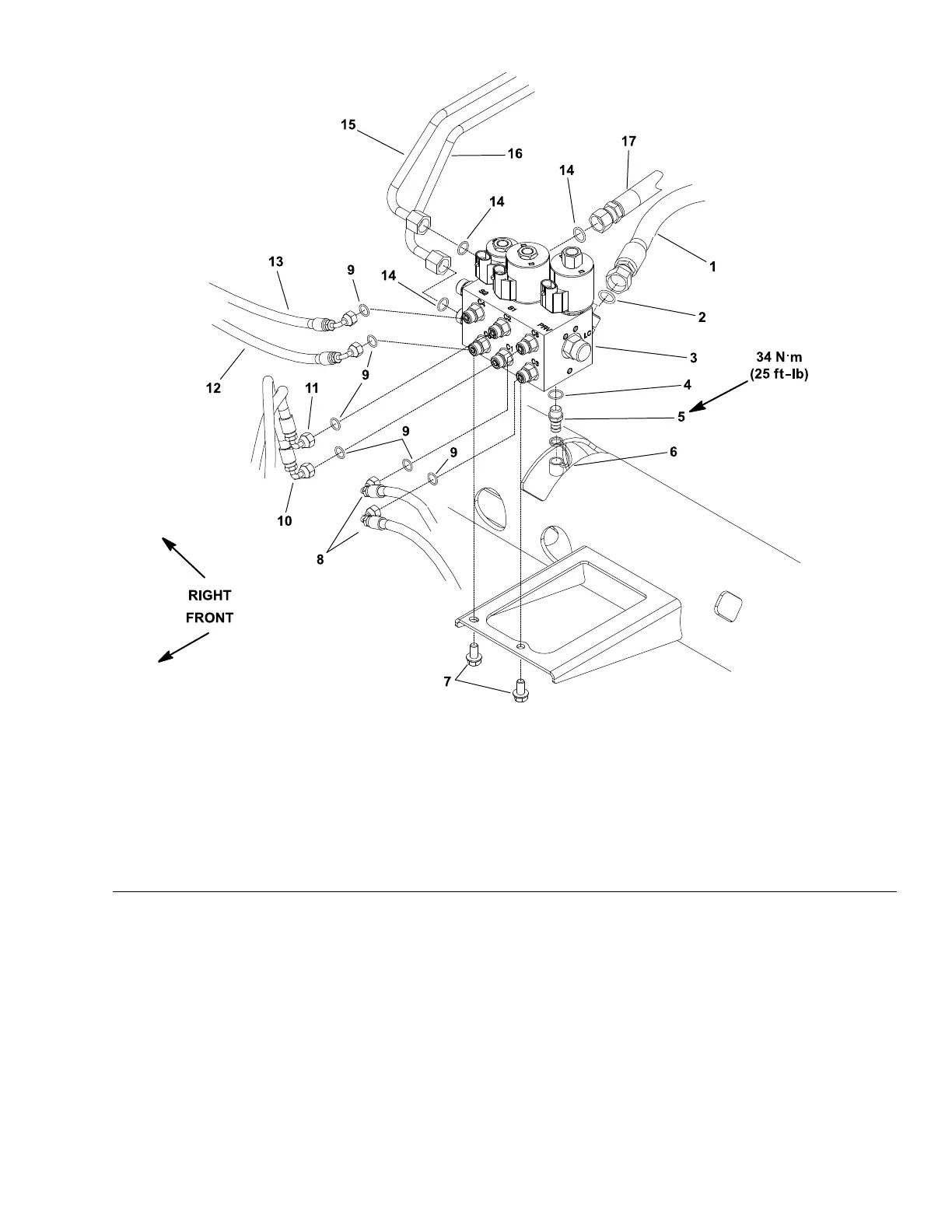

LiftControlManifold

g186188

Figure108

1.Hydraulichose

7.Flange-headscrew(2each)

13.Hydraulichose

2.O-ring

8.Hydraulichose

14.O-ring

3.Liftcontrolmanifold9.O-ring

15.Hydraulictube

4.O-ring

10.Hydraulichose16.Hydraulictube

5.Diagnostictting

11.Hydraulichose17.Hydraulichose

6.Dustcap12.Hydraulichose

Note:Fortestingthesolenoidvalvecoils;refertoTestingtheHydraulicSolenoid

ValveCoils(page5–74).

RemovingtheLiftControlManifold

1.Parkthemachineonalevelsurface,lowerthecuttingdecks,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.ReadtheGeneralPrecautionsforRemovingandInstallingtheHydraulic

SystemComponents(page4–87).

3.Locatethehydraulicliftcontrolmanifoldthatisattachedtotheframebracket

underthefrontplatform.

Groundsmaster

4300-D

Page4–139

HydraulicSystem:ServiceandRepairs

16226SLRevC
