ServiceandRepairs
Note:Forenginecomponentrepairinformation,refertotheYanmarEngine
ServiceManualorTroubleshootingManual.

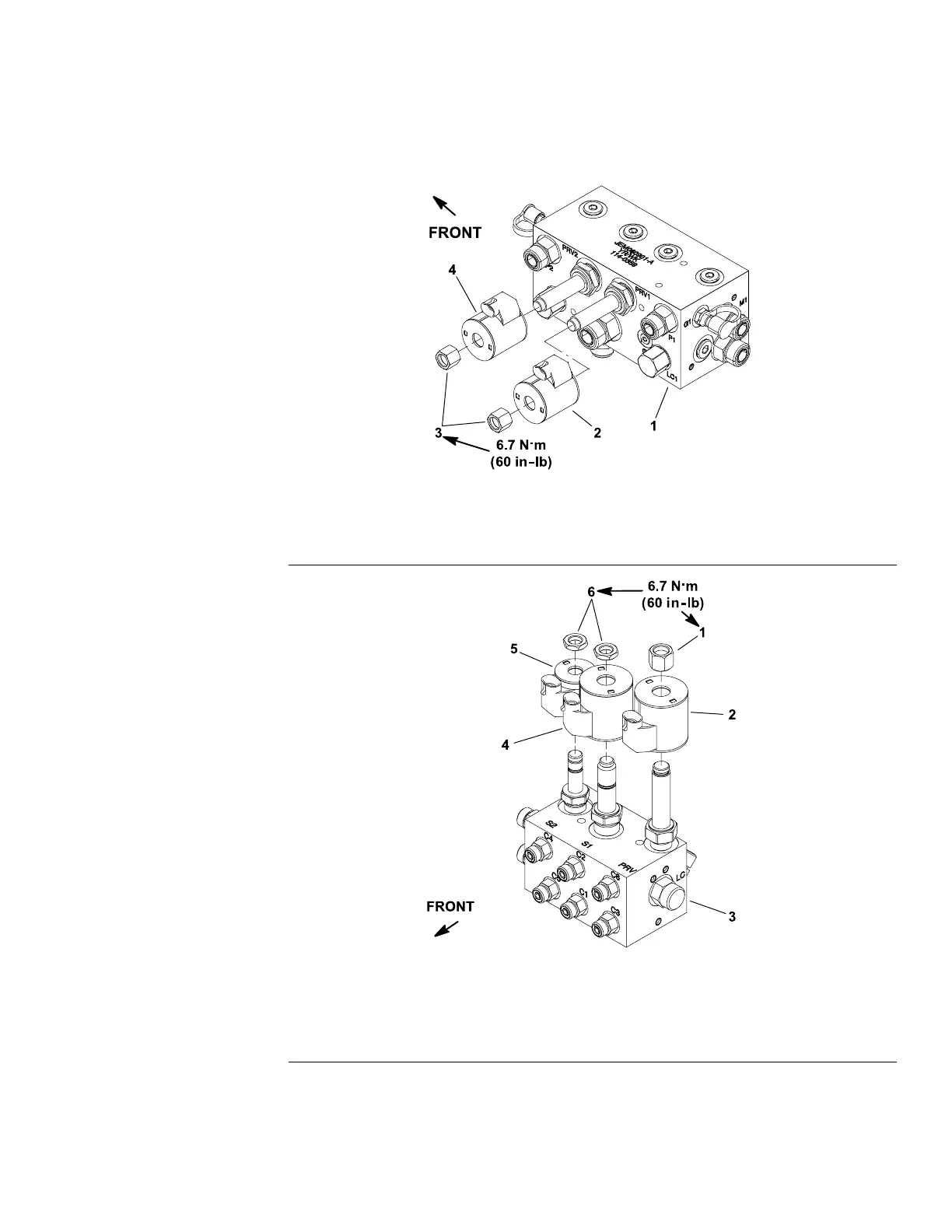

HydraulicSolenoidValveCoils
g191011
Figure198
1.Deckcontrolmanifold
3.Nut
2.SolenoidcoilPRV14.SolenoidcoilPRV2
g191010
Figure199
1.Nut
4.SolenoidcoilS1
2.SolenoidcoilPRV5.SolenoidcoilS2
3.Liftcontrolmanifold
6.Nut
Youcanreplaceahydraulicsolenoidvalvecoilonthedeckcontrolmanifold
(Figure198)orliftcontrolmanifold(Figure199)withoutopeningthehydraulic
system.
Groundsmaster
®
4300-D
Page5–91
ElectricalSystem:ServiceandRepairs
16226SLRevC
