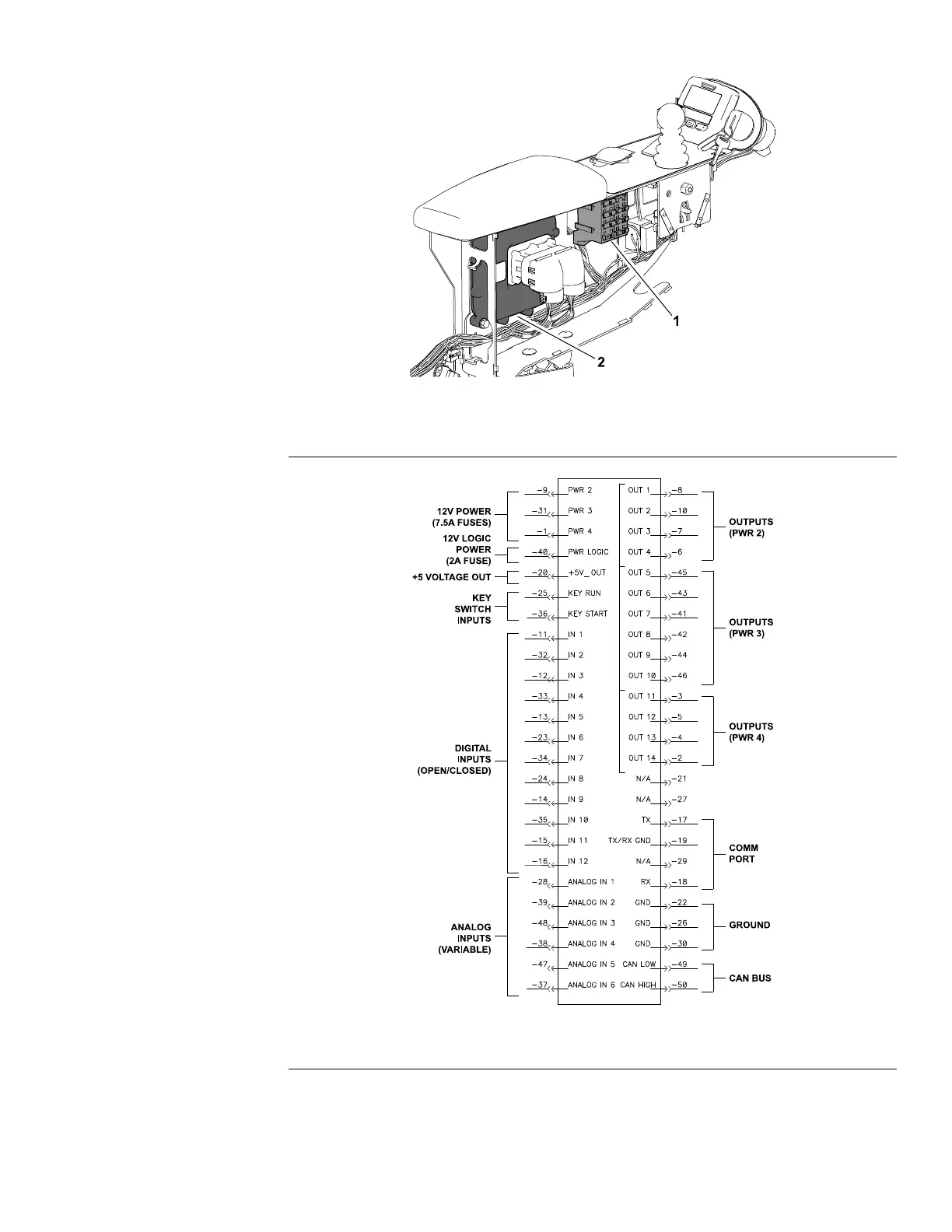

ToroElectronicController(TEC)
g191008
Figure159
1.Fuseblock
2.TEC(T oroElectronicController)
g190804
Figure160
TheGroundsmaster4300-DmachineusesaT oroElectronicController(TEC)to
monitortheconditionofvariousswitches(inputs)andthendirectpoweroutput
toallowcertainmachinefunctions.Thecontrollerislocatedbehindthecontrol
Groundsmaster
®
4300-D
Page5–49
ElectricalSystem:TestingtheElectricalComponents
16226SLRevC
