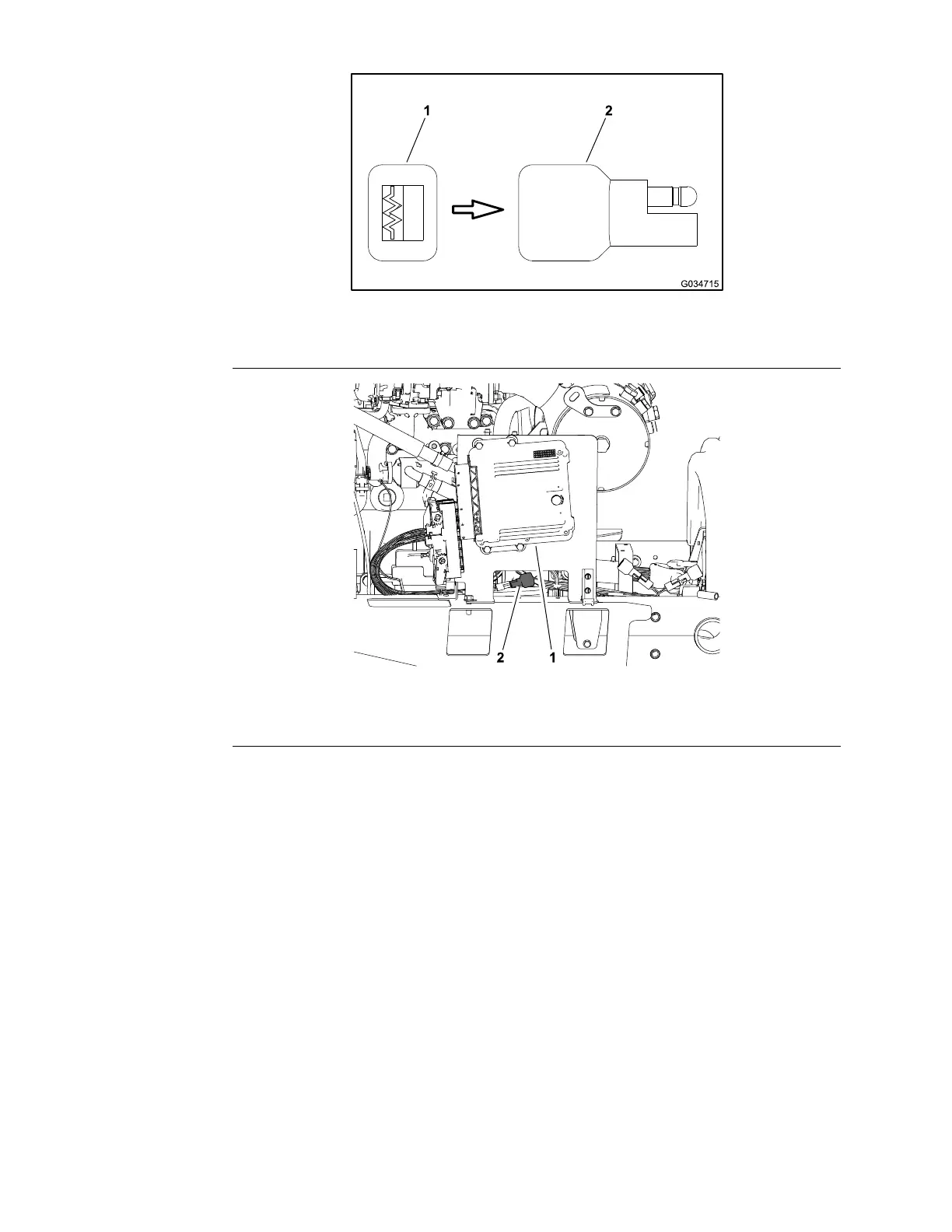

ResistorAssembly
g034715
Figure188
1.Endoftheresistorbody
2.Resistorassembly
g190821
Figure189
1.EngineECU
2.75ohmresistor
A75ohmresistor(Figure189)isnecessaryforproperkeyswitchoperation
onallGroundsmaster4300-Dmachines.Theresistorplugsintotheengine
wireharnessneartheengineECU;refertotheEngineWireHarness
Drawing/DiagraminAppendixA—FoldoutDrawings.
Theresistorassemblycanbeidentiedbyitsgraycolorandresistorsymbolon
theendoftheresistorassemblybody.
TestingtheResistorAssembly
Theresistorcanbetestedusingadigitalmultimeter(ohmssetting).
Note:Theresistanceacrosstheresistorterminalsshouldbe75ohms.
ElectricalSystem:TestingtheElectricalComponents
Page5–82
Groundsmaster
®
4300-D
16226SLRevC
