Toro Groundsmaster 4300-D Service Manual

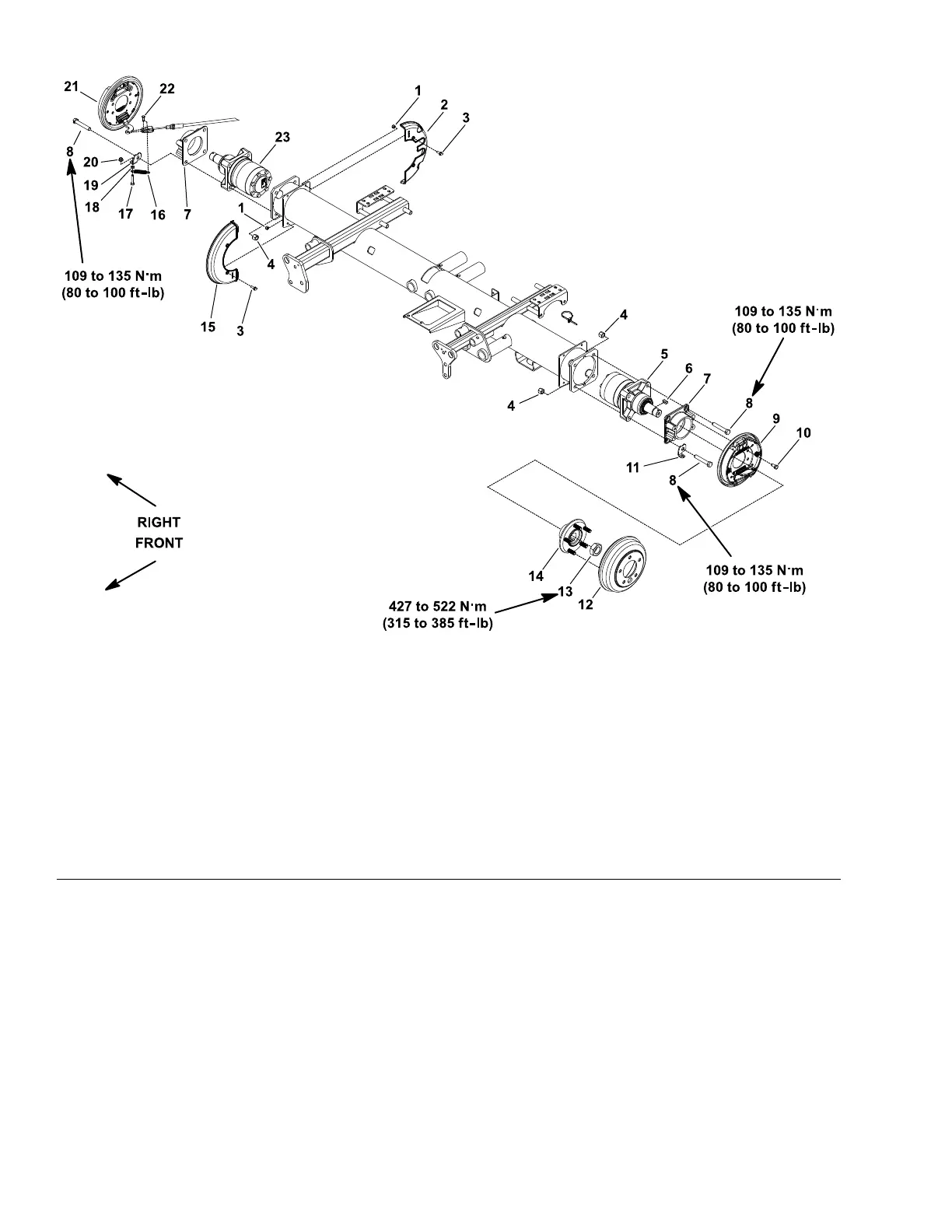

FrontWheelMotors
g185925
Figure91
1.Locknut(4eachperwheelshield)9.Leftbrakeassembly17.Bolt(2each)
2.Wheelshield(rightrear)10.Bolt(4eachperbrakeassembly)18.Jamnut(2each)
3.Flange-headscrew(4eachper
wheelshield)
11.Leftspringclip
19.Rightspringclip
4.Locknut(4eachperwheelmotor)12.Brakedrum(2each)20.Flangenut(2each)
5.Leftwheelmotor13.Locknut(2each)
21.Rightbrakeassembly
6.Squarekey(2each)
14.Wheelhub
22.Clevispin(2each)
7.Brakeadapter(2each)15.Wheelshield(rightfront)
23.Rightwheelmotor
8.Bolt(4eachperwheelmotor)16.Brakereturnspring(2each)
HydraulicSystem:ServiceandRepairs
Page4–110
Groundsmaster
®
4300-D
16226SLRevC
