Toro Groundsmaster 4300-D Service Manual

ServicingtheSteeringControlValve

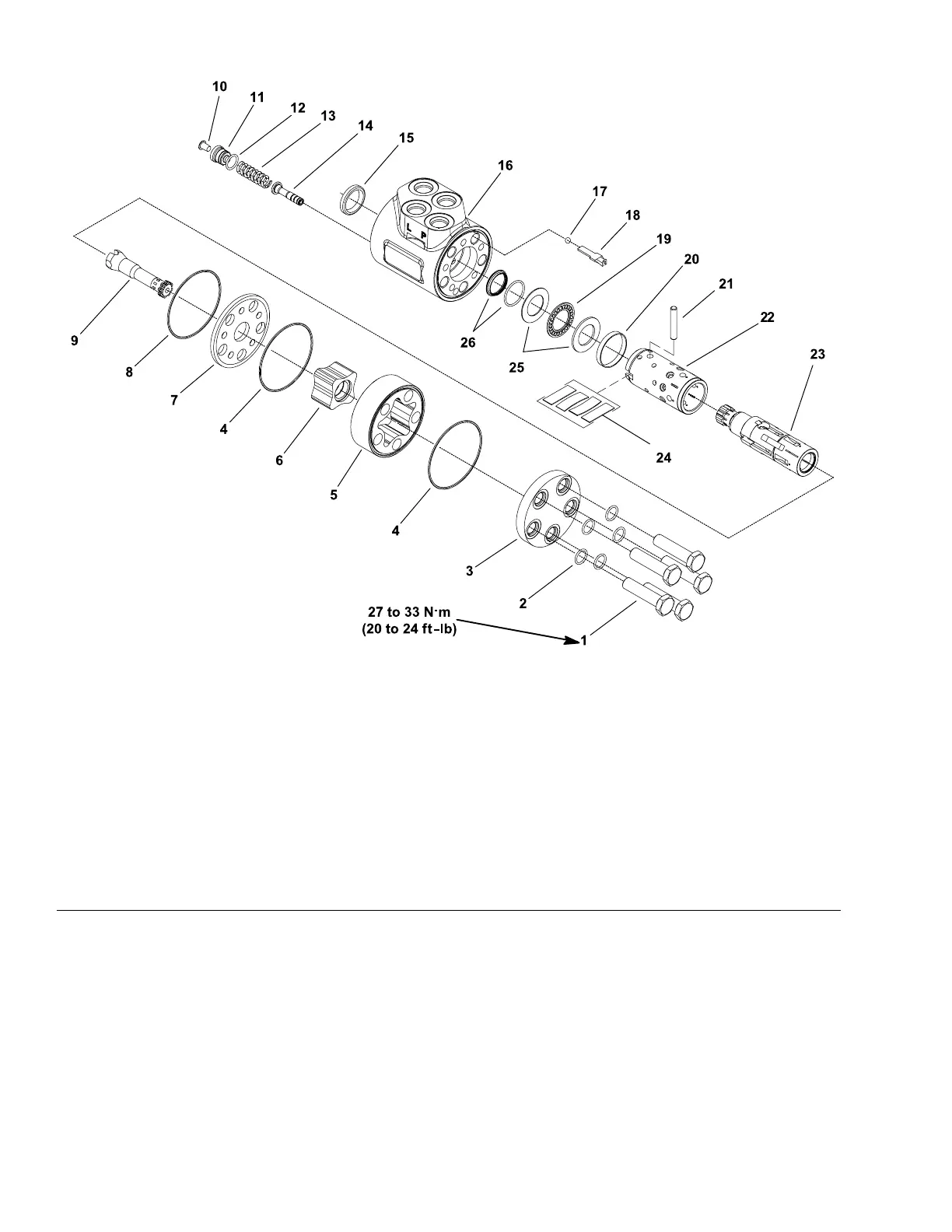

g193310
Figure118
1.Screw(5each)
10.Plug19.Bearing
2.O-ring(5each)
11.Plug20.Ring
3.Endcover
12.O-ring21.Crosspin
4.O-ring13.Spring
22.Sleeve
5.Outergearwheel14.Reliefvalve23.Spool
6.Innergearwheel15.Dustsealring
24.Springset
7.Distributorplate16.Housing25.Thrustwasher
8.O-ring17.Checkball26.Shaftseal
9.Cardanshaft
18.Ballstop
Note:Forthesteeringcontrolvalverepairprocedures,refertotheSauer-Danfoss
SteeringUnitTypeOSPMServiceManualattheendofthischapter.
HydraulicSystem:ServiceandRepairs
Page4–154
Groundsmaster
®
4300-D
16226SLRevC
