Adjustments
TractionNeutralSwitch
g190164

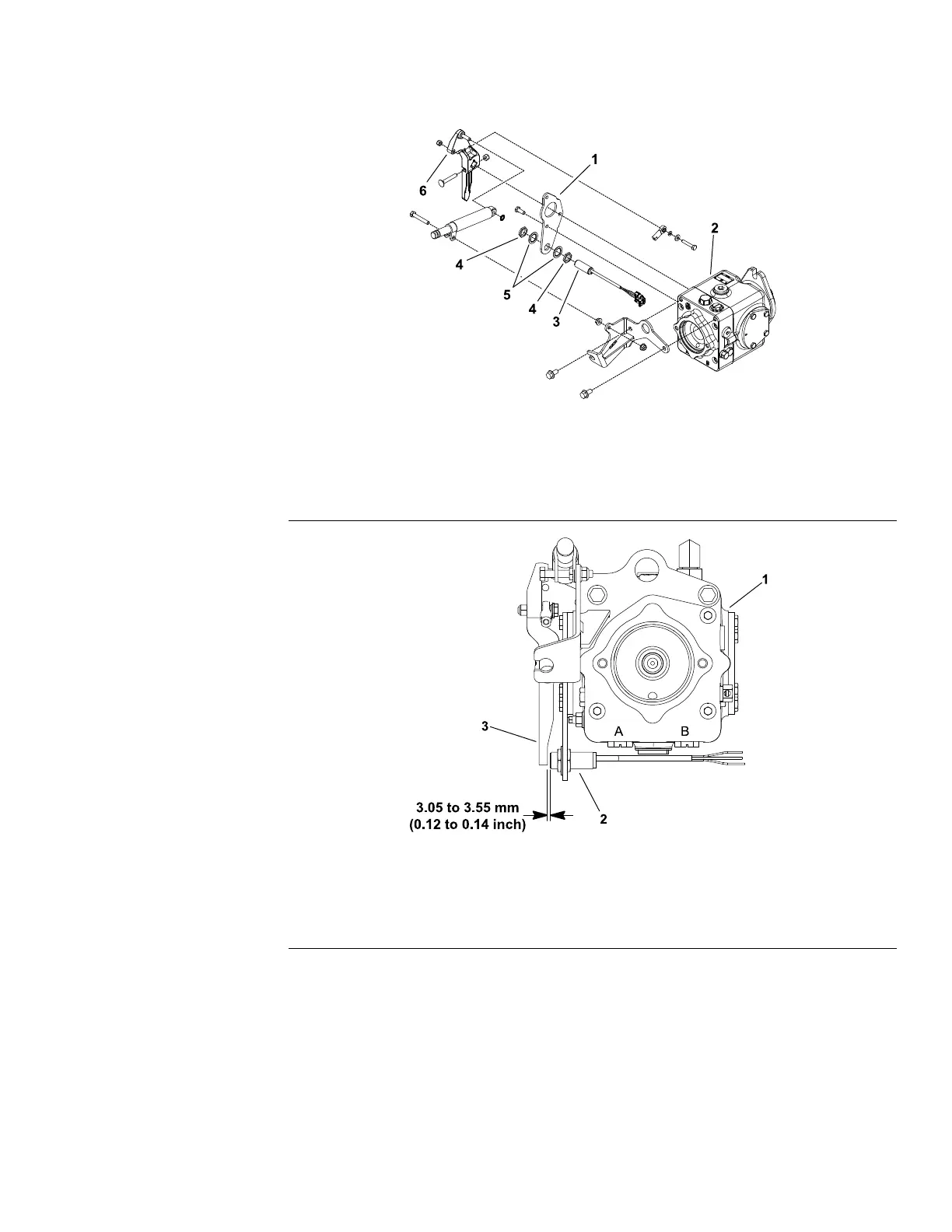

Figure150
1.Pumpplate
4.Jamnut(2each)
2.Tractionpump
5.Lockwasher(2each)
3.Tractionneutralswitch6.Pumplever
g190165
Figure151
1.Tractionpump3.Pumplever
2.Tractionneutralswitch
Thetractionneutralswitchisanormallyopenproximityswitchthatcloseswhen
thetractionpedalisintheNEUTRALposition.Theswitchmountstoapumpplate
onthetractionpump(Figure150).Thesensingplateforthetractionneutral
switchisthepumpleverthatissecuredtothetractionpump.
AdjustingtheTractionNeutralSwitch
1.Beforeadjustingthetractionneutralswitch,checkandadjustthetraction
systemneutralposition;refertotheTractionUnitOperator’sManual.
Groundsmaster
®
4300-D
Page5–41
ElectricalSystem:Adjustments
16226SLRevC
