Toshiba TECRA A9 Series Maintenace Manual

4.15 Cover assembly and Base assembly 4 Replacement Procedures
4. Turn over the computer and open the display.
5. Disconnect the LCD cable, speaker cable and fingerprint sensor cable from the
connector CN5000, CN6170 and CN 9550 on the system board.
6. Remove the following screws.
• M2.5×6B FLAT HEAD screw ×3
7. Separate the cover assembly and base assembly while releasing the latches.
Fingerprint sensor cable
(Connected to CN9550)
LCD cable
(Connected to CN5000)
Speaker cable
(Connected to CN6170)
M2.5
×
6B FLAT HEAD
M2.5×6B FLAT HEAD
Cover assembly
Base assembly

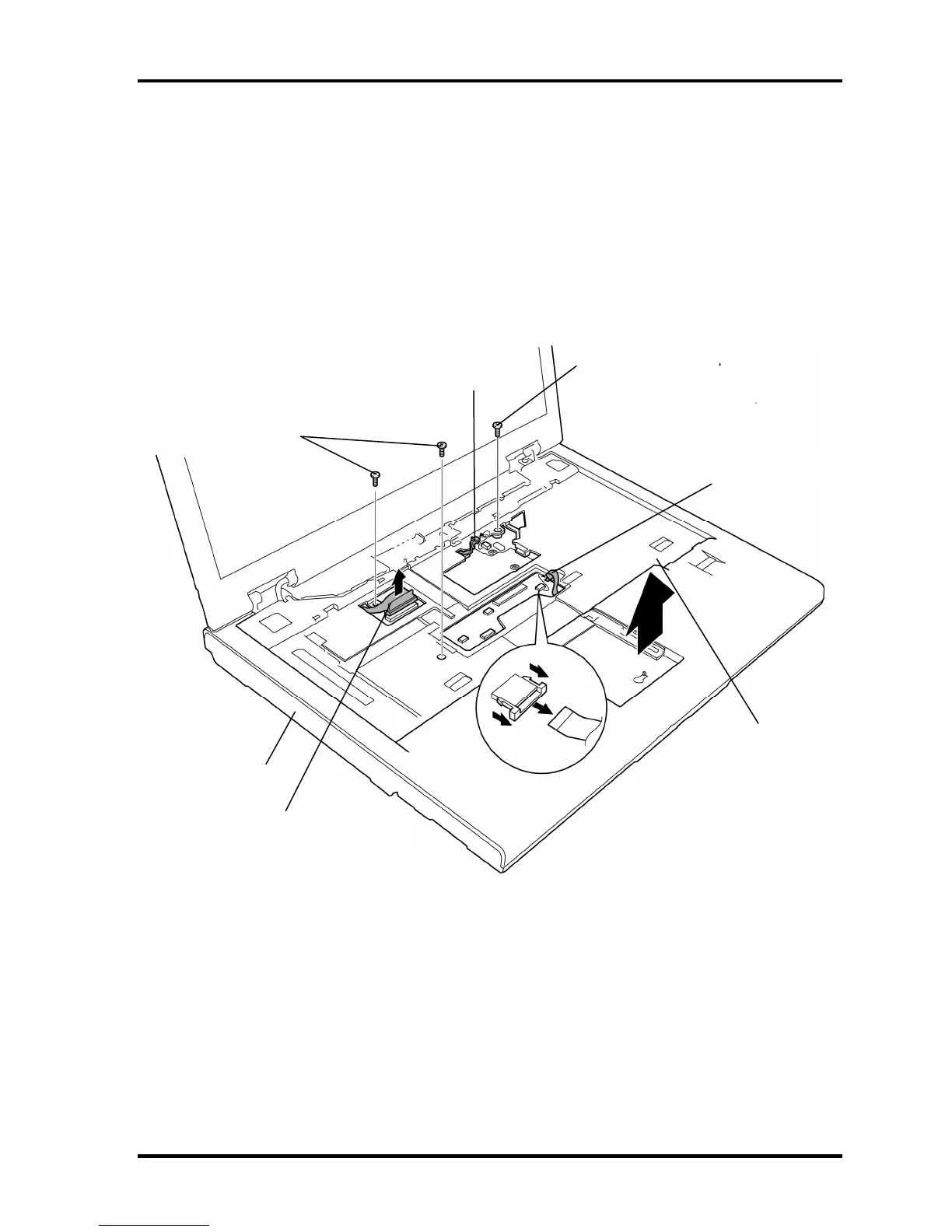

Figure 4-25 Removing the cover assembly and base assembly (2)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-41

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
