4.20 System board 4 Replacement Procedures
Installing the System board
To install the system board, follow the steps below and refer to Figure 4-32 to 4-34.

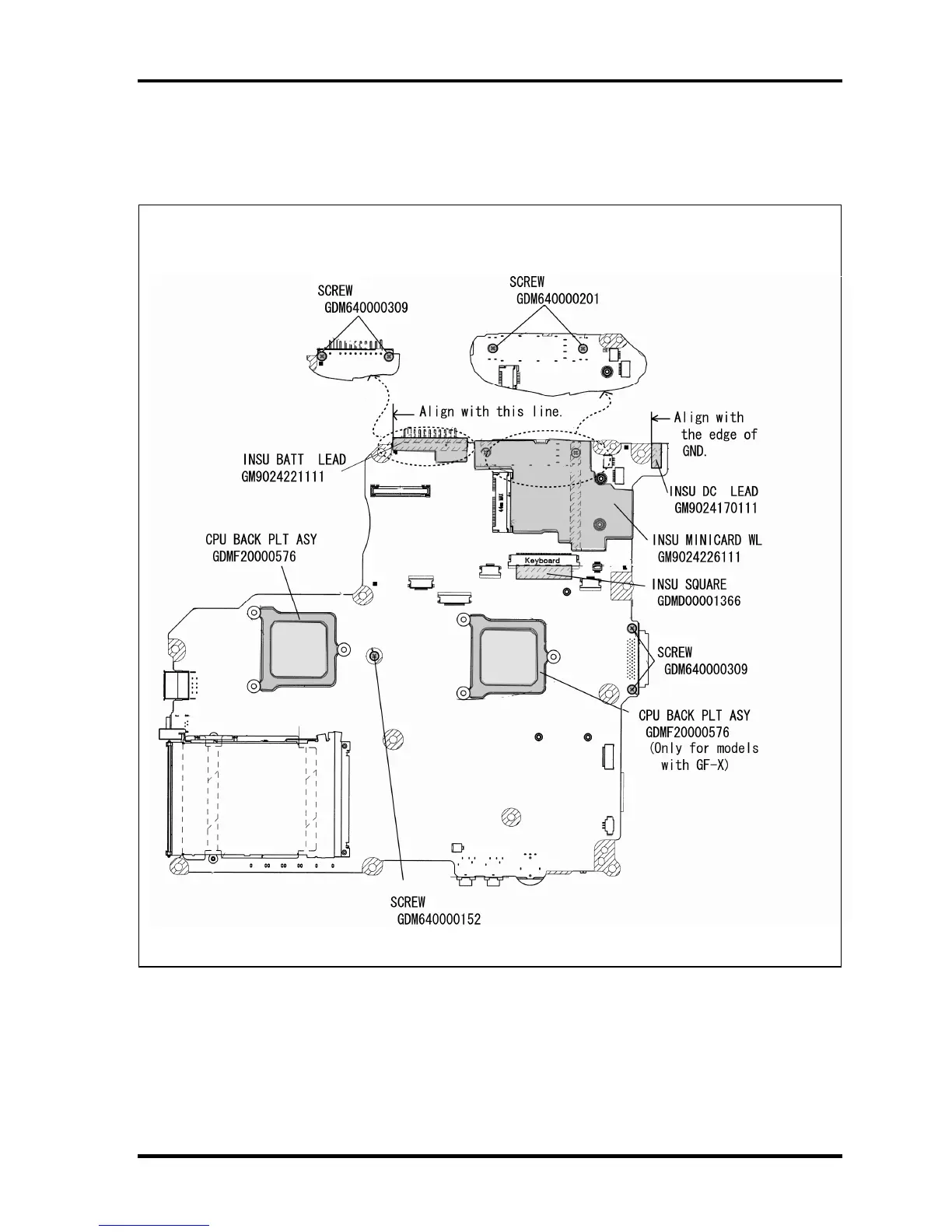

NOTE: When installing a new system board (front), make sure that the insulators, screws
and CPU back plate assemblies are placed as shown in the following figure.
(Front of the system board)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-57
