4 Replacement Procedures 4.20 System board

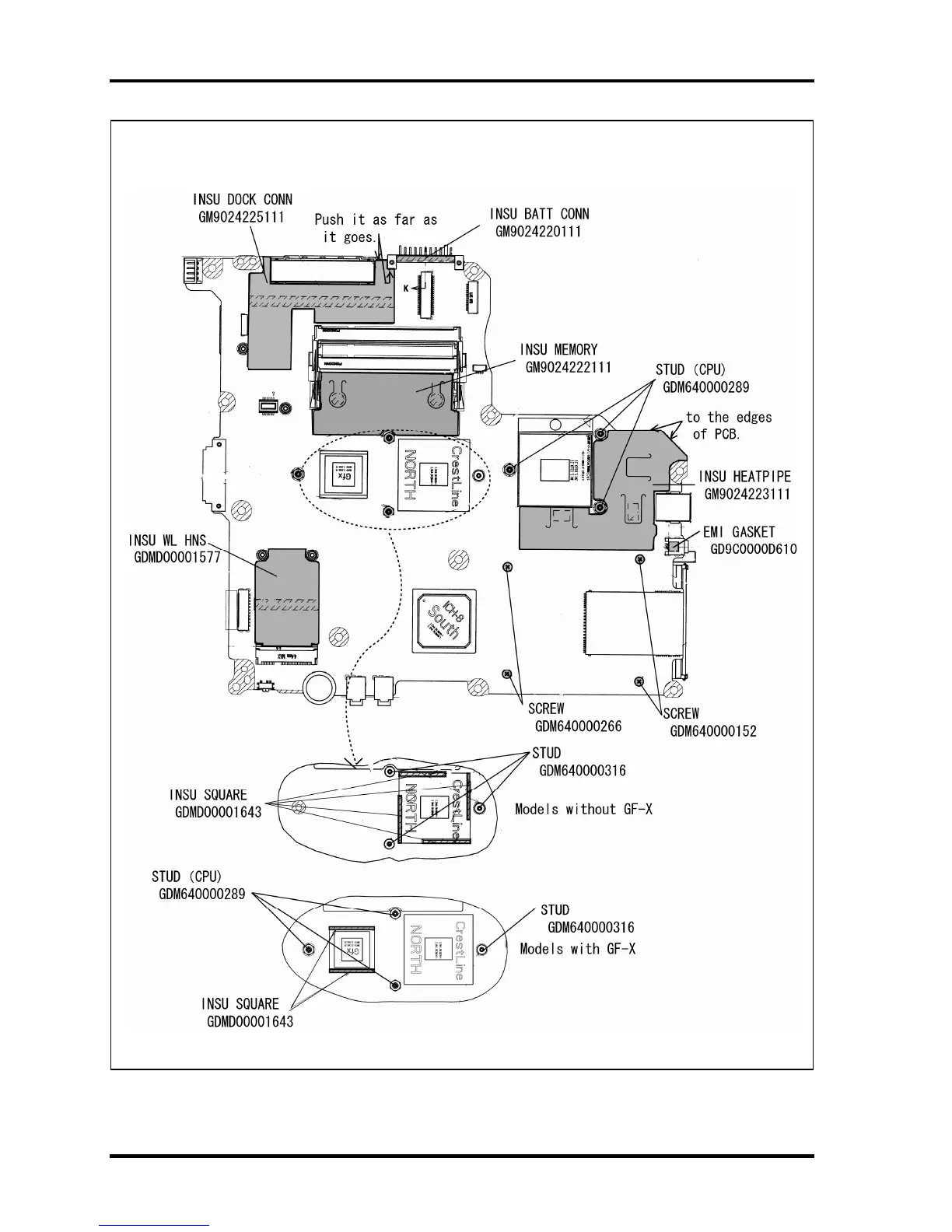

NOTE: When installing a new system board (back), make sure that the insulators, gasket,
screws and studs are placed as shown in the following figure.
(Back of the system board)
4-58 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
